13AP91RT848 (LX 468) - Toro Lawn Tractor (2010) TRANSMISSION ASSEMBLY NO. 112-6019 Parts Diagram

Lawn Tractor

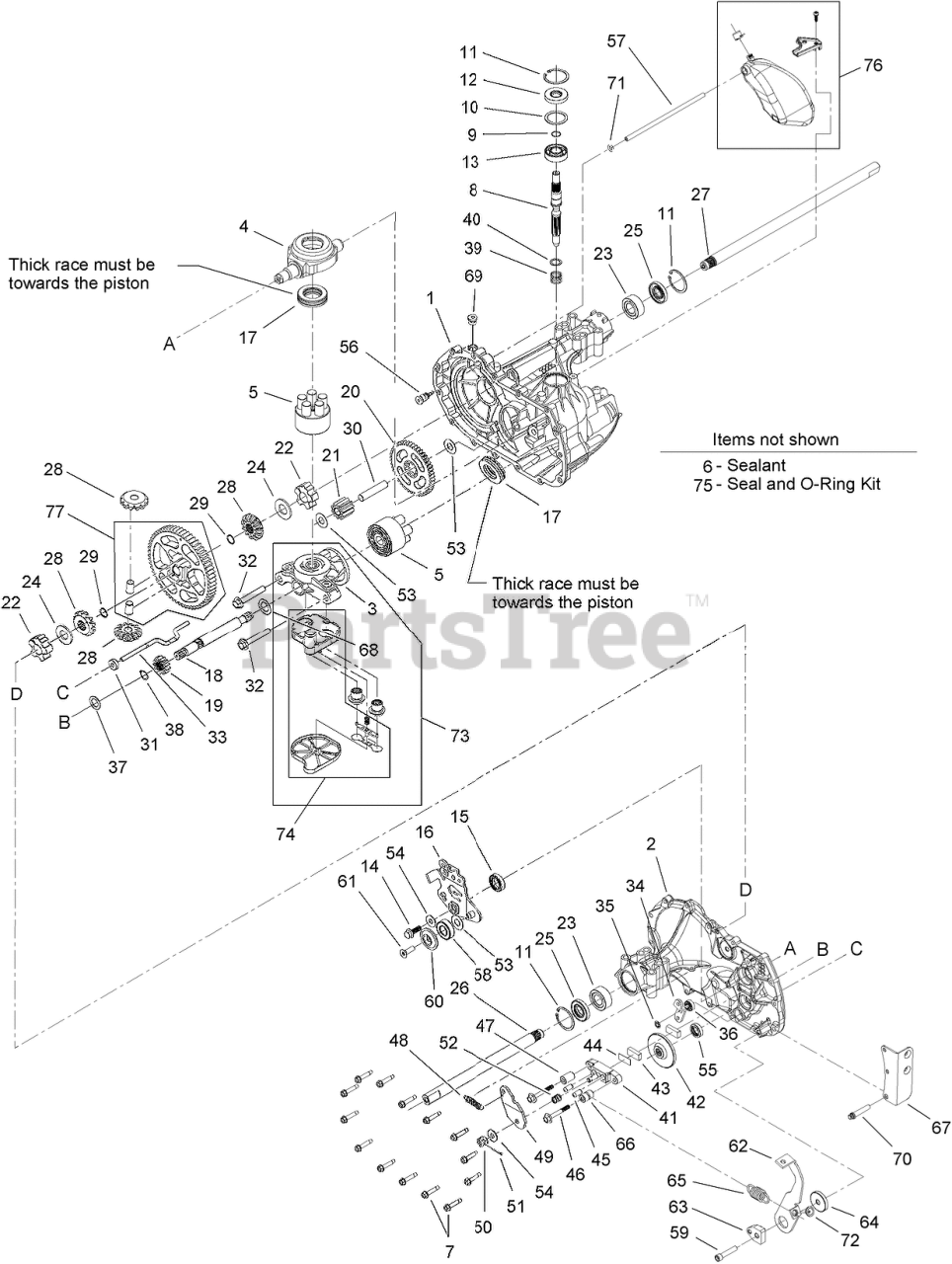

TRANSMISSION ASSEMBLY NO. 112-6019 Parts Diagram

  • Title

1

Toro 104-5301

MAIN HOUSING ASM

$

$

Not available

2

Toro 104-5302

SIDE HOUSING ASM

$314.99

$

Usually ships in 3-6 days

0

3

Toro 104-5303

CENTER SECTION ASM

$662.99

$

Usually ships in 3-6 days

0

4

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

5

Toro 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

6

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

7

Toro 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

Usually ships in 3-6 days

0

8

Toro 104-5306

SHAFT-INPUT

$370.99

$

Usually ships in 3-6 days

0

9

Toro 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

10

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

11

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 2 left!

0

12

Toro 104-5310

SEAL-LIP

$36.99

$

Usually ships in 3-6 days

0

13

Toro 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

14

Toro 104-5312

SCREW-HF

$8.99

$

Usually ships in 3-6 days

0

15

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, Qty 7

0

16

Toro 112-6190

CONTROL-ARM

$

$

Not available

17

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 2 left!

0

18

Toro 104-5315

Shaft-Motor

$

$

Not available

19

Toro 104-5316

GEAR-PINNION, 13T

$33.99

$

Usually ships in 3-6 days

0

20

Toro 104-5317

GEAR-10T/48T

$192.99

$

Usually ships in 3-6 days

0

21

Toro 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

22

Toro 104-5320

BEARING-SLEEVE

$40.99

$

Usually ships in 3-6 days

0

23

Toro 104-5321

BEARING-SLEEVE, OUTBOARD

$43.99

$

Usually ships in 3-6 days

0

24

Toro 94-1943

WASHER

$7.49

$

Usually ships in 3-6 days

0

25

Toro 104-5322

SEAL-LIP

$39.99

$

Usually ships in 3-6 days

0

26

Toro 112-6191

AXLE-SHAFT

$

$

Not available

27

Toro 112-6192

AXLE-SHAFT

$

$

Not available

28

Toro 112-6193

MITER GEAR KIT

$186.99

$

Usually ships in 3-6 days

0

29

Toro 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

30

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

31

Toro 104-5330

MAGNET-RING

$10.99

$

Usually ships in 3-6 days

0

32

Toro 94-6926

BOLT

$10.99

$

Usually ships in 3-6 days

0

33

Toro 104-5335

ROD-ACTUATOR, BYPASS

$

$

Not available

34

Toro 104-5336

ARM-BYPASS

$27.99

$

Usually ships in 3-6 days

0

35

Toro 104-5337

RING-RETAINING

$10.99

$

Usually ships in 3-6 days

0

36

Toro 104-5338

SEAL-LIP

$23.99

$

Usually ships in 3-6 days

0

37

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

38

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

39

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

40

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

41

Toro 104-5343

YOKE-BRAKE

$62.99

$

Usually ships in 3-6 days

0

42

Toro 104-5344

ROTOR-BRAKE

$90.99

$

Usually ships in 3-6 days

0

43

Toro 104-2171

PUCK-BRAKE

$20.99

$

Usually ships in 3-6 days

0

44

Toro 104-2181

PUCK-PLATE

$9.49

$

Usually ships in 3-6 days

0

45

Toro 104-2176

PIN-BRAKE

$10.99

$

Usually ships in 3-6 days

0

46

Toro 104-5345

SCREW-HF

$11.99

$

Usually ships in 3-6 days

0

47

Toro 104-2180

SPACER

$8.99

$

Usually ships in 3-6 days

0

48

Toro 112-6194

SPRING KIT

$36.99

$

Usually ships in 3-6 days

0

49

Toro 112-6195

BRAKE-ARM

$39.99

$

Usually ships in 3-6 days

0

50

Toro 93-3807

NUT-CASTLE

$24.99

$

Usually ships in 3-6 days

0

51

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

52

Toro 104-2188

SPRING-BRAKE, ANTI DRAG

$7.99

$

Usually ships in 3-6 days

0

53

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

54

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

55

Toro 104-5347

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

56

Toro 104-5349

FITTING-SAE

$69.99

$

Usually ships in 3-6 days

0

57

Toro 104-5350

HOSE-EXPANSION, TANK

$

$

Not available

58

Toro 104-2156

BEARING

$124.99

$

Usually ships in 3-6 days

0

59

Toro 104-2155

SCREW

$

$

Not available

60

Toro 104-2157

SPACER-LOCATING

$

$

Not available

61

Toro 104-2158

SCREW-COUNTERSUNK

$

$

Not available

62

Toro 112-6196

RETURN-ARM

$58.99

$

Usually ships in 3-6 days

0

63

Toro 104-2119

PUCK-ADJUSTING

$

$

Not available

64

Toro 112-6197

WASHER-FLAT

$

$

Not available

65

Toro 104-5356

SPRING-EXTENSION

$24.99

$

Usually ships in 3-6 days

0

66

Toro 104-5357

SPACER

$

$

Not available

67

Toro 112-6198

BRACKET-TORQUE

$39.99

$

Usually ships in 3-6 days

0

68

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

69

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 1 left!

0

70

Toro 104-2148

SCREW-TTH

$

$

Not available

71

Toro 104-5361

O-RING

$8.49

$

Usually ships in 3-6 days

0

72

Toro 104-5363

GUIDE-SPRING

$12.99

$

Usually ships in 3-6 days

0

73

Toro 106-6522

CENTER SECTION FILTER BYPASS ASM

$700.99

$

Usually ships in 3-6 days

0

74

Toro 106-6523

FILTER ASM

$134.99

$

Usually ships in 3-6 days

0

75

Toro 104-5368

SEAL KIT

Note: Not illustrated

$

$

Not available

76

Toro 104-5369

Expansion Tank Kit

$

$

Not available

77

Toro 112-6199

60T BULL GEAR DIFFERENTIAL KIT (W/PINS)

$

$

Not available
