13AP91RT848 (LX 468) - Toro Lawn Tractor (2010) DRIVE SYSTEM ASSEMBLY Parts Diagram

Lawn Tractor

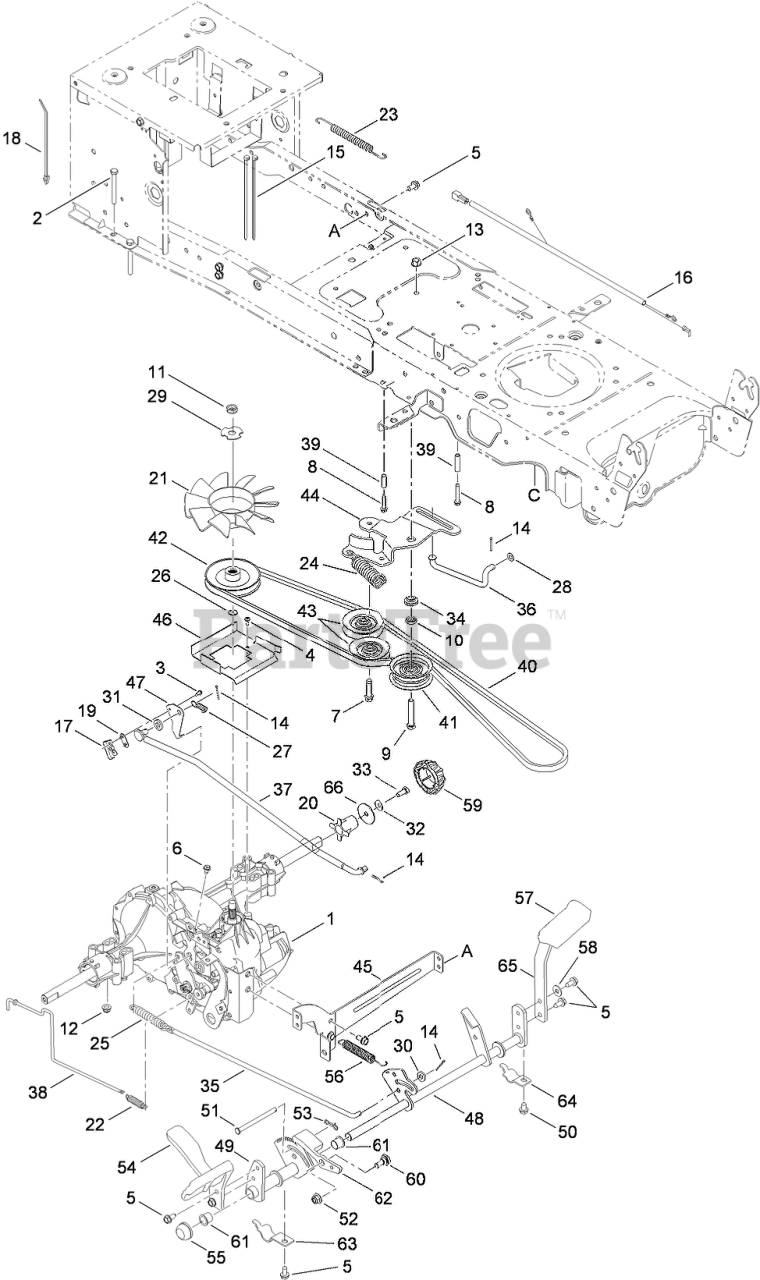

DRIVE SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 112-6019

HYDRO TRANSMISSION ASM

$2975.99

$

Usually ships in 3-6 days

0

2

Toro 112-0714

SCREW-HEX

$

$

Not available

3

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

4

$

$

Not available

5

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-6022

SCREW-TAP

$7.49

$

Usually ships in 3-6 days

0

7

Toro 112-0469

SCREW-TAP

$

$

Not available

8

Toro 112-0839

SCREW-TAP

$6.99

$

In Stock, only 2 left!

0

9

Toro 112-6009

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

10

Toro 112-0493

NUT-JAM

$7.49

$

In Stock, only 4 left!

0

11

Toro 112-6144

NUT-JAM

$7.99

$

In Stock, only 1 left!

0

12

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

13

Toro 112-0385

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 7

0

14

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

15

Toro 112-0527

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

16

Toro 119-8489

HARNESS-JUMPER

$33.99

$

Usually ships in 3-6 days

0

17

Toro 112-0602

SWITCH-SPRING, SHORT

$14.99

$

Usually ships in 3-6 days

0

18

Toro 112-0866

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

19

Toro 112-0625

PLATE-INSULATOR

$8.49

$

Usually ships in 3-6 days

0

20

Toro 112-6025

SLEEVE

$7.49

$

Usually ships in 3-6 days

0

21

$32.99

$

In Stock, only 1 left!

0

22

Toro 112-6027

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

23

Toro 119-8490

SPRING-EXTENSION

$

$

Not available

24

Toro 119-8491

SPRING-EXTENSION

$

$

Not available

25

Toro 112-0350

SPRING-EXTENSION

$23.99

$

In Stock, only 1 left!

0

26

Toro 112-6028

RING-WIRE

$7.99

$

Usually ships in 3-6 days

0

27

Toro 112-0875

SPRING-EXTENSION

$16.99

$

Usually ships in 3-6 days

0

28

Toro 119-8492

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

29

Toro 112-6146

WASHER-LOCK

$8.49

$

Usually ships in 3-6 days

0

30

Toro 112-0579

WASHER-FLAT

$11.99

$

Usually ships in 3-6 days

0

31

Toro 112-0544

WASHER-FLAT

$7.49

$

In Stock, Qty 6

0

32

Toro 112-0435

WASHER-BELL

$

$

Not available

33

Toro 112-0551

SCREW-HH

$7.49

$

In Stock, Qty 6

0

34

Toro 119-8419

SPACER-SHOULDER

$9.99

$

Usually ships in 3-6 days

0

35

Toro 112-6030

ROD-BRAKE

$34.99

$

Usually ships in 3-6 days

0

36

Toro 119-8420

ROD-BYPASS, FOOT PEDAL

$27.99

$

Usually ships in 3-6 days

0

37

Toro 119-8493

ROD-CONTROL

$87.99

$

Usually ships in 3-6 days

0

38

Toro 119-8494

ROD-BYPASS, HYDRO

$

$

Not available

39

Toro 112-5831

SPACER

$8.99

$

In Stock, only 4 left!

0

40

Toro 119-8495

BELT-V

$87.99

$

In Stock, only 1 left!

0

41

Toro 112-0313

PULLEY-IDLER, FLAT

$55.99

$

Usually ships in 3-6 days

0

42

Toro 112-6148

PULLEY-INPUT

$

$

Not available

43

Toro 112-6149

PULLEY-IDLER, Y TYPE

$50.99

$

In Stock, only 4 left!

0

44

Toro 119-8427

BRACKET-IDLER, CENTER DOUBLE

$67.99

$

Usually ships in 3-6 days

0

45

Toro 119-8496

BRACKET-MOUNTING

$

$

Not available

46

Toro 119-8497

BRACKET-SUPPORT, BELT DISENGAGE

$

$

Not available

47

Toro 112-6035

BRACKET-ACTUATOR

$18.99

$

Usually ships in 3-6 days

0

48

Toro 119-8429

BRAKE CONTROL ASM

$

$

Not available

49

Toro 119-8498

BRACKET-PEDAL

$

$

Not available

50

Toro 112-0556

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

51

Toro 119-8431

PIN-CLEVIS

$

$

Not available

52

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

53

Toro 112-0990

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

54

Toro 119-8499

PEDAL-CONTROL
(Superseded to 125-1800)

$

$

Not available

55

Toro 119-8432

CAP-PUSH

$

$

Not available

56

Toro 119-8433

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

57

Toro 119-8434

PAD-PEDAL, BRAKE

$

$

Not available

58

Toro 112-0435

WASHER-BELL

$

$

Not available

59

Toro 112-0352

CAP-HUB

$9.99

$

In Stock, only 3 left!

0

60

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

61

Toro 119-8435

BEARING-FLANGE

$

$

Not available

62

Toro 119-8436

LATCH-CRUISE

$

$

Not available

63

Toro 119-8437

BRACKET-STRAP, PEDAL SUPPORT

$

$

Not available

64

Toro 119-8438

BRACKET-STRAP, PEDAL SUPPORT

$

$

Not available

65

Toro 119-8439

BRACKET-PEDAL, BRAKE

$36.99

$

Usually ships in 3-6 days

0

66

Toro 119-8488

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0
