13AP62RP544 (SL 500) - Toro Super Lawn Tractor (SN: 1B157H20701 & Above) (2007) SEAT AND FENDER ASSEMBLY Parts Diagram

Super Lawn Tractor

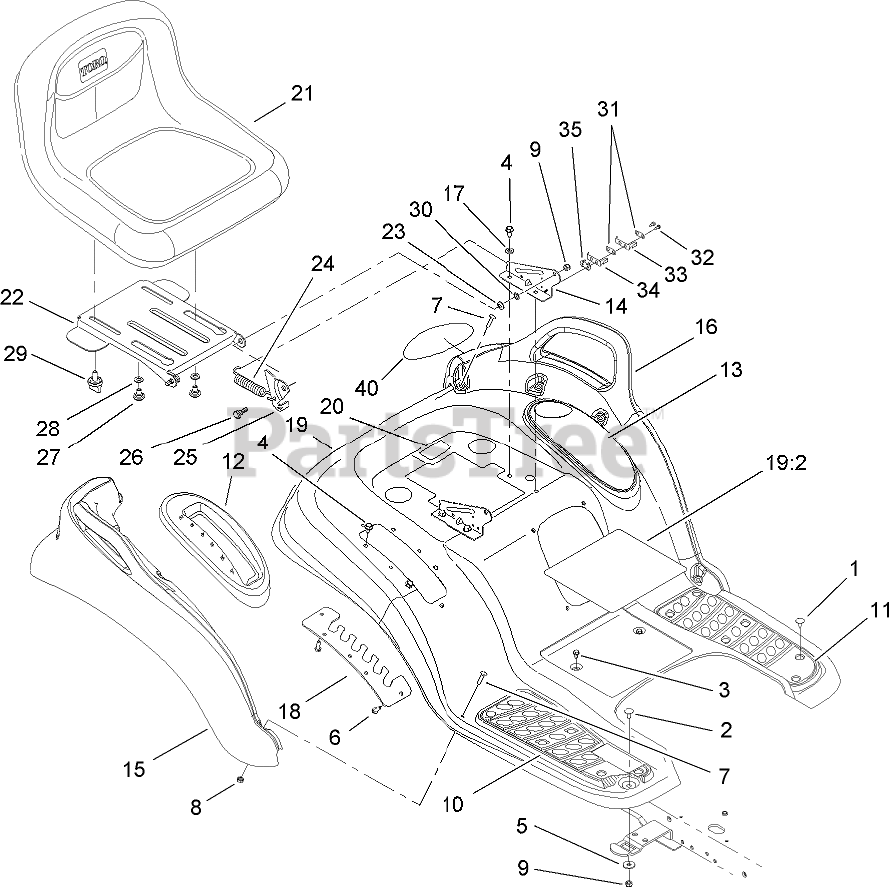

SEAT AND FENDER ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0549

CLIP-RATCHET, FASTENER

$6.99

$

Usually ships in 3-6 days

0

2

Toro 112-0426

BOLT-CARR

$

$

Not available

3

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 5

0

4

Toro 112-0556

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

5

Toro 112-0582

WASHER-FLAT

$

$

Not available

6

Toro 112-0509

SCREW-TAP

$9.99

$

In Stock, only 3 left!

0

7

Toro 112-0907

SCREW-CARR

$6.99

$

Usually ships in 3-6 days

0

8

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

9

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 3 left!

0

10

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

11

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

12

Toro 112-0869

COVER-LEVER, LIFT

$

$

Not available

13

Toro 112-0870

COVER (W/CUP HOLDER)

$

$

Not available

14

Toro 112-6046

BRACKET-MOUNT, SEAT

$28.99

$

Usually ships in 3-6 days

0

15

Toro 112-0871

FLARE-FENDER, RH

$121.99

$

Usually ships in 3-6 days

0

16

Toro 112-0872

FLARE-FENDER, LH

$121.99

$

Usually ships in 3-6 days

0

17

Toro 112-0517

WASHER-LOCK, EXTERNAL

$

$

Not available

18

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

19

Toro 112-5869

FENDER AND DECAL ASM

$

$

Not available

19:2

Toro 112-3707

DECAL-SLOPE

$

$

Not available

20

Toro 112-3701

DECAL-TORO HOTLINE

$

$

Not available

21

Toro 112-6018

SEAT-MEDIUM BACK

$

$

Not available

22

Toro 112-0593

BRACKET-SEAT
(Superseded to 112-6113)

$

$

Not available

23

Toro 112-5979

WASHER-BELL

$4.99

$

Usually ships in 3-6 days

0

24

Toro 112-0616

SPRING-EXTENSION

$17.99

$

Usually ships in 3-6 days

0

25

Toro 112-0646

BRACKET-LIFT, LH

$18.99

$

Usually ships in 3-6 days

0

26

Toro 112-0575

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

27

Toro 112-0554

BOLT-SHOULDER

$

$

Not available

28

Toro 112-5980

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

29

Toro 112-0409

KNOB

$9.99

$

In Stock, only 1 left!

0

30

Toro 112-0645

NUT-PUSH

$6.99

$

Usually ships in 3-6 days

0

31

Toro 112-0635

PLATE-INSULATOR

$4.99

$

Usually ships in 3-6 days

0

32

Toro 112-0626

SCREW-HWHTF

$6.99

$

In Stock, only 3 left!

0

33

Toro 112-0529

SWITCH-SPRING

$5.49

$

Usually ships in 3-6 days

0

34

Toro 112-0532

SWITCH-SPRING, INNER

$7.99

$

Usually ships in 3-6 days

0

35

Toro 112-0637

PLATE-BOSS, INSULATOR

$6.99

$

Usually ships in 3-6 days

0

40

Toro 112-5873

REFLECTOR

$26.99

$

Usually ships in 3-6 days

0
