13AP62RP544 (SL 500) - Toro Super Lawn Tractor (SN: 1B157H20701 & Above) (2007) MUFFLER ASSEMBLY Parts Diagram

Super Lawn Tractor

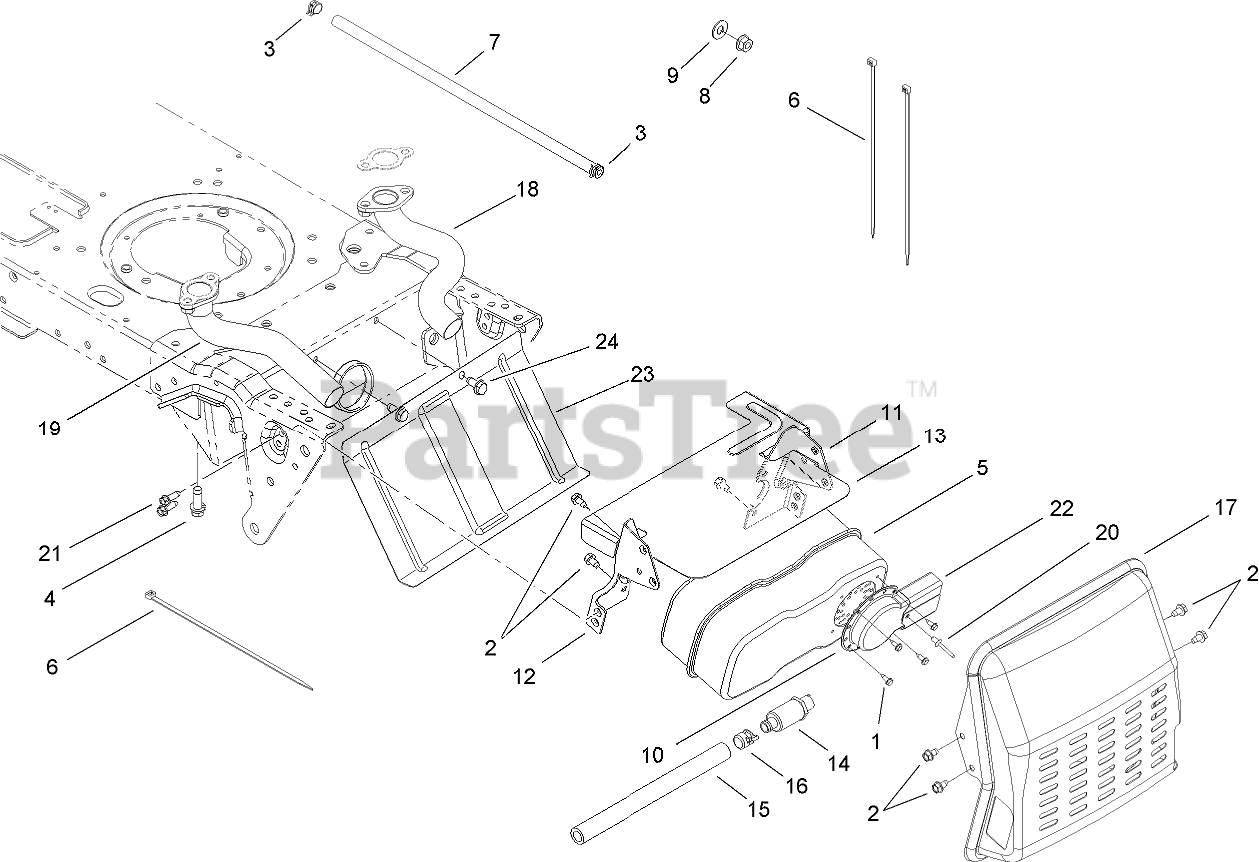

MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0626

SCREW-HWHTF

$6.99

$

In Stock, only 3 left!

0

2

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 5

0

3

Toro 112-0573

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

4

Toro 112-0487

SCREW-TAP

$

$

Not available

5

Toro 112-0342

MUFFLER-INLET, DUAL

$105.99

$

Usually ships in 3-6 days

0

6

Toro 112-0527

TIE-CABLE

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-0720

HOSE-FUEL

$

$

Not available

8

Toro 112-0490

NUT-LOCK, FLANGE

$

$

Not available

9

Toro 112-0572

WASHER-FLAT

$

$

Not available

10

Toro 112-0453

DEFLECTOR-MUFFLER

$20.99

$

In Stock, only 1 left!

0

11

Toro 112-0467

BRACKET-MUFFLER, LH

$10.99

$

Usually ships in 3-6 days

0

12

Toro 112-0466

BRACKET-MUFFLER, RH

$

$

Not available

13

Toro 112-0716

SHIELD-HEAT

$

$

Not available

14

Toro 112-0388

DRAIN-OIL
(Superseded to 112-6094)

$46.99

$

Usually ships in 3-6 days

0

15

Toro 112-0553

HOSE-DRAIN

$17.99

$

Usually ships in 3-6 days

0

16

Toro 112-0397

CAP-DRAIN, OIL

$

$

Not available

17

Toro 112-6013

MUFFLER HEAT SHIELD ASM

$

$

Not available

18

Toro 112-0391

PIPE-EXHAUST, LH

$

$

Not available

19

Toro 112-0392

PIPE-EXHAUST, RH

$

$

Not available

20

Toro 112-3741

RIVET-POP

$

$

Not available

21

Toro 112-0587

SCREW-TAP

$6.99

$

In Stock, Qty 10

0

22

Toro 112-0730

DEFLECTOR-MUFFLER, LONG

$

$

Not available

23

Toro 112-6014

SHIELD-HEAT, TRACTOR

$32.99

$

Usually ships in 3-6 days

0

24

Toro 112-0395

SCREW-HWH

$10.99

$

In Stock, Qty 19

0
