13AP62RP544 (SL 500) - Toro Super Lawn Tractor (SN: 1B157H20701 & Above) (2007) DECK ASSEMBLY Parts Diagram

Super Lawn Tractor

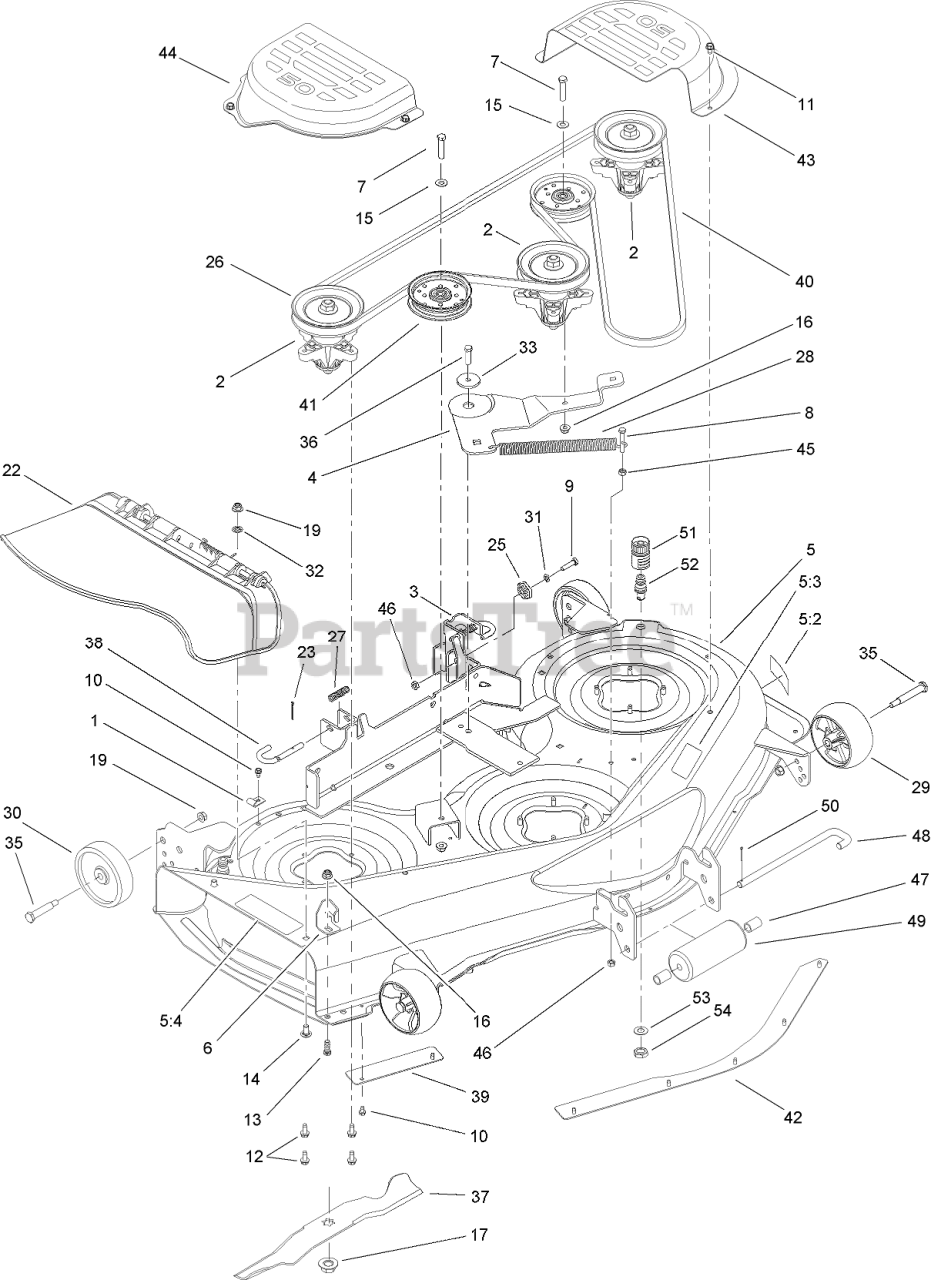

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0378

BRACKET-RETAIN, HOOK

$

$

Not available

2

Toro 112-6042

SPINDLE ASM
(Superseded to 112-0370)

$191.99

$

In Stock, only 4 left!

0

3

Toro 112-0413

LH HANGER BRACKET ASM

$81.99

$

In Stock, only 3 left!

0

4

Toro 112-6057

BRACKET-IDLER

$99.99

$

Usually ships in 3-6 days

0

5

Toro 112-5859

DECK AND DECAL ASM

$1763.99

$

Usually ships in 3-6 days

0

5:2

Toro 112-1268

DECAL-DANGER, DECK

$

$

Not available

5:3

Toro 112-1273

DECAL-BELT ROUTING, DECK

$

$

Not available

5:4

Toro 112-1265

DECAL-DANGER

$

$

Not available

6

Toro 112-0854

STOP-CHUTE

$

$

Not available

7

Toro 112-0513

SCREW-HH

$7.49

$

In Stock, Qty 12

0

8

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

9

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

10

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

11

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

12

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

13

Toro 112-0631

SCREW-HH

$7.49

$

In Stock, Qty 7

0

14

Toro 112-0452

BOLT-CARR

$7.49

$

Usually ships in 3-6 days

0

15

Toro 112-0572

WASHER-FLAT

$

$

Not available

16

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

17

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

19

Toro 112-0385

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 7

0

22

Toro 112-0533

CHUTE ASM

$214.99

$

In Stock, only 3 left!

0

23

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

25

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$25.99

$

In Stock, only 1 left!

0

26

Toro 112-0505

PULLEY-DECK

$73.99

$

Usually ships in 3-6 days

0

27

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

28

Toro 112-6043

SPRING-EXTENSION

$32.99

$

Usually ships in 3-6 days

0

29

Toro 112-0677

WHEEL-DECK, FRONT

$28.99

$

In Stock, Qty 5

0

30

Toro 112-0337

WHEEL-DECK, REAR

$18.99

$

In Stock, only 2 left!

0

31

Toro 112-0366

WASHER-LOCK

$

$

Not available

32

Toro 112-0623

RETAINER-BOLT

$

$

Not available

33

Toro 112-0584

SPACER-SHOULDER

$43.99

$

In Stock, only 2 left!

0

35

Toro 112-0334

BOLT-SHOULDER

$15.99

$

In Stock, Qty 11

0

36

Toro 112-0557

SCREW-HH

$7.49

$

In Stock, only 1 left!

0

37

Toro 112-0316

BLADE-17.90 INCH

$28.99

$

In Stock, Qty 20+

0

38

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$23.99

$

In Stock, only 2 left!

0

39

Toro 112-0612

SKIRT-RH

$41.99

$

Usually ships in 3-6 days

0

40

Toro 112-0332

BELT-V, TYPE B

$169.99

$

In Stock, only 2 left!

0

41

Toro 112-0314

PULLEY-IDLER

$63.99

$

In Stock, only 4 left!

0

42

Toro 112-5837

SKIRT-CENTER

$

$

Not available

43

Toro 112-6041

COVER-BELT, LH

$

$

Not available

44

Toro 112-6040

COVER-BELT, RH

$

$

Not available

45

Toro 112-0437

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

46

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

47

Toro 112-0691

SPACER

$16.99

$

Usually ships in 3-6 days

0

48

Toro 112-5839

PIN-ROLLER
(Superseded to 112-0682)

$

$

Not available

49

Toro 112-5840

ROLLER
(Superseded to 112-0521)

$63.99

$

Usually ships in 3-6 days

0

50

Toro 112-5841

PIN-COTTER

$

$

Not available

51

Toro 112-0916

ADAPTER-NOZZLE, WATER

$46.99

$

Usually ships in 3-6 days

0

52

Toro 112-0879

NOZZLE-WATER, DECK

$47.99

$

Usually ships in 3-6 days

0

53

Toro 112-0643

WASHER-LOCK

$6.99

$

Usually ships in 3-6 days

0

54

Toro 112-0351

NUT-HEX

$10.99

$

Usually ships in 3-6 days

0
