13AP625K730 - Huskee Lawn Tractor (2007) (Tractor Supply) Steering & Wheels Front Parts Diagram

Lawn Tractor

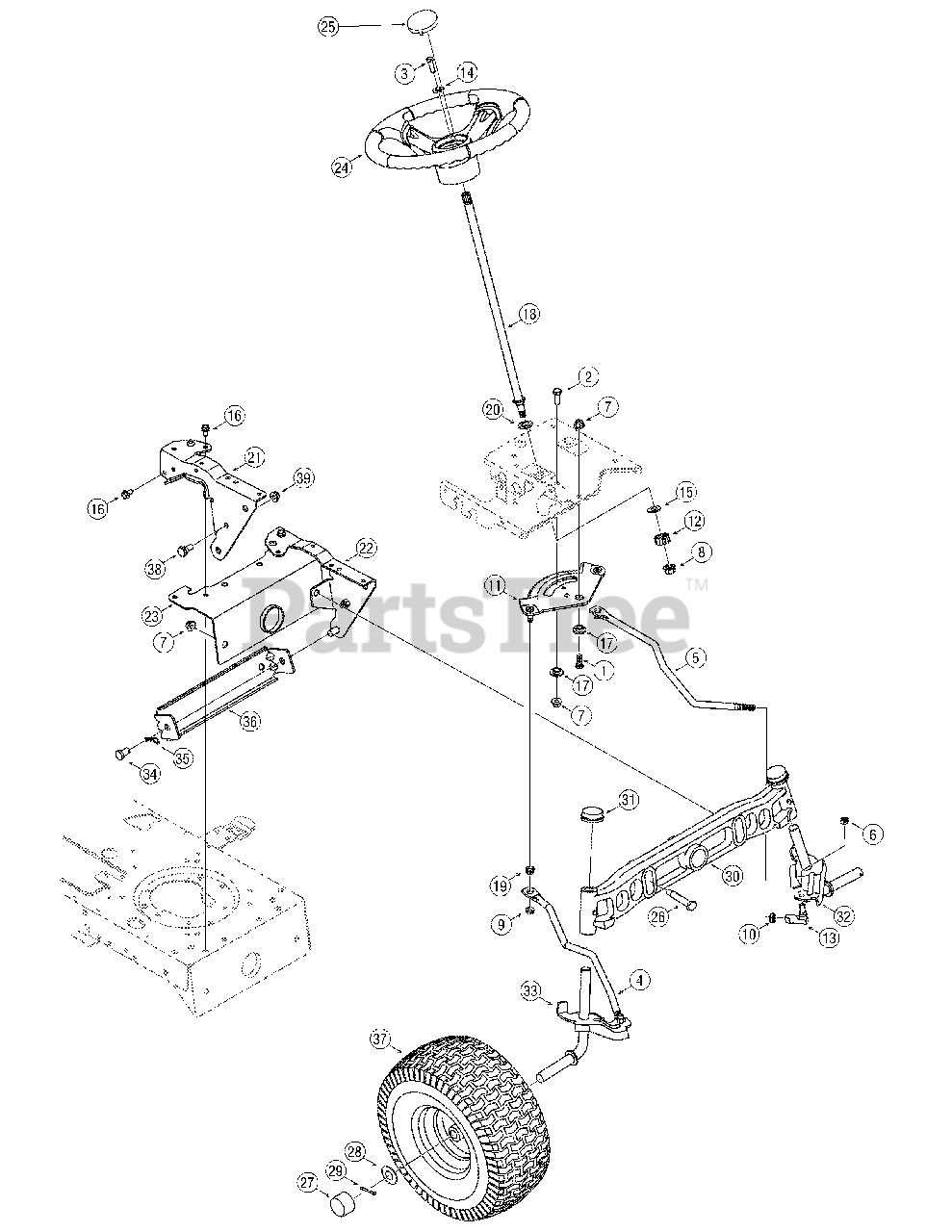

Steering & Wheels Front Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

Note:

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

Note:

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

Note:

$6.99

$

In Stock, Qty 5

0

4

MTD 711-1408

Link, Drag, RH

Note:

$

$

Not available

5

MTD 711-1409A

Link, Drag, LH

Note:

$

$

Not available

6

MTD 712-0214

Nut, Hex Lock, 3/8-24

Note:

$6.49

$

In Stock, only 2 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16

Note:

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20

Note:

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

Note:

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

Note:

$4.49

$

In Stock, Qty 20+

0

11

MTD 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

Note:

$70.99

$

In Stock, Qty 20+

0

12

MTD 717-1554

Gear, Pinion, Steering

Note:

$10.99

$

In Stock, Qty 20+

0

13

MTD 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

Note:

$24.99

$

In Stock, Qty 20+

0

14

MTD 736-3004

Washer, Flat,.406 x.875 x.105

Note:

$4.99

$

In Stock, Qty 6

0

15

MTD 736-3084

Washer, Flat,.51 x 1.12 x.06

Note:

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-1260A

Screw, 5/16-18, 0.750

Note:

$3.99

$

In Stock, Qty 20+

0

17

MTD 738-04154

Spacer, Shoulder,.38 x 1.00 x.31

Note:

$5.49

$

In Stock, Qty 11

0

18

MTD 738-1001A

Shaft, Steering,.625 OD x 24.25

Note:

$75.99

$

In Stock, Qty 5

0

19

MTD 741-0475

Plastic Bushing.380 ID
(Superseded to 941-0475)

Note:

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0656A

Hex Flange Bearing 5/8 PM
(Superseded to 941-0656A)

Note:

$5.49

$

In Stock, Qty 20+

0

21

MTD 783-0726E

Pivot Bracket, Support RH

Note:

Variations

MTD 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

22

MTD 783-0727D

Pivot Bracket, Support LH

Note:

Variations

MTD 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

23

MTD 783-0728B

Pivot Bracket, Bar

Note:

Variations

MTD 783-0728B-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728B-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728B-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728B-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728B-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728B-4008

BRACKET-PIVOT BAR - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

24

MTD 631-04008A

Steering Wheel, 13.25
(Superseded to 631-04008B)

Note:

$94.99

$

In Stock, only 3 left!

0

25

MTD 731-04039

Steering Wheel Cover

Note:

$8.49

$

Usually ships in 3-6 days

0

26

MTD 738-1011A

Shoulder Screw,.5 x 2.2, 3/8-16

Note:

$8.49

$

In Stock, Qty 11

0

27

MTD 731-05674

Cap

Note:

$5.49

$

In Stock, Qty 20+

0

28

MTD 736-04228

Flat Washer, .781 x 1.589
(Superseded to 736-04228B)

Note:

$5.49

$

In Stock, Qty 20+

0

29

MTD 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

Note:

$4.99

$

In Stock, Qty 20+

0

30

MTD 719-04105

Cast Iron Pivot Bar
(Superseded to 919-04177E)

Note:

$248.99

$

In Stock, only 1 left!

0

31

MTD 726-0341

Push Cap

Note:

$4.99

$

In Stock, Qty 20+

0

32

MTD 638-04003A

LH Axle Assembly,.750
(Superseded to 638-04003AP)

Note:

$

$

Not available

33

MTD 638-04004A

RH Axle Assembly,.750
(Superseded to 938-04004A)

Note:

$71.99

$

In Stock, only 2 left!

0

34

MTD 711-0332

Pin, Clevis,.50 x.78
(Superseded to 911-0332)

Note:

$16.99

$

In Stock, Qty 14

0

35

MTD 714-04023

Cotter Pin, Int., .080 x 1.5625

Note:

$4.49

$

In Stock, Qty 20+

0

36

MTD 783-0720A

Adjustment Bracket, Front
(Superseded to 783-0720C)

Note:

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

37

MTD 634-04086

Wheel Assembly Complete,
(Superseded to 634-05067)

Note:

Variations

MTD 634-04086-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$185.99

$

In Stock, only 4 left!

0

MTD 634-04086-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0961

Wheel Assembly Complete - Carlisle Gray (0961)

$84.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0991

WHEEL ASM COMPLETE - Carlisle White (0991)

$185.99

$

Usually ships in 3-6 days

0

MTD 634-04086-4009

WHEEL ASM COMPLETE - TEE WHITE (4009)

$185.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$172.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

37

MTD 734-1731

Tire Only 15 x 6 x 6 Sq. Shldr.

Note: Not shown

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

37

MTD 634-04081

Rim Only w/ Valve Stem
(Superseded to 934-04081)

Note: Not shown

Variations

MTD 634-04081-0499

Rim Assembly, Front - CUB BEIGE (0499)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-0662

Rim Assembly, Front - OYSTER GRAY (0662)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-0674

RIM ASM-FRONT - YARDMAN YELLOW (0674)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-4042

RIM ASM-FRONT - CRAFTSMAN GRAY (4042)

$105.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

38

MTD 738-0143

Screw, Shldr,.498 x.340, 3/8-16

Note:

$4.49

$

In Stock, Qty 20+

0

39

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

Note:

$4.99

$

In Stock, Qty 20+

0
