13AP625K730 - Huskee Lawn Tractor (2007) (Tractor Supply) Engine Accessories Parts Diagram

Lawn Tractor

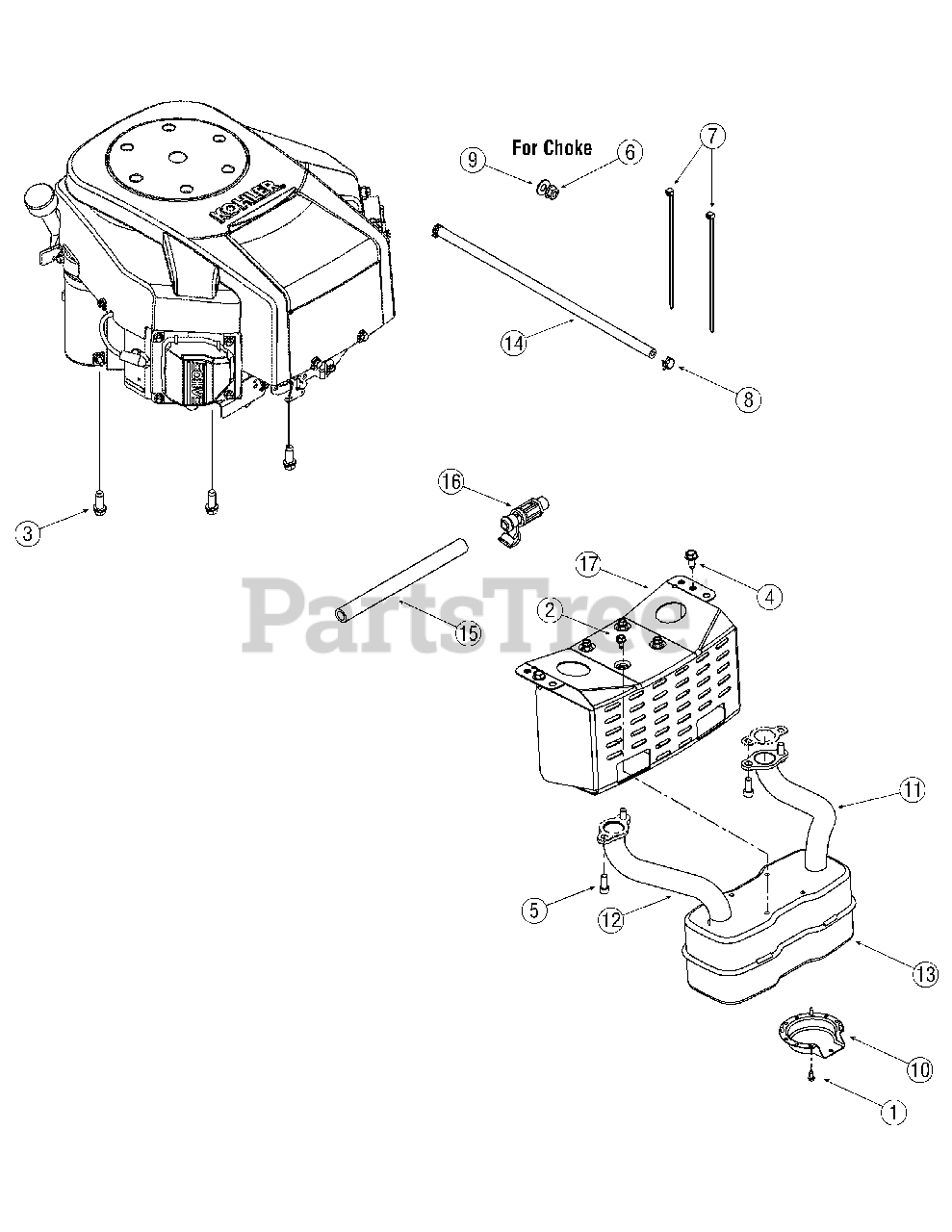

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0654A

TT Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0726

AB Screw 5/16-12 x 0.5

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-3005

Flange Lock Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

10

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

11

MTD 751-0644B

LH Exhaust Pipe

$146.99

$

Usually ships in 3-6 days

0

12

MTD 751-0645A

RH Exhaust Pipe

$93.99

$

Usually ships in 3-6 days

0

13

MTD 751-0805A

Dual Inlet Muffler
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

14

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

15

MTD 751-3141

OIl Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

16

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

17

MTD 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
