13AP625K730 - Huskee Lawn Tractor (2007) (Tractor Supply) Drive & Wheels Rear Parts Diagram

Lawn Tractor

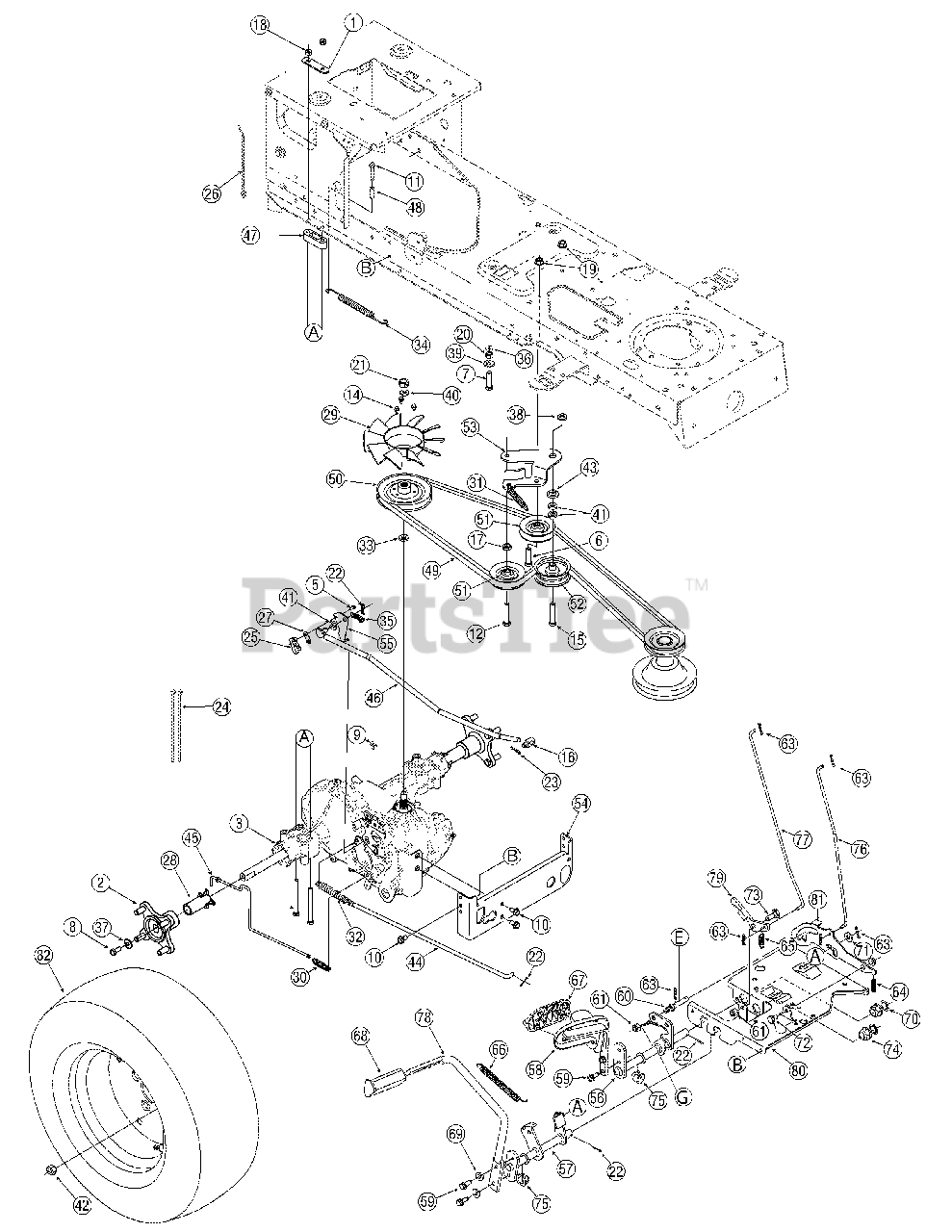

Drive & Wheels Rear Parts Diagram

  • Title

1

MTD 17840

Transmission Mounting Bracket
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

MTD 618-04228

Wheel Hub Assembly
(Superseded to 918-04228A)

$50.99

$

In Stock, Qty 5

0

3

MTD 618-04270A

Hydrostatic Transmission
(Superseded to 918-04270B)

$

$

Not available

4

629-04124*

Harness Assembly

$

$

Not available

5

MTD 710-0227

AB Screw #8-18 x 0.375

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0502A

TT Sems Screw 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-0520

Hex Bolt 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

8

MTD 710-0627

Screw, 5/16-24 x.750

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0653

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 7

0

10

MTD 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1007

Screw, 3/8-16 x 1.50

$6.49

$

Usually ships in 3-6 days

0

13

MTD 710-1266

Hex Bolt 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

14

MTD 710-3007

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3011

Hex Bolt 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

16

MTD 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

17

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-3017

Flanged Lock Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-3066

Hex Nut, 1/2-20
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

22

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

23

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

24

MTD 725-0157

Cable Tie

Note: (Not shown)

$3.99

$

In Stock, Qty 20+

0

25

MTD 725-1644

Switch

$9.99

$

In Stock, Qty 11

0

26

MTD 726-0154

Cable Tie
(Superseded to 926-0154)

Note: (Not shown)

$6.49

$

Usually ships in 3-6 days

0

27

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

28

MTD 731-05300

Sleeve, .765 x 2.410 Lg.
(Superseded to 731-05300A)

$4.99

$

In Stock, only 1 left!

0

29

MTD 731-1449A

Blade Fan
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 8

0

30

MTD 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

31

MTD 732-04323B

Extension Spring

$12.99

$

In Stock, only 1 left!

0

32

MTD 732-0716C

Extension Spring
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

33

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

34

MTD 732-0994

Extension Spring

$10.99

$

In Stock, Qty 9

0

35

MTD 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

36

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0242

Bell Washer,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0258

Flat Washer,.385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

39

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0921

Lock Washer

$4.49

$

In Stock, Qty 6

0

41

MTD 736-3010

Flat Washer

$4.99

$

In Stock, Qty 20+

0

42

MTD 712-3050

Lug Nut 7/16-14

$9.99

$

In Stock, only 2 left!

0

43

MTD 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 19

0

44

MTD 747-04139

Brake Rod

$24.99

$

In Stock, only 1 left!

0

45

MTD 747-1149

Bypass Rod

$24.99

$

In Stock, only 1 left!

0

46

MTD 747-1151

Control Rod

$

$

Not available

47

MTD 748-0334

Transaxle Spacer
(Superseded to 948-0334)

$10.99

$

In Stock, only 1 left!

0

48

MTD 750-0566A

Spacer,.260 x.372 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

49

MTD 754-0461

V Belt, A x 78" Lg
(Superseded to 954-0461)

$59.99

$

In Stock, Qty 20+

0

50

MTD 756-04111

Input Pulley

$50.99

$

In Stock, only 2 left!

0

51

MTD 756-04209

Idler Pulley

$22.99

$

In Stock, Qty 20+

0

52

MTD 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

53

MTD 783-04442

Idler Bracket

Variations

MTD 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

MTD 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

54

MTD 783-0810B

Torq Bracket
(Superseded to 783-0810B-0637)

Variations

MTD 783-0810B-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 783-1019B

Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

56

MTD 647-0049A

Hydrostatic Control Assembly
(Superseded to 647-0049A-0637)

Variations

MTD 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 647-04100

Brake Control Assembly
(Superseded to 647-04100-0637)

Variations

MTD 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 683-0267C

Pedal Assembly

$

$

Not available

59

MTD 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

60

MTD 711-04159B

Pin

$7.99

$

Usually ships in 3-6 days

0

61

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

62

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

63

MTD 714-0104

Pin, Cotter

$4.49

$

In Stock, Qty 20+

0

64

MTD 732-0335

Compression Spring

$

$

Not available

65

MTD 732-0955

Extension Spring

$9.99

$

In Stock, only 1 left!

0

66

MTD 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

67

MTD 735-0662

Control Pedal

$11.99

$

Usually ships in 3-6 days

0

68

MTD 735-3049A

Brake Control Pedal

$12.99

$

In Stock, only 1 left!

0

69

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

MTD 736-0187

Flat Washer,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

72

MTD 738-0155

Shoulder Screw
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

73

MTD 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

74

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

75

MTD 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

76

MTD 747-04093A

Brake Lock Control Rod

$

$

Not available

77

MTD 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

78

MTD 747-04641

Brake Pedal
(Superseded to 747-04641A-0637)

Variations

MTD 747-04641-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

79

MTD 748-04039C

Cruise Latch

$

$

Not available

80

MTD 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

81

MTD 783-0663E

Hydro Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

82

N/A

Wheel Complete, 22 x 9.5 x 12

$

$

Not available

82

MTD 734-04174

Tire Only, 22 x 9.5 x 12 SQ SH

Note: Not shown

$113.99

$

Usually ships in 3-6 days

0

82

MTD 634-04238

Rim Only
(Superseded to 753-10244)

Note: Not shown

Variations

MTD 634-04238-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04238-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-4028

RIM ASM:12.0 X 7. - SEARS YELLOW (4028)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04238-4009

RIM ASM - TEE WHITE (4009)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-4042

RIM ASM - CRAFTSMAN GRAY (4042)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

82

MTD 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0
