13AP625K730 - Huskee Lawn Tractor (2007) (Tractor Supply) Deck 54 Parts Diagram

Lawn Tractor

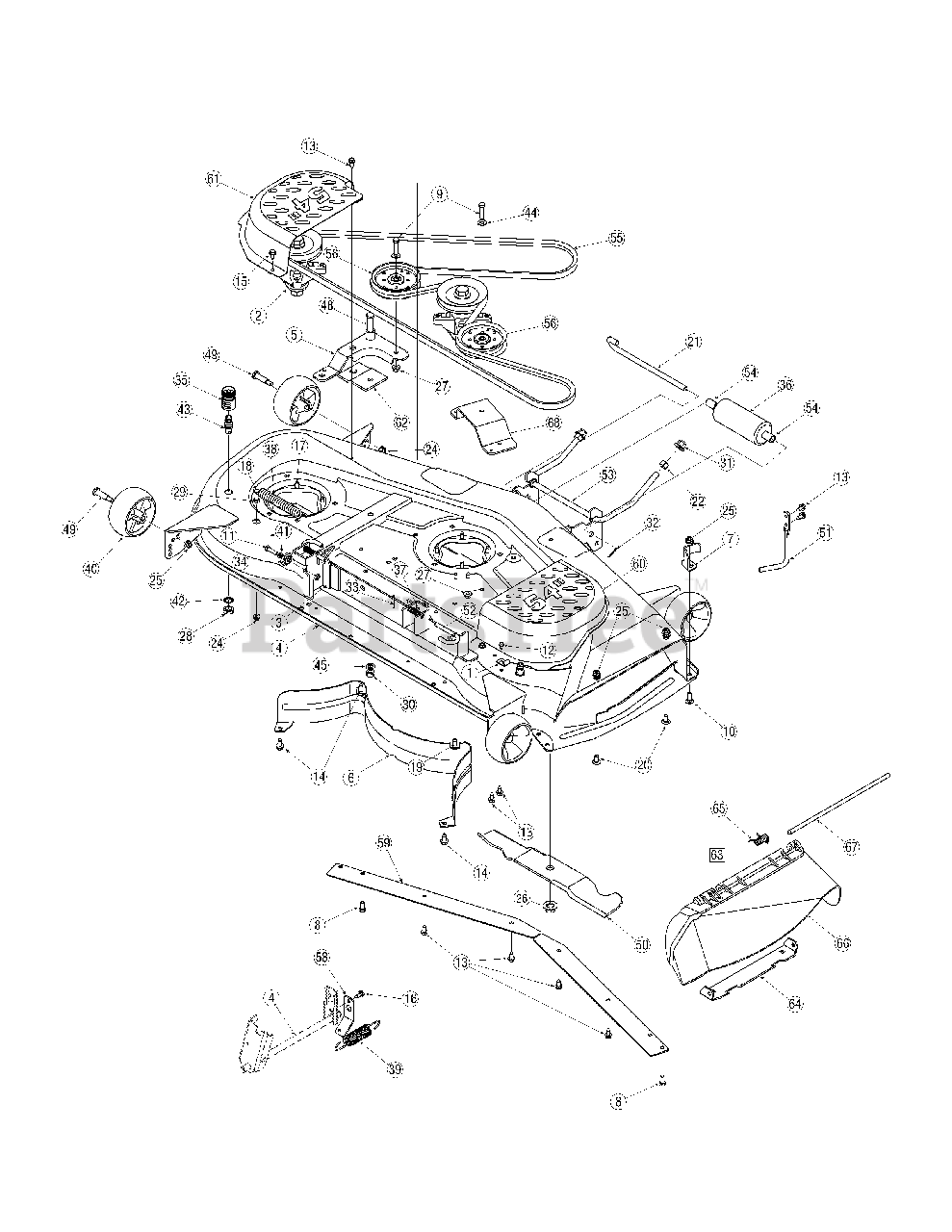

Deck 54 Parts Diagram

  • Title

1

MTD 16606

Hook, Retainer Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

MTD 618-04125A

Spindle Assembly
(Superseded to 918-04125C)

Note: If Spindle Housing has grease fitting, please refer to part number 918-04126A

$133.99

$

In Stock, Qty 20+

0

2

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0315

Flat Washer:.760 x 1.5

Note: Not shown

$6.99

$

In Stock, Qty 6

0

2

MTD 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

2

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

2

MTD 748-0160A

Spacer:.790 ID x 1.25

Note: Not shown

$6.99

$

In Stock, only 3 left!

0

2

MTD 750-1000

Spacer: 80 X 1.10 X 1.322 LG

Note: Not shown

$4.49

$

In Stock, Qty 7

0

2

MTD 750-1349A

Spacer: .79 x 1.82 x .5

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

2

MTD 756-04216

Pulley:V TYP:5.39 DIA

Note: Not shown

$33.99

$

In Stock, only 1 left!

0

3

MTD 683-0254B

Hanger Bracket Assembly

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

4

MTD 683-04180

54" Deck Weldment
(Superseded to 983-04482-0716)

Variations

MTD 683-04180-0716

SHELL-54" DECK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

MTD 683-04182

Idler Arm Assembly
(Superseded to 683-04182-0637)

Variations

MTD 683-04182-0637

Idler Arm Assembly, 54" Black - POWDER BLACK (0637)

$75.99

$

In Stock, only 2 left!

0

$75.99

$

In Stock, only 2 left!

0

6

MTD 703-2093

Inner Rear Baffle
(Superseded to 703-2093C)

Variations

MTD 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

MTD 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

7

MTD 703-3279

Chute Deflector Stop

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

8

MTD 710-0216

Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

9

MTD 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

10

MTD 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-0528

Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 11

0

14

MTD 710-0623

Screw, 3/8-16 x.750

$4.49

$

In Stock, only 2 left!

0

15

MTD 710-0650

Screw, 5/16-18 x.875

$3.99

$

In Stock, Qty 20+

0

15

MTD 736-3010

Washer, Flat, .407 x .812 x .135

Note: Not shown

$4.99

$

In Stock, only 1 left!

0

15

MTD 736-0275

Washer, Flat,.344 x.688 x.065

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0

16

MTD 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-1260A

Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3168

Bolt, Carriage, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-3178

Bolt, Carriage, 3/8-16 x.750

$4.49

$

In Stock, Qty 20+

0

21

MTD 711-1737

Pin, Roller,.5" Dia. x 10.06

$25.99

$

In Stock, Qty 6

0

22

MTD 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 5

0

25

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

27

MTD 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

29

MTD 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 9

0

31

MTD 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

32

MTD 714-0111

Pin, Cotter, 3/32 x 1.00

$4.99

$

In Stock, Qty 13

0

33

MTD 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

34

MTD 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

35

MTD 721-04041

Hose Coupler
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

36

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

37

MTD 732-0306A

Spring,.531OD x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

38

MTD 732-04247

Spring, Ext.,.850 Dia. x 6.415

$11.99

$

In Stock, only 4 left!

0

39

MTD 732-0934

Spring, Ext., 1.15 Dia. x 5.99

$11.99

$

In Stock, only 1 left!

0

40

MTD 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

41

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

42

MTD 736-0225

Washer, Lock 5/8 Int. Tooth

$4.49

$

In Stock, only 2 left!

0

43

MTD 737-04003B

Port, Water
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

44

MTD 736-0300

Washer, Flat,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

48

MTD 738-1229A

Screw,.625 x 2.50 x 1/2-13

$12.99

$

In Stock, only 4 left!

0

49

MTD 738-3056

Bolt, Shoulder, 3/8-16; 4.96 x 2.50
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

50

MTD 742-0677A

Blade, 18.5"
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

51

MTD 747-04384

Upstop Rod

$

$

Not available

52

MTD 747-1116

Rod, Deck Release Handle

$12.99

$

In Stock, Qty 6

0

53

MTD 747-1324

Rod, Deck Adjust

$58.99

$

In Stock, only 3 left!

0

54

MTD 750-0151

Spacer,.550 ID x.755 OD x 1.1
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

55

MTD 754-0642

V-Belt
(Superseded to 954-0642)

$82.99

$

In Stock, Qty 8

0

56

MTD 756-04129

Pulley, Idler, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

58

MTD 783-04462

Lift Bracket
(Superseded to 783-04462A)

$10.99

$

Usually ships in 3-6 days

0

59

MTD 783-04690A

Skirt, Deck
(Superseded to 783-04690B)

Variations

MTD 783-04690A-0637

Deck Skirt, 54" Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 3 left!

0

$36.99

$

Usually ships in 3-6 days

0

60

MTD 783-05492

Cover, Belt, RH
(Superseded to 783-04691)

Variations

MTD 783-05492-0638

CVR:BELT:RH 54" - MTD/TROY-BILT RED (0638)

$107.99

$

In Stock, only 1 left!

0

$86.99

$

In Stock, only 1 left!

0

61

MTD 783-05493

Cover, Belt, LH
(Superseded to 783-04692)

Variations

MTD 783-05493-0638

Belt Cover, LH 54" Deck - MTD/TROY-BILT RED (0638)

$96.99

$

In Stock, only 1 left!

0

$96.99

$

In Stock, only 1 left!

0

62

MTD 783-04013A

Bracket, Stabilizer, Pulley

Variations

MTD 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

MTD 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

63

MTD 631-04070A

Chute Ass’y, Side Discharge
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

64

MTD 783-05030

Chute Mounting Bracket

$29.99

$

In Stock, Qty 5

0

65

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 9

0

66

MTD 731-05559A

Deflector Chute
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

67

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

68

MTD 783-04726

Bracket, Idler, Stationary

Variations

MTD 783-04726-0637

Idler Pulley Bracket - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

MTD 783-04726-4008

Idler Pulley Bracket - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0
