13AP61RH848 (LX 468) - Toro Lawn Tractor (2009) SEAT, FENDER AND DECK LIFT ASSEMBLY Parts Diagram

Lawn Tractor

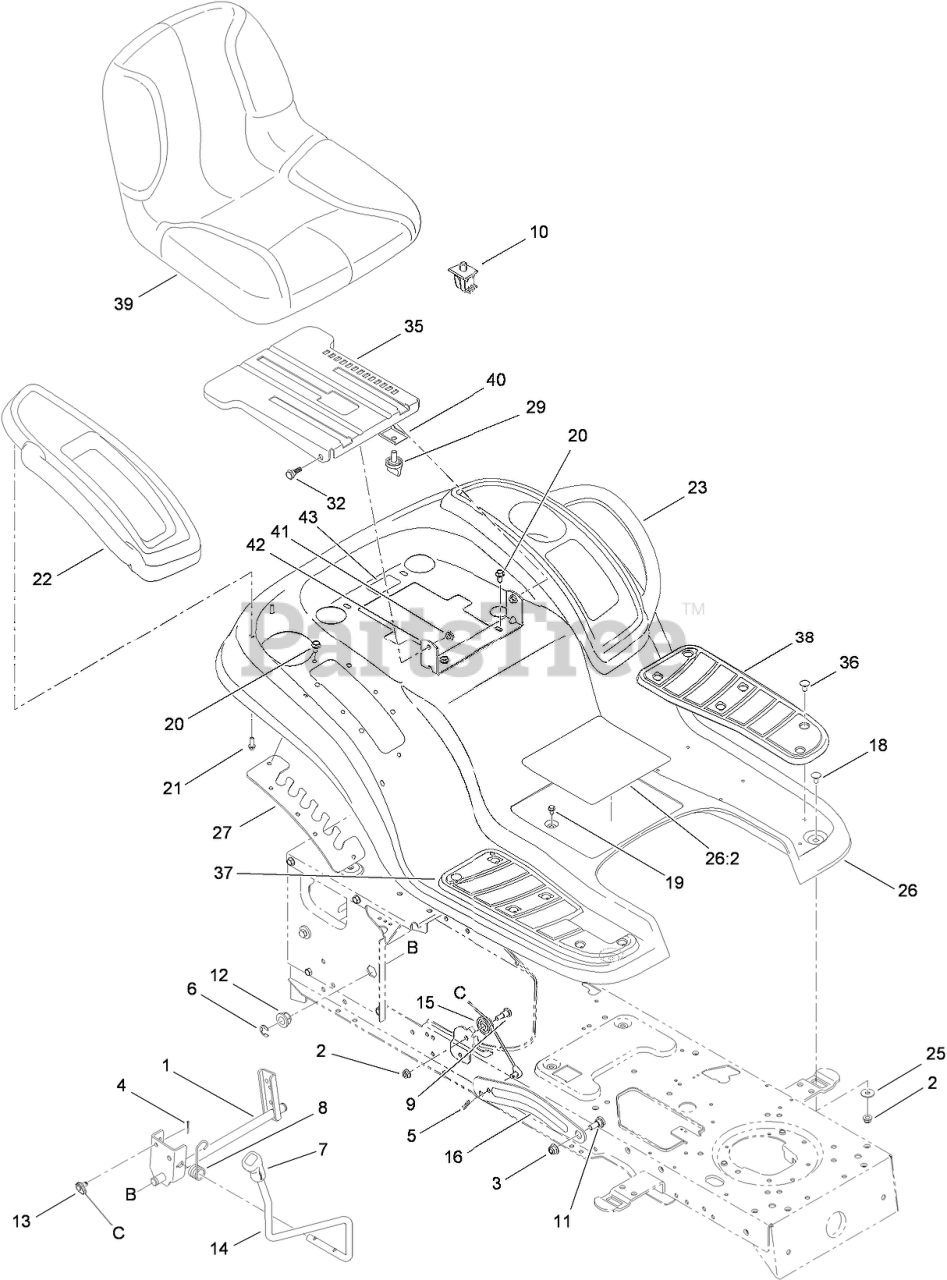

SEAT, FENDER AND DECK LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 112-5969

LIFT SHAFT ASM

$78.99

$

Usually ships in 3-6 days

0

2

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

3

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

4

Toro 112-0459

PIN-COTTER

$

$

Not available

5

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

6

Toro 112-0586

RING-E

$7.99

$

Usually ships in 3-6 days

0

7

Toro 112-0585

GRIP-HANDLE

$

$

Not available

8

Toro 112-0477

SPRING-TORSION

$

$

Not available

9

Toro 112-0433

SPACER

$

$

Not available

10

Toro 110-9889

Switch-Seat

$80.99

$

Usually ships in 3-6 days

0

11

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

12

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

13

Toro 112-0374

CABLE-LIFT

$41.99

$

In Stock, only 1 left!

0

14

Toro 112-5970

HANDLE-LIFT

$

$

Not available

15

Toro 112-0502

PULLEY-ROLLER

$12.99

$

Usually ships in 3-6 days

0

16

Toro 112-6165

ARM-LIFT
(Superseded to 119-9106)

$

$

Not available

18

$

$

Not available

19

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

20

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

21

Toro 112-0509

SCREW-TAP

$10.99

$

In Stock, only 3 left!

0

22

Toro 112-6212

COVER-FENDER, RH

$

$

Not available

23

Toro 112-6065

COVER-FENDER, LH (W/CUPHOLDER)

$

$

Not available

25

Toro 112-0582

WASHER-FLAT

$

$

Not available

26

Toro 112-6294

FENDER WITH DECAL

$

$

Not available

26:2

Toro 112-6290

DECAL-SAFETY

$

$

Not available

27

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

29

$10.99

$

In Stock, only 2 left!

0

32

Toro 112-0575

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

35

Toro 112-6214

BRACKET-MOUNT, SEAT

$

$

Not available

36

Toro 112-0549

CLIP-RATCHET, FASTENER

$7.49

$

Usually ships in 3-6 days

0

37

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

38

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

39

Toro 112-6215

SEAT-HIGH

$

$

Not available

40

Toro 112-6216

BRACKET-KNOB, ADJUSTMENT

$10.99

$

Usually ships in 3-6 days

0

41

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

42

Toro 112-6217

BRACKET-PIVOT, SEAT

$32.99

$

Usually ships in 3-6 days

0

43

Toro 112-6282

DECAL-TORO HOTLINE

$6.99

$

Usually ships in 3-6 days

0
