13AP61RH048 (LX 468) - Toro Lawn Tractor (SN: 1C108H20348 & Above) (2008) FUEL SYSTEM ASSEMBLY KOHLER SV715-0016 Parts Diagram

Lawn Tractor

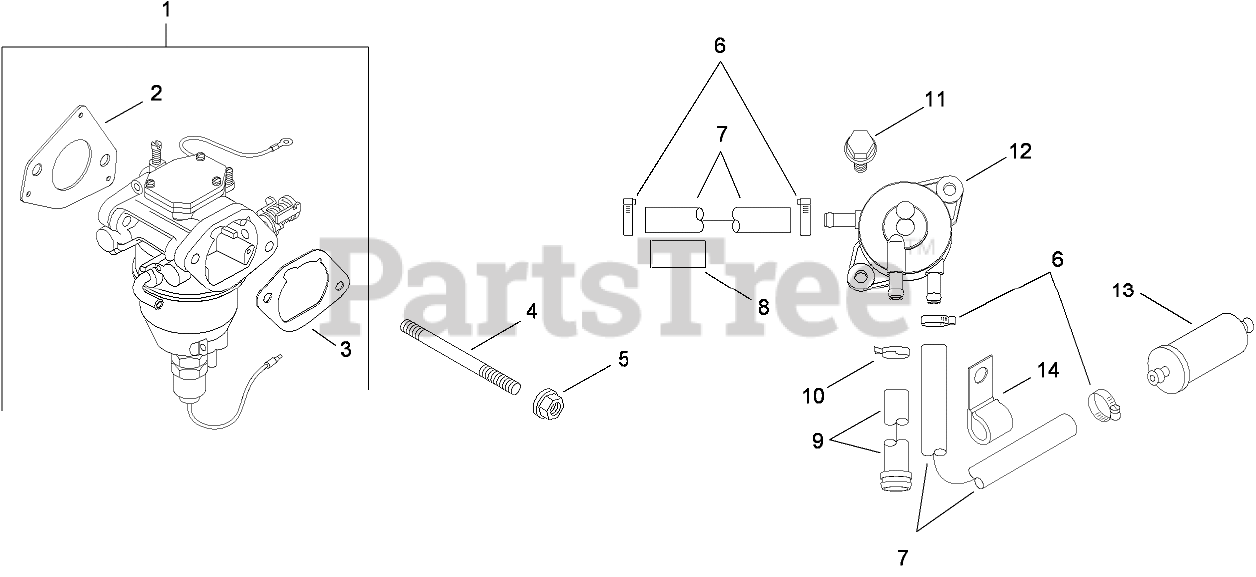

FUEL SYSTEM ASSEMBLY KOHLER SV715-0016 Parts Diagram

  • Title
1

Kohler 32 853 07-S

CARBURETOR KIT W/GASKETS (INCLUDES 2-3)
(Superseded to 32 853 11-S)

Note: Obtain parts from www.kohlerplus.com

$359.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 52-S

GASKET-CARBURETOR
(Superseded to 24 041 91-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 8

0

3

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

4

Kohler M-629105-S

STUD (M6X1.0X106)
(Superseded to 25 072 25-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 2 left!

0

5

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

6

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

7

Kohler 25 111 34-S

LINE-FUEL (24-CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, Qty 6

0

8

Kohler 25 431 10-S

SLEEVE-ABRASION, ANTI
(Superseded to 25 431 12-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 1 left!

0

9

Kohler 32 326 02-S

HOSE-FUEL PUMP W/CLAMP (INCLUDES 10)
(Superseded to 32 326 07-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

10

Kohler 25 237 01-S

CLAMP-HOSE

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

11

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 8

0

13

Kohler 25 050 22-S

FILTER-FUEL

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

14

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 5

0

15

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Not illustrated

$116.99

$

In Stock, only 1 left!

0

16

Kohler 24 757 38-S

GASKET REPAIR/SERVICE KIT

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 1 left!

0

17

Kohler 24 757 44-S

FLOAT REPAIR KIT

Note: Not illustrated

$94.99

$

In Stock, only 1 left!

0

18

Kohler 24 757 45-S

SOLENOID VALVE REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$246.99

$

In Stock, only 1 left!

0

19

Toro 24-757-46-S

REPAIR OVERHAUL KIT

Note: Not illustrated

$

$

Currently unavailable
