13AP61RH048 (LX 468) - Toro Lawn Tractor (SN: 1C108H20348 & Above) (2008) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER SV715-0016 Parts Diagram

Lawn Tractor

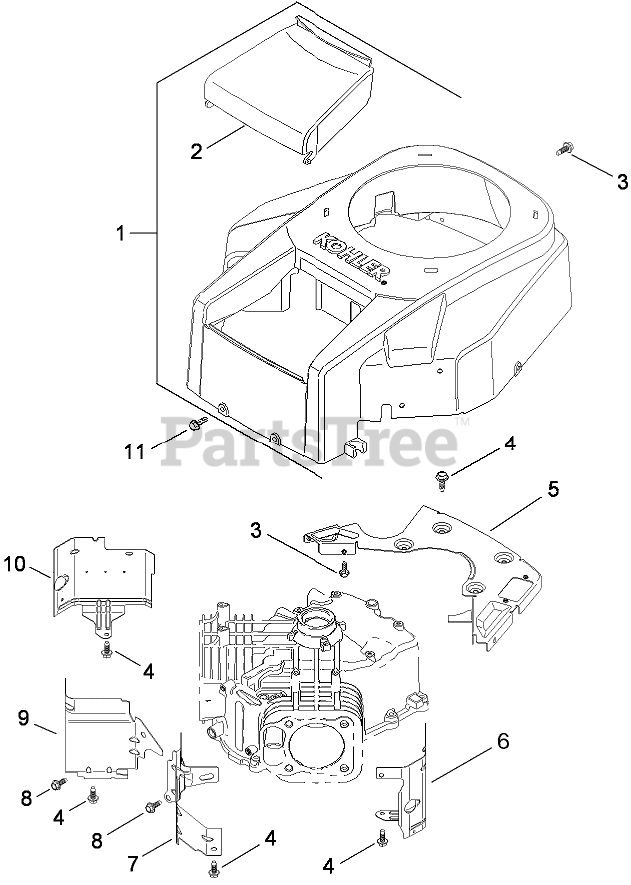

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER SV715-0016 Parts Diagram

  • Title

1

Kohler 32 027 03-S

HOUSING BLOWER KIT

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 32 096 08-S

COVER-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 8

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

5

Kohler 32 146 05-S

PLATE-BACKING

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 32 063 12-S

BAFFLE-BARREL, CYLINDER (No.2 SIDE)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0

7

Kohler 32 063 02-S

BAFFLE-VALLEY (No.2 SIDE)
(Superseded to 24 063 94-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

8

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

9

Kohler 32 063 03-S

BAFFLE-VALLEY (No.1 SIDE)
(Superseded to 24 063 93-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

10

Kohler 32 063 10-S

BAFFLE-BARREL, CYLINDER (No.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0

11

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 4 left!

0

13

Kohler 25 086 158-S

SCREW-FLANGED, THREAD FORMING (M6X1.0X11)
(Superseded to 25 086 406-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 9
