13AP61RH048 (LX 468) - Toro Lawn Tractor (SN: 1C108H20348 & Above) (2008) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER SV715-0016 Parts Diagram

Lawn Tractor

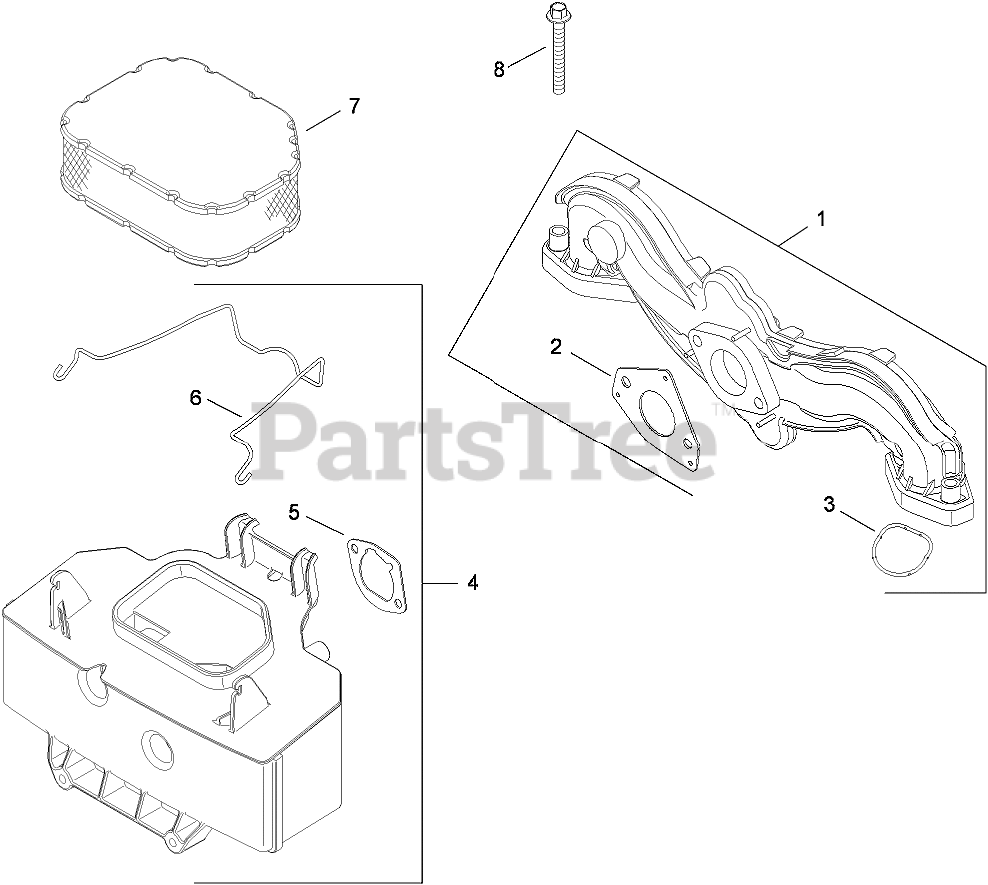

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER SV715-0016 Parts Diagram

  • Title
1

2416491-S

MANIFOLD, INTAKE (INCLUDES 2,3)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 24 041 52-S

GASKET-CARBURETOR
(Superseded to 24 041 91-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 8

0

3

Kohler 24 153 27-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

4

Kohler 32 094 04-S

AIR CLEANER BASE KIT (INCLUDES 5-6)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

6

Kohler 32 344 02-S

LATCH-ELEMENT, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 32 083 03-S

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, Qty 6

0

8

Kohler M-651040-S

SCREW-FLANGE (M6X1.0X40)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0
