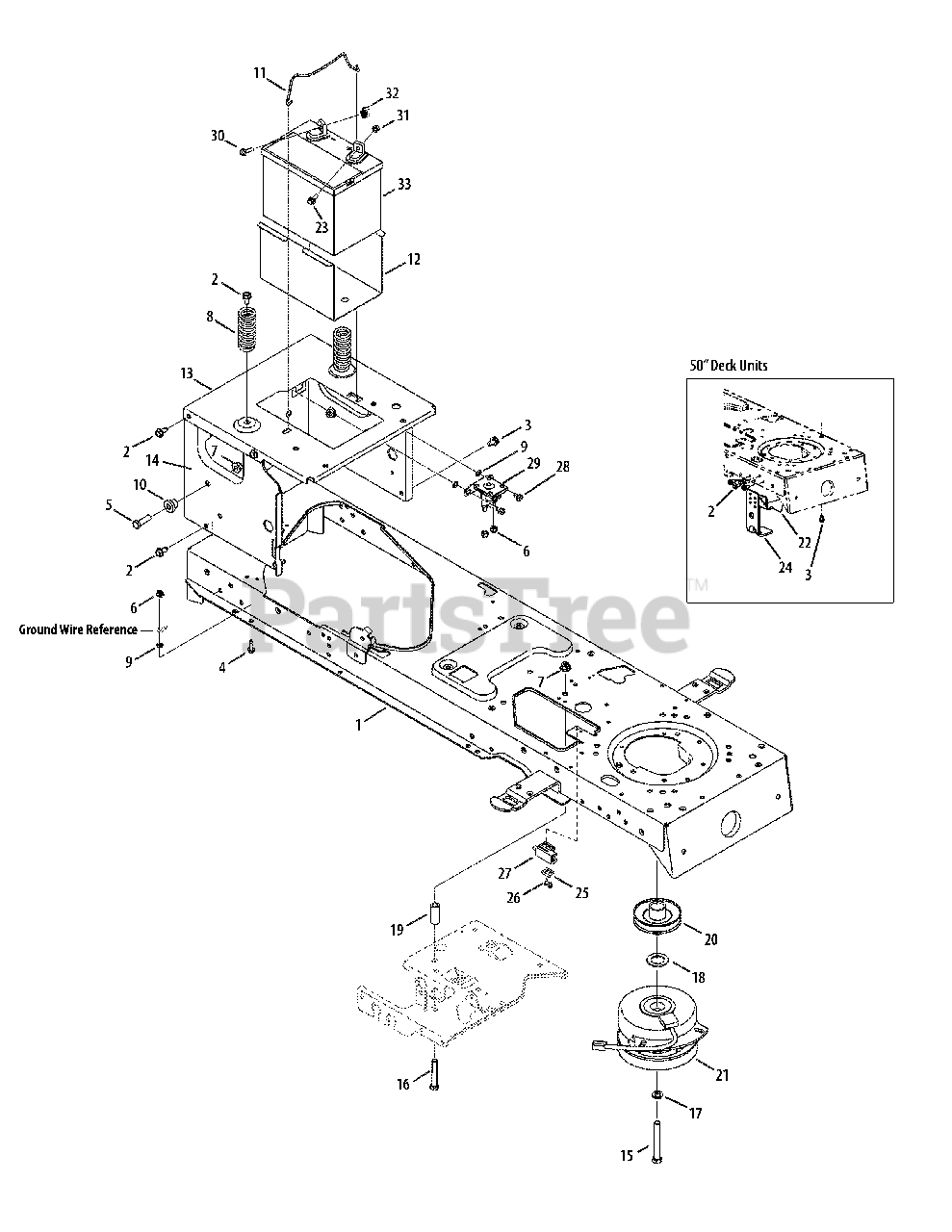

13AP61KP011 - Troy-Bilt Horse Lawn Tractor (2009) Frame & Electric PTO Parts Diagram

Horse Lawn Tractor

Frame & Electric PTO Parts Diagram

  • Title

1

Troy-Bilt 683-04173B-0637

Frame Assembly, Lower

$

$

Not available

2

Troy-Bilt 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

4

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 732-04035

Spring, Compress., 1.28 x 3.125

$10.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 936-0222

Washer, Lock, 1/4, External
(Superseded to 736-0222)

$

$

Not available

10

Troy-Bilt 738-04058

Spacer, Shoulder,.38 x 1.0 x.70

$4.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 783-0349-0637

Battery Tray

$

$

Not available

13

Troy-Bilt 783-06089-0637

Seat Bracket, Frame

$57.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 783-04809C-0637

Frame, Upper

$

$

Not available

15

Troy-Bilt 710-04379A

Screw, 7/16-20, 3.50, Gr5, Lock

$6.49

$

In Stock, only 3 left!

0

16

Troy-Bilt 710-3011

Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 19

0

17

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

18

Troy-Bilt 736-0277

Washer, Flat, 1.031 x 1.620 x.095

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 748-0415B

Spacer,.385 ID x.635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

20

Troy-Bilt 756-0978B

Pulley, Engine, 3.56 Diameter

$66.99

$

In Stock, Qty 13

0

21

Troy-Bilt 917-04174A

PTO Clutch, Electric (50" Deck Units)

$679.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-04419B-0637

Clutch Bracket

$14.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 738-1132

Screw, Shoulder,.250 x.15, 1/4-20

$5.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 783-04467-0637

Deck Bracket, Up-Stop (50" Deck)

$37.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 910-0224

AB Screw, #10-16 x.500

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 925-04039

Switch

$24.99

$

In Stock, Qty 7

0

28

Troy-Bilt 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 725-04439

Solenoid, 12V, 100 Amp
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 710-04666

Hex Flange Bolt, 1/4-20,.75

$6.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

32

Troy-Bilt 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 925-1707D

Battery, 245 CCA

$

$

Not available
