13AP615P755 - Yard-Man Lawn Tractor (2005) (Walmart) Fender Assembly Parts Diagram

Lawn Tractor

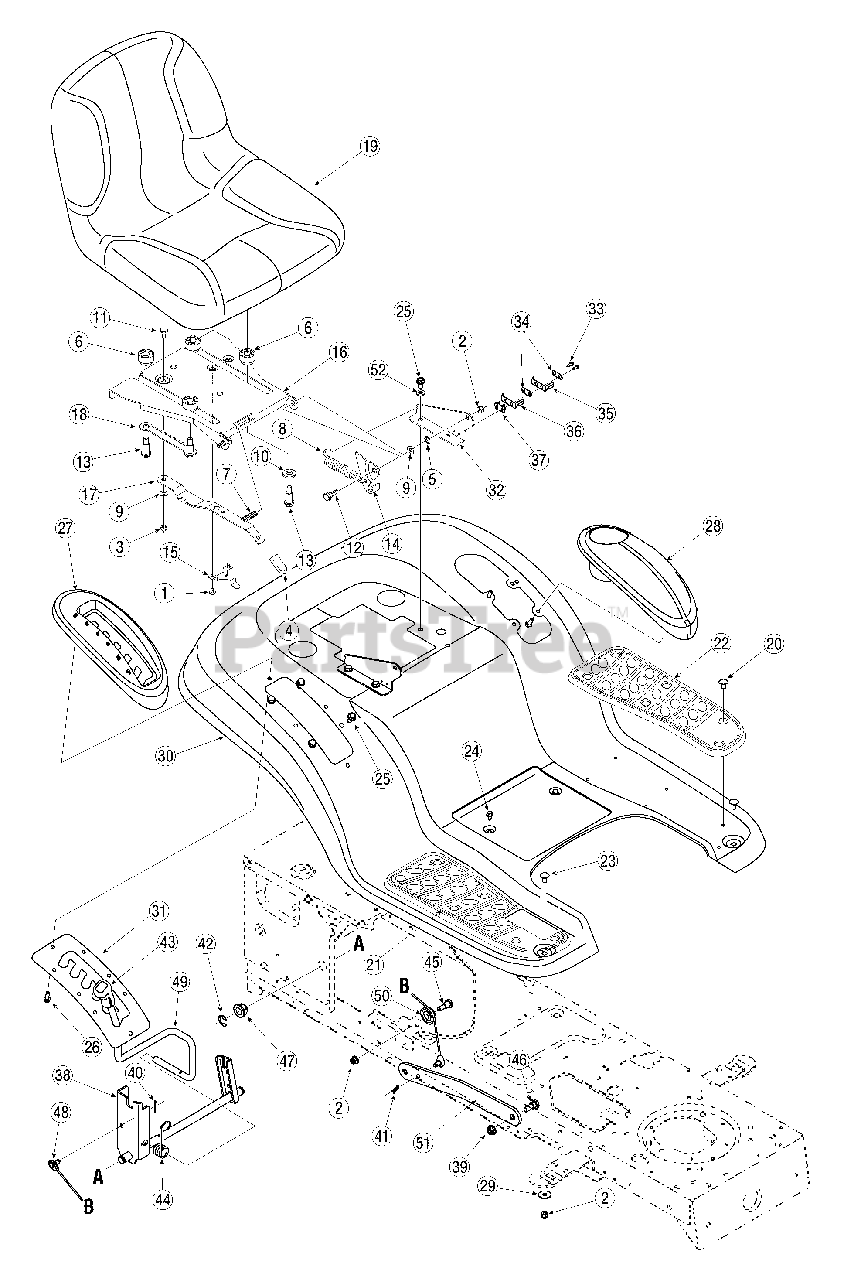

Fender Assembly Parts Diagram

  • Title

1

MTD 710-1268

Screw, #10-16 x.375

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-04063

Nut, Flange Lock, 5/16-18, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

4

MTD 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

5

MTD 726-0201

Nut, Speed,.3125 ID

$6.99

$

In Stock, only 2 left!

0

6

MTD 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

7

MTD 732-0499

Compression Spring,.41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

MTD 732-1184

Spring, Extension,.84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

9

MTD 736-0275

Wash, Flat,.344 x.688 x.065

$6.99

$

Usually ships in 3-6 days

0

10

MTD 736-3019

Wash, Flat,.531x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

11

MTD 738-0137A

Screw, Shoulder,.340 x.285,1/4-20

$10.99

$

In Stock, Qty 10

0

12

MTD 738-0296

Screw, Shoulder,.437 x.268, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 738-0966

Screw, Shoulder,.50 x.925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

14

MTD 783-0209C

Seat Bracket, Lift
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

15

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

16

MTD 783-0738B

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

MTD 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738B-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738B-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

17

MTD 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

MTD 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

19

MTD 757-04012B

High Back Seat, Yellow
(Superseded to 757-04012C)

$

$

Not available

20

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

21

MTD 735-0656

RH Foot Pad, Rubber

$25.99

$

Usually ships in 3-6 days

0

22

MTD 735-0657

LH Foot Pad, Rubber

$26.99

$

Usually ships in 3-6 days

0

23

MTD 710-0260A

Bolt, Carriage, 5/16-18,.62, Gr1

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

27

MTD 731-1990

Cover, Lift Lever
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

28

MTD 731-1993A

Cover, w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

29

MTD 736-3078

Washer, Flat,.344 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

30

MTD 783-04333A

Fender

Variations

MTD 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

MTD 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04333A-4008

No Longer Available FENDER - 4 - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

31

MTD 783-0677

Adjustment Bracket, Lift
(Superseded to 783-0677B-0637)

Variations

MTD 783-0677-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 783-1489A

Mounting Bracket, Seat
(Superseded to 783-1489C)

Variations

MTD 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

33

MTD 710-0227

Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

34

MTD 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

35

MTD 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

36

MTD 725-1439

Spring Switch, Inner

$8.49

$

In Stock, Qty 10

0

37

MTD 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

38

MTD 683-04079

Shaft Assembly, Lift
(Superseded to 753-06260)

Variations

MTD 683-04079-0637

KIT-SERVICE LIFT S - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 683-04079-4008

KIT-SERVICE LIFT S - WINE RED (4008)

$57.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

39

MTD 712-04065

Nut, Flange Lock, 3/8-16, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

40

MTD 714-0104

Pin, Cotter,.072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

41

MTD 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

42

MTD 716-0106A

Ring, E Type,.625 Dia.

$5.49

$

In Stock, only 2 left!

0

43

MTD 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

44

MTD 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

45

MTD 738-0138A

Screw, 5/16-18 x.620 Gr2

$6.99

$

In Stock, only 2 left!

0

46

MTD 738-0380

Screw, Shld,.50 x.27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

47

MTD 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

48

MTD 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

49

MTD 747-04155

Handle, Lift

$

$

Not available

50

MTD 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

51

MTD 783-0678A

Arm, Lift
(Superseded to 783-0678C)

Variations

MTD 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

MTD 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

52

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0
