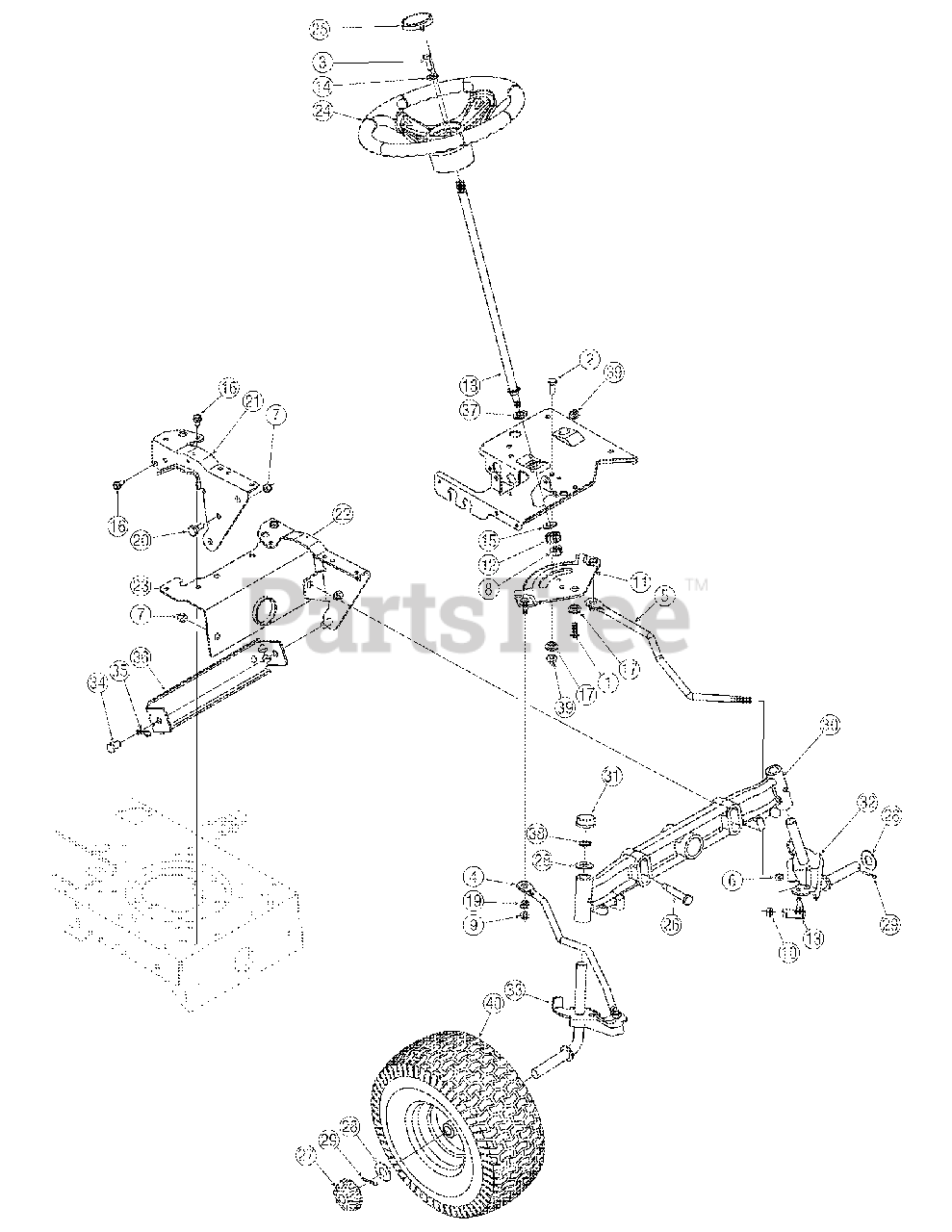

13AP60TP766 - Troy-Bilt Horse Lawn Tractor (2006) Steering & Front Axle Parts Diagram

Horse Lawn Tractor

Steering & Front Axle Parts Diagram

  • Title

1

Troy-Bilt 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Screw, 5/16-18, 1.00,

$6.99

$

In Stock, Qty 5

0

4

Troy-Bilt 711-1408

Link, Drag, RH

$

$

Not available

5

Troy-Bilt 711-1409A

Link, Drag, LH

$

$

Not available

6

Troy-Bilt 712-0214

Nut, Hex Lock, 3/8-24

$6.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18,

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-3004

Washer, Flat, .406 x .875 x

$4.99

$

In Stock, Qty 7

0

15

Troy-Bilt 736-3084

Washer, Flat, .51 x 1.12 x

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-1260A

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 738-04154

Spacer, Shoulder, .38 x 1.00

$5.49

$

In Stock, Qty 17

0

18

Troy-Bilt 738-1001A

Shaft, Steering, .625 OD x

$75.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 738-0143

Screw, Shoulder, .498 x .340

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 783-0726E

Pivot Bracket, Support RH

Variations

Troy-Bilt 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

22

Troy-Bilt 783-0727D

Pivot Bracket, Support LH

Variations

Troy-Bilt 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

23

Troy-Bilt 783-0728

Pivot Bracket, Bar
(Superseded to 783-0728B)

Variations

Troy-Bilt 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 631-04008

Steering Wheel
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 731-04681

Steering Wheel Cap

$14.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 738-04128

Shoulder Screw, .5 x 2.380,

$7.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0316

Flat Washer, .78 x 1.589 x

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 719-04105

Pivot Bar, Cast Iron
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

Note: (not shown)

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-04693

Hub Cap

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 638-04003

LH Axle Assembly, .750
(Superseded to 638-04003AP)

$

$

Not available

33

Troy-Bilt 638-04004

RH Axle Assembly, .750
(Superseded to 938-04004A)

$71.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 711-0332

Pin, Clevis, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

35

Troy-Bilt 714-04023

Cotter Pin, Internal, .080 x

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 783-0720A

Adjustment Bracket, Front
(Superseded to 783-0720C)

Variations

Troy-Bilt 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 741-0656A

Hex Flange Bearing
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 726-04035

Push Nut

$6.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 634-05067-0911

Wheel Assembly Complete, 15

$185.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 734-1731-0901

Tire Only 15 x 6 x 6

$49.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 934-04081-0662

Rim
(Superseded to 634-05066-0662)

Note: (Includes bearings & valve stem) (not shown)

$105.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 934-0255

Valve, tubeless Air

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0
