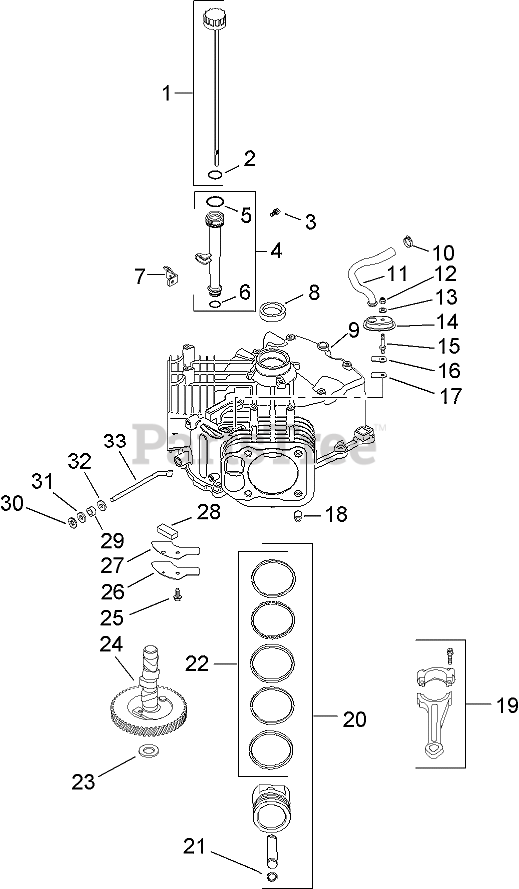

13AP60RP544 (LX 500) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) CRANKCASE ASSEMBLY Parts Diagram

Lawn Tractor

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 32 038 01S

Dipstick Kit (Includes2)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 12 153 03S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro M545016S

Screw-Hex Flange, Thread Forming (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 12 123 04S

Tube-Oil Fill (Includes5-6)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 12 153 02S

O Ring-Fill Tube, Upper Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 12 153 01S

O Ring-Fill Tube, Lower Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 24 126 19S

Bracket-Oil Fill Tube

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 24 032 01S

Seal-Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Crankcase (USE: Short Block 32 522 03)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Crankcase (USE: Short Block 32 522 03)

Note: Not serviced separately

$

$

Not available

10

Toro 25 237 14S

Clamp-Hose

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 32 326 04S

Hose-Breather

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro M547050S

Nut-Lock, Hex (M5x0.8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 32 468 01S

Washer-Sealing

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro 32 081 02S

Housing-Breather

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 32 072 02S

Stud-Breather Cover

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

16

Toro 24 018 04S

Retainer-Breather Reed

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

17

Toro 24 402 05S

Reed-Breather

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

18

Toro 24 380 16S

Pin-Locating

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

19

Toro 24 067 13S

Rod-Connecting (Standard)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

20

Toro 32 874 06S

Piston w/Ring Set (Standard) (Includes21-22)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

21

Toro 24 018 01S

Retainer-Piston Pin

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

22

Toro 24 108 11S

Ring Set (Standard)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 10S

Shim-Camshaft (Yellow)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 09S

Shim-Camshaft (Red)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 13S

Shim-Camshaft (Black)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 07S

Shim-Camshaft (White)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 08S

Shim-Camshaft (Blue)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 11S

Shim-Camshaft (Green)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 422 12S

Shim-Camshaft (Gray)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

24

Toro 32 012 01S

Camshaft Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

25

Toro M645016S

Screw-Hex Flange, Thread Forming (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

26

Toro 32 096 04S

Cover-Breather

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

27

Toro 32 041 01S

Gasket-Breather Cover

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

28

Toro 32 050 01S

Filter-Breather

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

29

Toro 28 032 09S

Seal-Governor Cross Shaft

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

30

Toro 24 018 09S

Ring-Retainer

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

31

Toro M931010S

Washer-Flat (8 mm)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

32

Toro 24 468 15S

Washer-Flat (1/4)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

33

Toro 24 144 38S

Shaft-Governor Cross

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
