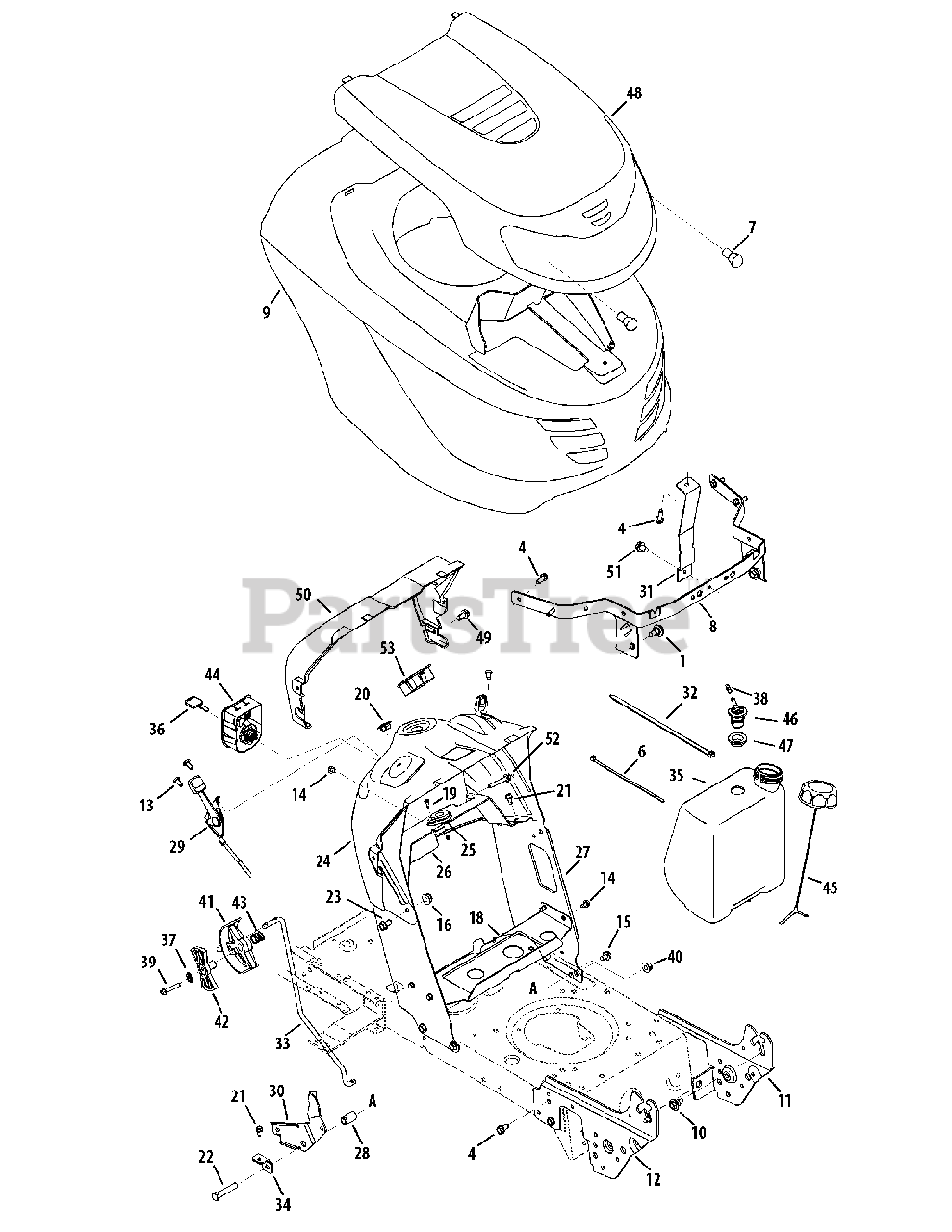

13AN79GS897 - Yard-Man Lawn Tractor (2012) Hood & Grille Parts Diagram

Lawn Tractor

Hood & Grille Parts Diagram

  • Title

1

MTD 738-04091A

Shoulder Screw 5/16-18, .43 x .29

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-04484

Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Cable Tie 3/16 x 7.4

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-0963

Miniature Lamp 12V Socket

$7.49

$

In Stock, only 1 left!

0

8

MTD 783-04606C-0606

Hood Pivot Bracket

$45.99

$

Usually ships in 3-6 days

0

9

MTD 931-06537

Hood

$154.99

$

Usually ships in 3-6 days

0

10

MTD 738-04091A

Shoulder Screw 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0606

Left Support Pivot Bracket

$37.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0606

Right Support Pivot Bracket

$39.99

$

Usually ships in 3-6 days

0

13

MTD 710-04483

Self-Tapp Screw 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

14

MTD 710-05070

Self-Tapp Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

15

MTD 710-0604A

Screw 5/16-18 x .675

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

18

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

19

MTD 910-0224

Screw, #10-16 x .50

$3.99

$

In Stock, Qty 20+

0

20

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

21

MTD 710-1652

Tap Screw 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-3144

Hex Screw 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-3025

Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

24

MTD 931-08426

Upper Dash
(Superseded to 931-08426C)

$45.99

$

Usually ships in 3-6 days

0

25

MTD 741-0587

Bearing .628 ID x 1.36

$4.49

$

In Stock, Qty 10

0

26

MTD 783-06785A-0606

Steering Support Bracket
(Superseded to 783-06785C-0606)

$8.99

$

Usually ships in 3-6 days

0

27

MTD 783-06811-0606

Dash, Lower
(Superseded to 783-06811E-0606)

$61.99

$

Usually ships in 3-6 days

0

28

MTD 750-04465C

Flange Spacer

$4.49

$

Usually ships in 3-6 days

0

29

MTD 746-04367

Choke/Throttle Cable Ass’y (Sgl. Cyl.)
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

30

MTD 783-06991-0637

Speed Latch - No RMC

Note: RMC® (Reverse Mowing Control)

$9.49

$

In Stock, only 1 left!

0

31

MTD 783-06117-0637

Hood Support Brkt.

$

$

Not available

32

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

33

MTD 747-05398

Speed Selector Control Rod

$11.99

$

In Stock, only 1 left!

0

34

MTD 783-06823

Speed Latch

$17.99

$

In Stock, only 2 left!

0

35

MTD 951-04304

Fuel Tank 1.36 gal.
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

36

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

37

MTD 736-3006

Lockwasher 1/4ID

$6.49

$

Usually ships in 3-6 days

0

38

MTD 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0

39

MTD 710-0778

Hex Washer Scr. 1/4-20 x 1.50

$4.49

$

In Stock, only 1 left!

0

40

MTD 712-04065

Hex L-Flg. Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

41

MTD 731-07885B

Shift Lever

$11.99

$

In Stock, only 3 left!

0

42

MTD 731-07985

Index Control

$

$

Currently unavailable

43

MTD 732-04877

Compression Spring .685 OD x .63

$4.49

$

In Stock, only 2 left!

0

44

MTD 925-04230B

3 Position Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

45

MTD 951-12179A

Cap-Fuel
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

46

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

47

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

48

MTD 931-04308

Hood Scoop

$104.99

$

Usually ships in 3-6 days

0

49

MTD 710-0895

Hi-Lo Screw 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

50

MTD 931-06470A

Collar

$43.99

$

Usually ships in 3-6 days

0

51

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-05237

Hex Screw 1/4-20 x 1.5

$3.99

$

In Stock, only 1 left!

0

53

MTD 731-05232

Ammeter Plug

$8.49

$

In Stock, only 2 left!

0

MTD 725-04432G

Harness
(Superseded to 925-04432M)

Note: Not shown

$143.99

$

Usually ships in 3-6 days

0
