13AN78BSA66 (42 B) - Troy-Bilt Bronco 42" Lawn Tractor (2023) Drive Parts Diagram

Bronco 42" Lawn Tractor

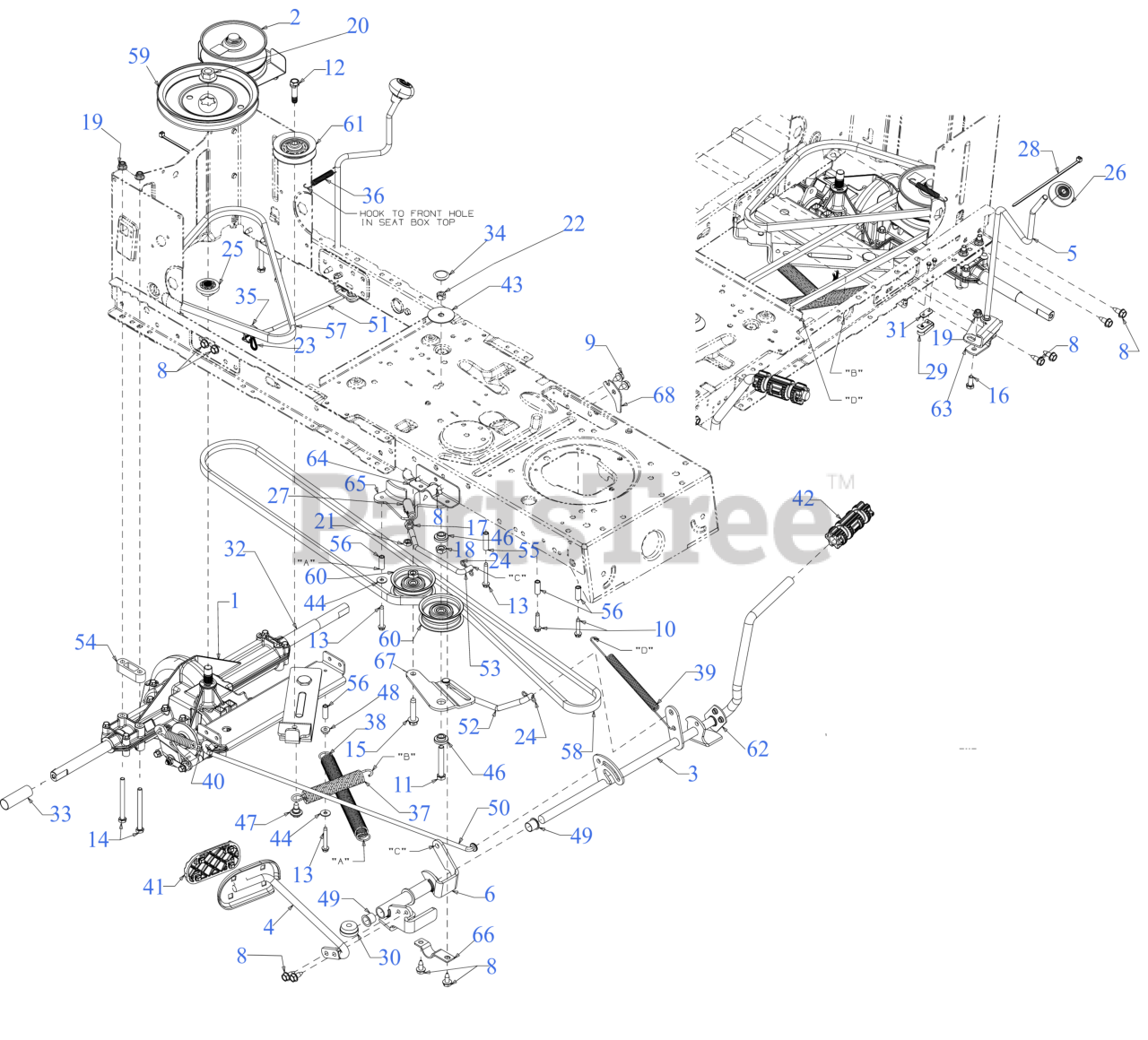

Drive Parts Diagram

  • Title
1

Troy-Bilt 618P09815

TRANSAXLE

Note: (See Separate Breakdown)

$453.99

$

Usually ships in 3-6 days

0

1.1

Troy-Bilt 753-06662

KIT:REPL:IDLER BRKT

Note: (Not Shown)

$22.99

$

In Stock, only 4 left!

0

1.1

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1.1

Troy-Bilt 710-1260A

SCREW 5/16-18 x .750

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1.1

Troy-Bilt 712-04065

NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1.1

Troy-Bilt 738-0322A

SHIELD SCREW

Note: (Not Shown)

$6.99

$

In Stock, only 3 left!

0

1.1

Troy-Bilt 783-06568A

TRANSMISSION BRACKET

Note: (Not Shown)

$23.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

2

Troy-Bilt 710-0778

SCREW 1/4-20 x 1.50"

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 718-04261

BEARING CUP

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 941-0600

BALL BEARING

Note: (Not Shown)

$25.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0627

SCREW 5/16-24 x .750 GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 736-0343

WASHER-5/16 x 1.25X 1.27

Note: (Not Shown)

$4.49

$

In Stock, Qty 7

0

2

Troy-Bilt 656P05011

VARIABLE SPEED PULLEY (4.75 OD)

Note: (Not Shown)

$103.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 783-06587A

VARIABLE SPEED BRACKET

Note: (Not Shown)

$34.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 783-06227A

TRANSMISSION BELT KEEPER

Note: (Not Shown)

$16.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 947-04201B

PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$40.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 647-04203A

PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 647-04203A-0637

Autodrive Pedal Assembly - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 8

0

$16.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 647-04266A

SHIFT LEVER ASSEMBLY

$26.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 683-04736

BRACKET ASSEMBLY

$40.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

11

Troy-Bilt 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

12

Troy-Bilt 710-1007

SCREW 3/8-16 x 1.500

$6.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-1026

SCREW 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

14

Troy-Bilt 710-1207

SCREW 5/16-18 x 3.50 GR5

Note: (11/1/22 & After)

$6.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 710-1266

SCREW 5/16-18X3.5 GR5

Note: (11/1/22 & Before)

$9.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-1858A

SCREW 3/8-16 x 1.75

$3.99

$

In Stock, Qty 11

0

16

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0214

HEX NUT

Note: (11/1/22 & After)

$6.49

$

In Stock, only 3 left!

0

17

Troy-Bilt 712-0241

HEX NUT 3/8-24

Note: (11/1/22 & Before)

$4.49

$

In Stock, Qty 13

0

18

Troy-Bilt 912-0240

JAM NUT 7/16-20

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 712-0711

HEX JAM NUT 3/8X24

Note: (11/1/22 & After)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-0241

HEX NUT 3/8-24

Note: (11/1/22 & Before)

$4.49

$

In Stock, Qty 13

0

22

Troy-Bilt 712-3000

LOCK NUT 3/8-16

$4.49

$

In Stock, Qty 9

0

23

Troy-Bilt 914-0209

COTTER PIN

$3.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 718-04407

PULLEY HUB

$12.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 720-04028

SHIFT KNOB

$10.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 923-3018

BALL JOINT

$16.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 725-1644

SAFETY SPRING SWITCH

$9.99

$

In Stock, Qty 11

0

30

$10.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 926-0320

INSULATOR NUT PLATE

$6.99

$

In Stock, Qty 11

0

$6.49

$

In Stock, only 1 left!

0

$6.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 731-06330

DECK HOLE PLUG

$4.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 731-27275

SHIFT ROD BEARING

$4.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 732-04488

EXTENSION SPRING .38 OD x 3.25 LG

$6.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 732-04616B

EXTENSION SPRING .97 x 6.18

$14.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 732-05186

EXTENSION SPRING 1.00 x 11.125 x .095

$13.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 732-05438

EXTENSION SPRING .562 OD x 10.5

$13.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 732-0716D

EXTENSION SPRING

$13.99

$

In Stock, only 1 left!

0

41

$7.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 735-05051

BRAKE PEDAL PAD

$11.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

44

Troy-Bilt 736-3090

FLAT WASHER

$6.99

$

In Stock, Qty 11

0

46

Troy-Bilt 738-0372B

SHOULDER SPACER 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 738-04483

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 741-0495

NYLINER BEARING

$4.99

$

In Stock, Qty 20+

0

50

$12.99

$

In Stock, only 1 left!

0

51

$11.99

$

In Stock, only 3 left!

0

52

Troy-Bilt 747-05415

TRANSMISSION FOOT PEDAL ROD

$14.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 747-05596

IDLER ADJUSTMENT ROD

$13.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 948-0334

TRANSAXLE SPACER

$10.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 750-04456

SPACER:.260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

$9.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 954-04208A

V-BELT 5L x 40.75

$45.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 954-0467A

V-BELT 5L-90.93

$50.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 956-04002

V-PULLEY W/HUB 7.25 DIA

$27.99

$

In Stock, Qty 19

0

60

Troy-Bilt 756-04224

FLAT IDLER PULLEY 2.75 OD

$26.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 756-04325

V-IDLER PULLEY A x 3.06 OD

$24.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 783-04536B

PEDAL SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 783-04595A

SHIFT ADJUSTMENT BRACKET

$10.99

$

In Stock, only 4 left!

0

64

Troy-Bilt 783-06562A-0637

PEDAL FRAME BRACKET (RH)

$4.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 783-06592B

DOULE IDLER BRACKET

$16.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 783-06641A

SUPPORT BRACKET

$8.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 783-06769

IDLER BRACKET

$9.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 783-06807A-0637

PEDAL STOP PLATE

$4.49

$

Usually ships in 3-6 days

0
