13AN785T055 - Yard-Man Lawn Tractor (2014) Mower Deck 46-Inch Parts Diagram

Lawn Tractor

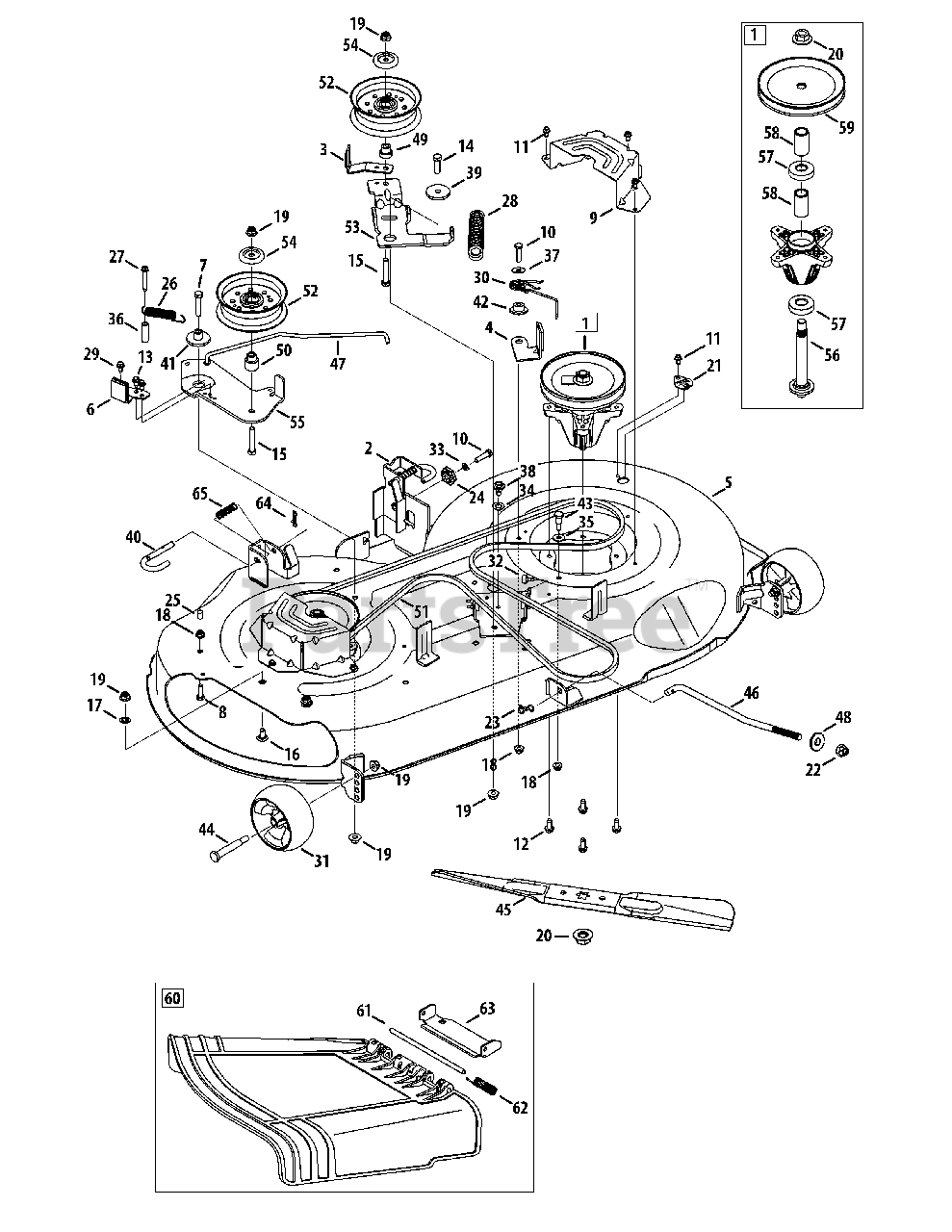

Mower Deck 46-Inch Parts Diagram

  • Title

1

MTD 918-06989

Spindle Assembly, Pul 6.74 Dia

$104.99

$

In Stock, only 4 left!

0

2

MTD 683-0254B-0709

Bracket Assembly, Deck Hanger, LH

$49.99

$

Usually ships in 3-6 days

0

3

MTD 783-08540-0637

Belt Keeper
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0

4

MTD 683-05095

Brake Bracket Assembly, LH
(Superseded to 753-09904A)

$106.99

$

In Stock, only 1 left!

0

5

MTD 983-05097-0709

Deck, 46

$

$

Not available

6

MTD 683-05102

Brake Bracket Assembly, RH
(Superseded to 983-05182B)

$99.99

$

In Stock, Qty 20+

0

7

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 783-08547-0709

Deck Belt Cover, 46

$14.99

$

Usually ships in 3-6 days

0

10

MTD 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 19

0

11

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-1652

Tap Screw, 1/4-20, 0.625

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 783-06464

Deck Wash Plug

$4.49

$

In Stock, Qty 14

0

22

MTD 712-04243

Nut, Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

23

MTD 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

24

MTD 917-04074

Gear, Deck Adjustment

$13.99

$

In Stock, Qty 9

0

25

MTD 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

26

MTD 732-04629

Extension Spring, .750 X 4.77

$28.99

$

In Stock, only 3 left!

0

27

MTD 710-0778

Screw, Self Tapping, 1/4-20, 1.50

$4.49

$

In Stock, Qty 20+

0

28

MTD 732-04909

Spring, Extension, 1.05 X 6.346

$13.99

$

In Stock, Qty 18

0

29

MTD 738-04184A

Shoulder Screw, 1/4-20

$6.99

$

In Stock, Qty 5

0

30

MTD 732-05151

Torsion Spring, LH
(Superseded to 732-05151A)

$4.49

$

In Stock, Qty 20+

0

31

MTD 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

32

MTD 735-0271A

Bumper, .62 Dia X .3

$8.99

$

In Stock, only 1 left!

0

33

MTD 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

34

MTD 936-0226

Washer, Flat, .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

35

MTD 736-0371

Washer, Flat, .343 X .880 X .062

$4.49

$

In Stock, only 3 left!

0

36

MTD 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

37

MTD 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

38

MTD 738-04091A

Shoulder Spacer, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

MTD 738-04162C

Shoulder Spacer, .8840 X .190

$13.99

$

In Stock, Qty 20+

0

40

MTD 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

41

MTD 738-05064

Shoulder Spacer, .854 x .190

$22.99

$

In Stock, Qty 8

0

42

MTD 738-05088

Shoulder Spacer, .75 x .145

$4.49

$

In Stock, only 1 left!

0

43

MTD 738-0754

Shoulder Screw, .437 Dia. X .54

$4.49

$

In Stock, Qty 20+

0

44

MTD 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

45

MTD 942-04290

Blade, Cut, 23.25" 2-In-1, Econ
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

46

MTD 747-05141A

Rod, Lift, Deck, Medium
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 14

0

47

MTD 747-06232

Brake Rod

$8.49

$

In Stock, only 1 left!

0

48

MTD 748-04069

Pivot Cup, Deck List
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 10

0

49

MTD 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

50

MTD 748-05037

Shoulder Spacer, Pivot Idler
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 20+

0

51

MTD 954-04219

Belt, V-Typ, A Sec

$50.99

$

In Stock, Qty 20+

0

52

MTD 756-05034

Pulley, Idler, 4.50"Dia
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

53

MTD 783-08618

Bracket, Idler, 46" Lh

$25.99

$

In Stock, only 4 left!

0

54

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

55

MTD 783-08530

Deck Idler Bracket
(Superseded to 783-08654C)

$71.99

$

In Stock, Qty 20+

0

56

MTD 738-1186A

Spindle Shaft, 6.05 LG.

$49.99

$

In Stock, Qty 14

0

57

MTD 941-0919A

Ball Bearing, .787ID X 1.85 ODX.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

58

MTD 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0

59

MTD 756-05030

Deck Pulley, 6.74 DIA

$25.99

$

In Stock, Qty 6

0

60

MTD 631-05191

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

61

MTD 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 7

0

62

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

63

MTD 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

64

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

65

MTD 732-04652

Spring, Compression, .535 x 1.751

$6.99

$

In Stock, only 2 left!

0
