13AN77KG211 - Troy-Bilt Pony Lawn Tractor (2009) Transmission Drive Assembly Parts Diagram

Pony Lawn Tractor

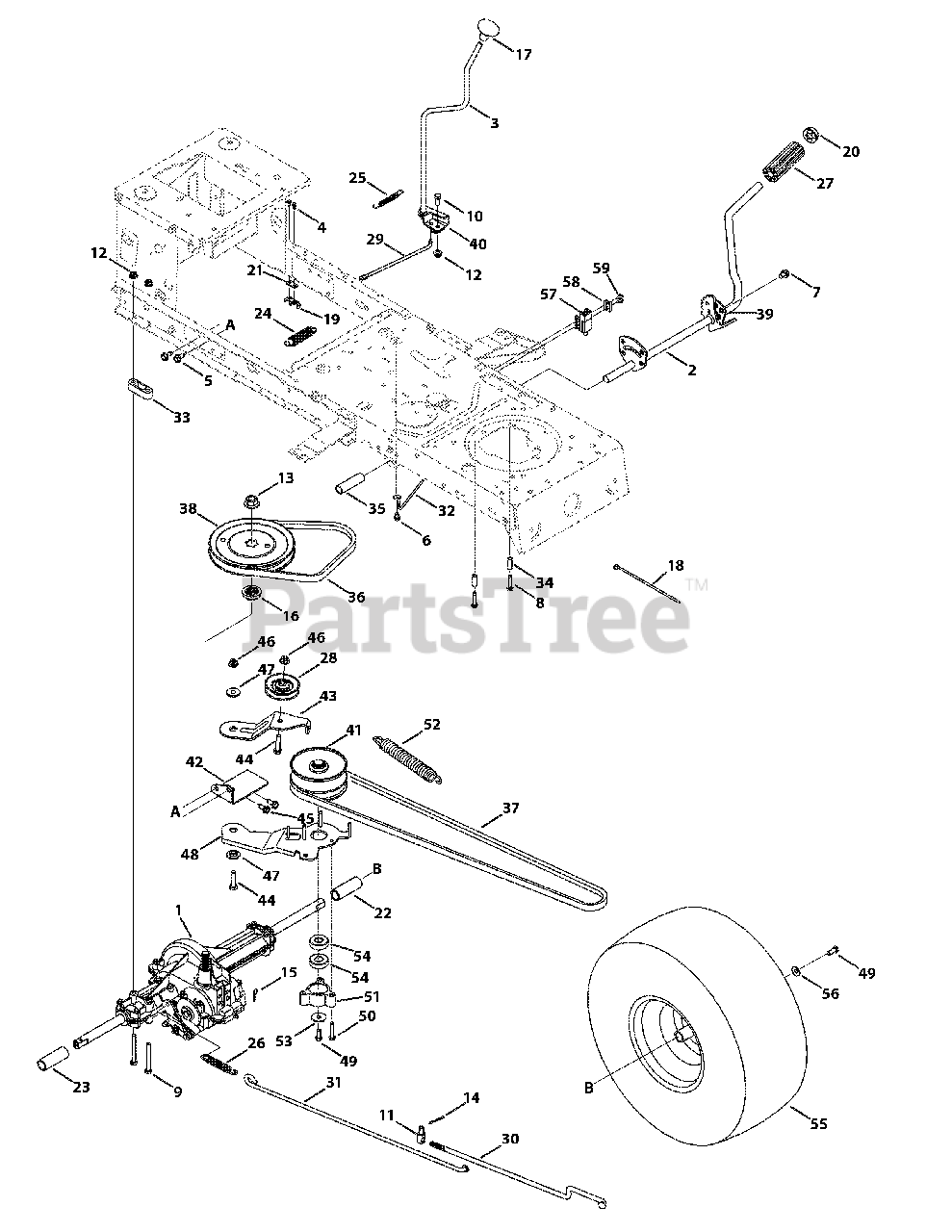

Transmission Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 918-04566

Transmission Drive Assembly, Raised
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 647-04034C-0637

Pedal Assembly
(Superseded to 647-04034E-0637)

$86.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 647-04035

Shaft Lever Assembly

$37.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0227

Screw, 8-18:0.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0809

Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 17

0

9

Troy-Bilt 710-1266

Hex Screw, 5/16-18 x .625

$9.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

10

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 911-04075A

Ferrule, 3/8-24 X .375 DIA.

$11.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 914-0115

Cotter Pin, 1/8 x 1.0
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 914-0209

Cotter Pin INT- .125 DIA

$3.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 718-04407

Pulley Hub, 5/8 SPLINE

$12.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

20

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, Qty 5

0

21

Troy-Bilt 926-0320

Plate Insulator Nut

$6.99

$

In Stock, Qty 11

0

22

Troy-Bilt 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 732-04306

Spring Extension, .80 OD x 3.28 LG

$10.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04488

Spring Extension, .38 OD x 3.25 LG

$6.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 732-0716D

Spring Extension, .59 OD x 4.00 LG

$13.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 735-0239

Foot Pad, 4.0 LONG
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 747-04277

Shift Rod. 38/42"

$

$

Not available

30

Troy-Bilt 747-04265

Variable Speed Control Rod

$

$

Not available

31

Troy-Bilt 747-04733A

Brake Rod

$21.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 747-04969

Belt Keeper Rod

$6.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 948-0334

Spacer, T-Axle, 46" Only

Note: Not used in this application

$10.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 750-0802

Spacer, .640 ID x .76 OD x 2.63

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 954-0241A

V Belt, 5L:35.25:POLY
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 5

0

37

Troy-Bilt 954-04001A

V Belt, 5L:68.90:POLY

$28.99

$

In Stock, Qty 18

0

38

Troy-Bilt 956-04002

V Pulley:7.25 DIA SPUN

$27.99

$

In Stock, Qty 19

0

39

Troy-Bilt 783-04536B-0637

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 783-04595A

Shaft Adjust Bracket

$10.99

$

In Stock, only 4 left!

0

41

Troy-Bilt 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 683-04176A

Transmission Bracket Assembly
(Superseded to 783-04567B)

$8.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 753-05147

Idler Bracket Assembly

$32.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 938-0347

Shoulder Spacer, .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 753-05147

Bracket Assembly

$32.99

$

In Stock, only 2 left!

0

49

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 718-04261

Bearing Cup

$20.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 732-04076A

Extension Spring, 1.15 OD x 7.90 LG

$13.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 736-0362

Flat Washer, .330 x 1.25 x .06:HT

$4.49

$

In Stock, only 4 left!

0

54

Troy-Bilt 941-0124

Ball Bearing, 17 x 40 x 12
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 634-0104-0911

Wheel, 20 x 8 x 8, 42" - Gray

$144.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 10

0

58

Troy-Bilt 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

59

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0
