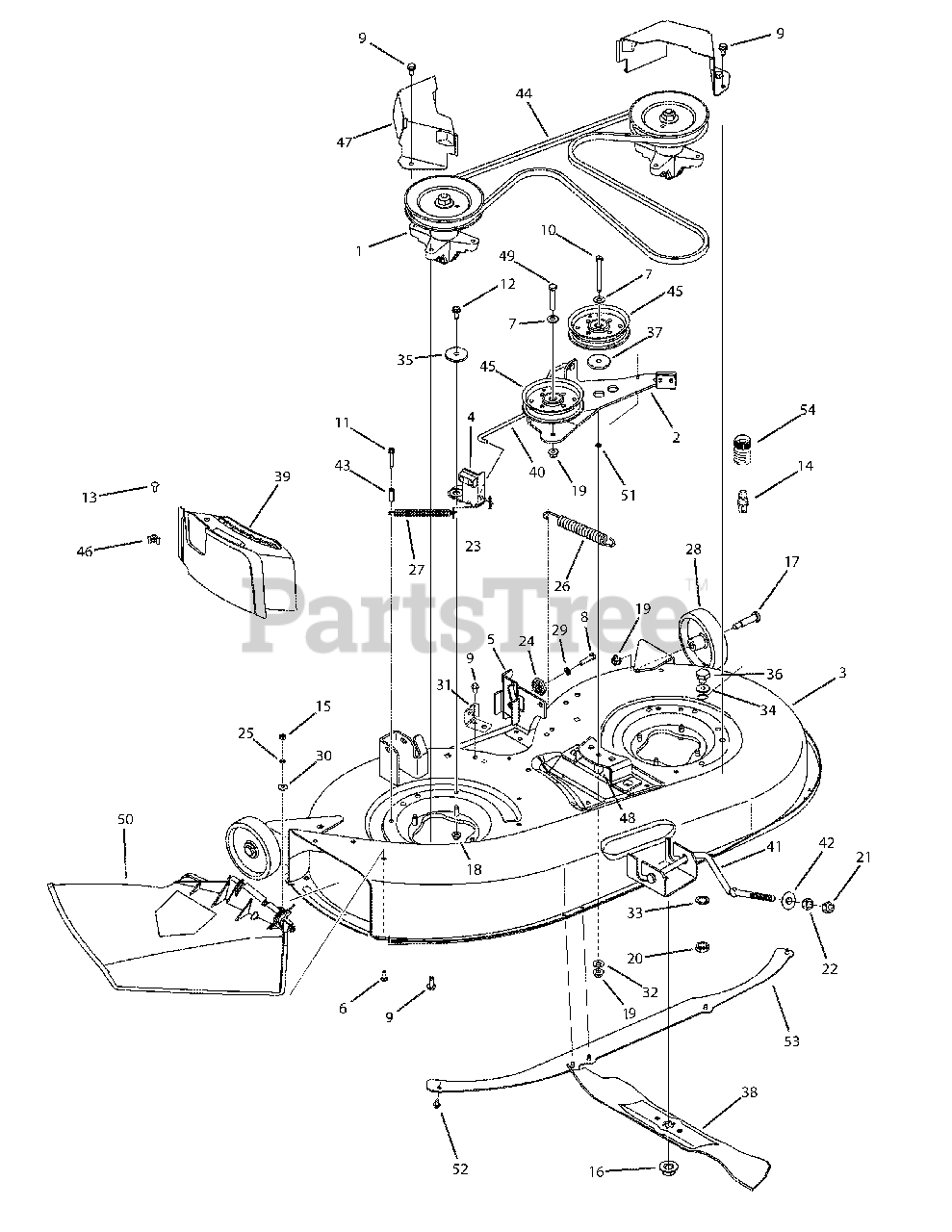

13AN77KG211 - Troy-Bilt Pony Lawn Tractor (2008) Deck Assembly Parts Diagram

Pony Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 618-04456

Spindle Assembly, Pul, 6.3" Dia
(Superseded to 918-04456B)

$128.99

$

In Stock, Qty 6

0

1

Troy-Bilt 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 938-04241

Spindle Shaft:5.50 LG

Note: Not shown

$34.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 750-04739

Spacer:.820x 1.150 x .480

Note: Not shown

$13.99

$

In Stock, Qty 6

0

1

Troy-Bilt 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

Troy-Bilt 956-1227

Deck Pulley:6.3 Dia

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 683-04138B

Brake Assembly, Deck
(Superseded to 683P04138C)

Variations

Troy-Bilt 683-04138B-0637

Brake Assembly, 42" Deck - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04138B-0606

Brake Assembly, 42" Deck - MAJESTIC ORANGE (0606)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04138B-0691

Brake Assembly, 42" Deck - BLACK JACK (0691)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04138B-4008

Brake Assembly, 42" Deck - WINE RED (4008)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04138B-0650

Brake Assembly, 42" Deck - RED METALLIC (0650)

$117.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04138B-0665

Brake Assembly, 42" Deck - YARDMAN GREEN (0665)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 683-04165A

Deck Shell, 42"
(Superseded to 983-04165A)

Note: (w/o Wheel Brackets)

$630.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 683-04162A

Deck Shell, 42"
(Superseded to 983-04162A)

Note: (w/ Wheel Brackets)

Variations

Troy-Bilt 683-04162A-0483

DECK ASM:SD 42" W/WHEEL BRKTS - CHARCOAL GRAY (0483)

$724.99

$

Usually ships in 3-6 days

0

$586.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 683-04167

Brake Assembly, Deck
(Superseded to 983-04167)

Variations

Troy-Bilt 683-04167-0637

Deck Brake Assembly 42" - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

Troy-Bilt 683-04167-0665

Deck Brake Assembly 42" - YARDMAN GREEN (0665)

$47.99

$

In Stock, only 2 left!

0

$47.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 683-04228

Brkt. Ass’y, Deck, Hanger LH

Variations

Troy-Bilt 683-04228-0637

Deck Hanger Bracket Assembly - POWDER BLACK (0637)

$104.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-3015

Screw, 1/4-20, .75, Gr5

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 736-0267

Washer, Flat, .385 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0528

Screw, 5/16-18, 1.250

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-04484

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3085

Screw, 3/8-16, 3.50, Gr5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-3008

Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0134

Carriage Screw, , 1/4-20 x .62

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 737-04003C

Deck Water Nozzle
(Superseded to 737-04003D)

Note: If Equipped

$23.99

$

In Stock, Qty 6

0

15

Troy-Bilt 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

16

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 738-0373

Screw, Shldr, .498 x 1.53, 3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 5

0

19

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0641

Nut, Hex, M16-1.5

Note: If Equipped

$6.49

$

In Stock, Qty 7

0

21

Troy-Bilt 712-3083

Nut, Hex Lock, 1/2-13, Gr8

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 714-0104

Pin, Cot, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 717-04074

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

25

Troy-Bilt 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 732-04280B

Spring, Exten. , .75 Dia. x 6.375

$8.49

$

In Stock, only 4 left!

0

27

Troy-Bilt 732-04287

Spring, Exten. , .50 Dia. x 6.375

$15.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 734-0973

Wheel, Deck 5.0 x 1.38

Note: If Equipped

$12.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0270

Washer, Bell, .265 x.75 x .062

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 783-04740

Deck Engagement Cable Bracket

Variations

Troy-Bilt 783-04740-0637

Deck Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04740-0606

Deck Cable Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04740-0638

BRACKET:CABLE:DECK - MTD/TROY-BILT RED (0638)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04740-0665

BRACKET:CABLE:DECK - YARDMAN GREEN (0665)

$9.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04740-4008

BRACKET:CABLE:DECK - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0225

Washer, Lock, 5/8, Internal Tooth

Note: If Equipped

$4.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 736-0187

Washer, Flat, .64 x 1.24 x .06

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 738-04166

Spacer, Shoulder, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

36

Troy-Bilt 738-04146

Plug, Screw, M16 x 1.5

Note: If Equipped

$9.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 742-0616A

Blade, 21.23", Star 3-in-1
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-2363

Mulch Plug

Note: If Equipped

$29.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 747-04379A

Control Rod, Brake

$21.99

$

In Stock, only 3 left!

0

41

Troy-Bilt 747-04269A

Deck Rod, Front Adjustable

$27.99

$

In Stock, only 4 left!

0

42

Troy-Bilt 748-04069

Pivot Cup, Deck Lift
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

43

Troy-Bilt 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 754-04060B

Belt, V-Type
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 10

0

45

Troy-Bilt 756-04129

Idler Pulley, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 712-3087

Wing Nut, 1/4-20

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 783-04327B

Cover, Belt, 6.00 Dia.

Variations

Troy-Bilt 783-04327B-0637

Belt Cover, Black 6.00 Dia - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-0606

Belt Cover, 6.00 Dia - MAJESTIC ORANGE (0606)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-0638

Belt Cover, 6.00 Dia - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-0650

Belt Cover, 6.00 Dia - RED METALLIC (0650)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-0665

COVER-BELT:6.00 DI - YARDMAN GREEN (0665)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04327B-0691

Belt Cover, 6.00 Dia - BLACK JACK (0691)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-0709

Belt Cover, 6.00 Dia - MASTERCRAFT GREEN (0709)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-4008

Belt Cover, 6.00 Dia - WINE RED (4008)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-4021

Belt Cover, 6.00 Dia - CUB YELLOW 2 (4021)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 783-04327B-0716

Belt Cover, 6.00 Dia - CUB YELLOW-99 (0716)

$

$

Not available

$23.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 750-04446

Spacr, 3/8 ID x .68 OD x 1.46 Lg.

$6.99

$

In Stock, Qty 6

0

49

Troy-Bilt 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 731-1032B

Chute Assembly, Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

51

Troy-Bilt 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 783-1146A

Deck Skirt
(Superseded to 753-0884)

Note: If Equipped

Variations

Troy-Bilt 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 721-04041

Water Nozzle Adapt
(Superseded to 921-04041)

Note: If Equipped

$23.99

$

In Stock, Qty 20+

0
