13AN77KG066 - Troy-Bilt Pony Lawn Tractor (2009) Hood Assembly Parts Diagram

Pony Lawn Tractor

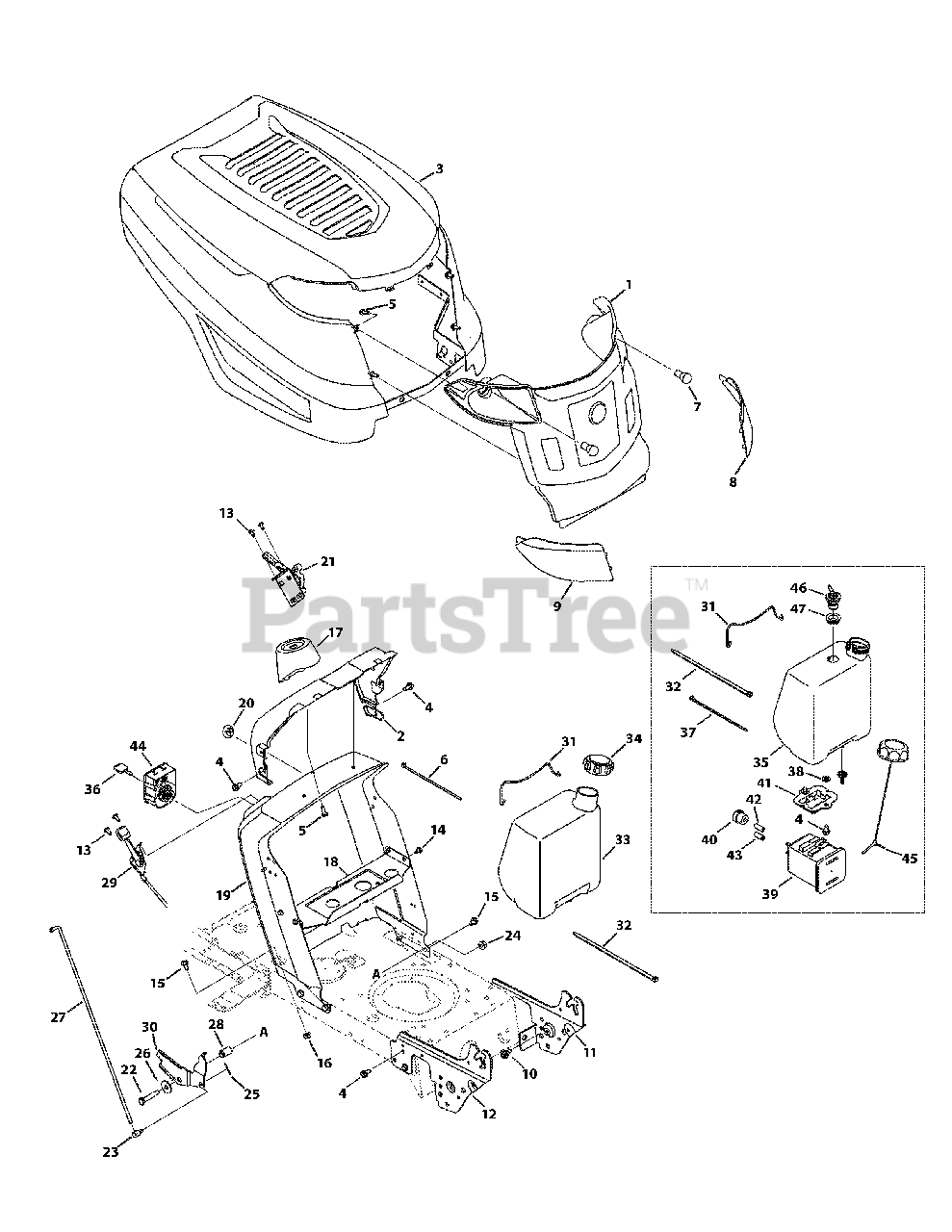

Hood Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-04272

Grill Assembly, Troy-Bilt

$70.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-05078C

Dash Assembly

$18.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 731-06404

Bumper, Rubber Dash

Note: Not shown

$9.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-04261

Screw, #12-16x.50

Note: Not shown

$6.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 683-04441-0638

Hood Assembly - Red
(Superseded to 683-04441A-0638)

$356.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

6

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 925-0963

Lamp

$7.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 731-06095

Left Lens

$12.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 731-06096

Right Lens

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-05327B-0637

Left Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328A-0637

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 783-04873A-0638

Dash, No RMC - Red
(Superseded to 783-04873B-0638)

$214.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 983-04216

7-Speed Control Assembly

$21.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 7

0

23

Troy-Bilt 711-0736

Ferrule, 1/4-20 x 1.00

$13.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 710-04065

Flangelock Nut, 3/8-16

$6.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 914-0111

Cotter Pin, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

26

Troy-Bilt 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

27

Troy-Bilt 747-04430

Speed Selector

$21.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 750-04465

Flange Spacer, .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 746-04364

Throttle/Choke Cable

$48.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 783-04903

Speed Latch - No RMC

Variations

Troy-Bilt 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 683-04448-0637

Battery Assembly Rod

$10.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 751-0555B

1.5 Gallon Fuel Tank
(Superseded to 751-0555D)

Note: 49 states

$89.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 751-10782

1.36 Gallon Fuel Tank
(Superseded to 951-04304B)

Note: California

$111.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 951-10589

5 Gallon Carbon Canister

$72.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 951-10590

Vent Filter Canister

$15.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 951-10610

Canister Adapter Bracket

$23.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 751-10749-30

Fuel Hose, White

$36.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 751-10750-28

Fuel Hose, Yellow

$

$

Not available

44

Troy-Bilt 925-04659

3 Position Key Switch

$44.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 951-10947

Fuel Cap, 2.25"
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 751-10441

Rollover Valve
(Superseded to 751-12118)

$35.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0
