13AN77KG011 - Troy-Bilt Pony Lawn Tractor (2008) Hood & Control Assembly Parts Diagram

Pony Lawn Tractor

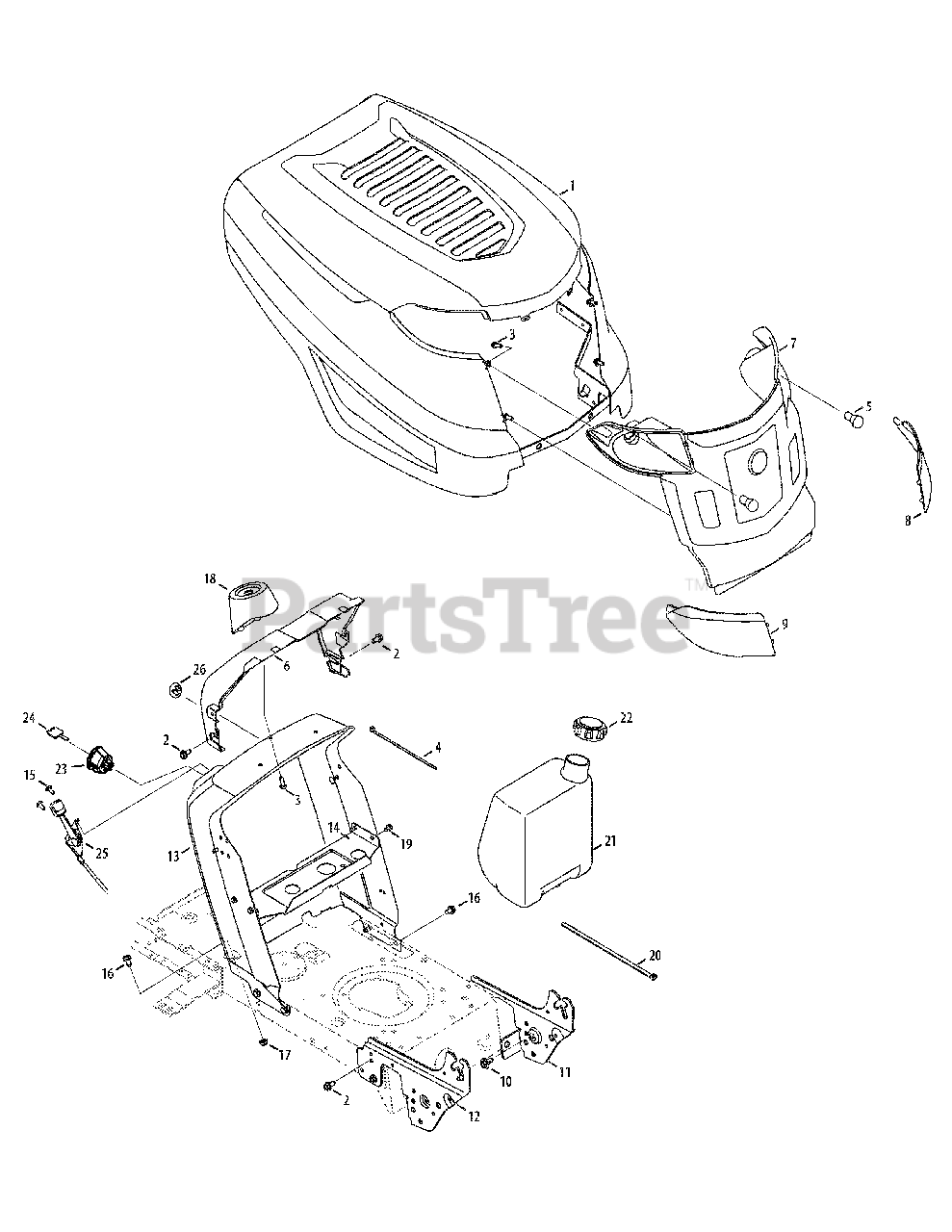

Hood & Control Assembly Parts Diagram

  • Title

1

Troy-Bilt 683-04441

K Style Hood Assembly
(Superseded to 683-04441A)

Variations

Troy-Bilt 683-04441-0638

HOOD ASM-K STYLE - MTD/TROY-BILT RED (0638)

$356.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04441-4038

HOOD ASSY-K STYLE - DAY ORANGE (4038)

$332.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04441-0662

HOOD ASSY-K STYLE - OYSTER GRAY (0662)

$332.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04441-4033

HOOD ASM-K STYLE - FLINT MICA (4033)

$332.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04484

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0895

Screw, 1/4-15, .750

$6.49

$

In Stock, Qty 10

0

4

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

6

Troy-Bilt 731-05078C

Dash Collar

$18.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 731-06094

K-Style Grill
(Superseded to 631-04272)

$70.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-06095

Lens, LH

$12.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 731-06096

Lens, RH

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 738-04091A

Screw, Shldr, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 783-05327

Hood Pivot Bracket, LH
(Superseded to 783-05327B-0637)

Variations

Troy-Bilt 783-05327-0637

BRACKET-SUPPORT PI - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328

Hood Pivot Bracket, RH
(Superseded to 783-05328B-0637)

Variations

Troy-Bilt 783-05328-0637

BRACKET-SUPT PIVOT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-04873

Dash Assembly
(Superseded to 783-04873B)

Variations

Troy-Bilt 783-04873-0637

DASH NO RMC - POWDER BLACK (0637)

$214.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04873-0691

DASH NO RMC - BLACK JACK (0691)

$214.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-04584

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

Variations

Troy-Bilt 783-04584-0637

Support Bracket, Black - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-04483

Screw, 1/4-14, .500

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-04945

Support, Steering

$18.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 726-0230

Cable Tie, 34.75

$27.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 725-04659

Igntion, Switch (No RMC) 3 Position
(Superseded to 925-04659)

$44.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 725-1741

Igntion, Switch (No RMC) 4 Position
(Superseded to 925-1741)

Note: Not Shown

$45.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 725-1744A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 746-04364

Throttle/Choke Control, 25.0

$48.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04567

Wire Harness (No RMC) 3 Position
(Superseded to 925-04567K)

Note: Not Shown

$133.99

$

In Stock, only 2 left!

0

Troy-Bilt 725-04433A

Wire Harness (No RMC) 4 Position
(Superseded to 925-04433H)

Note: Not Shown

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777X42188

Headlight Lens Reflector RH

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0

Troy-Bilt 777X42187

Headlight Lens Reflector LH

Note: Not Shown

$

$

Not available
