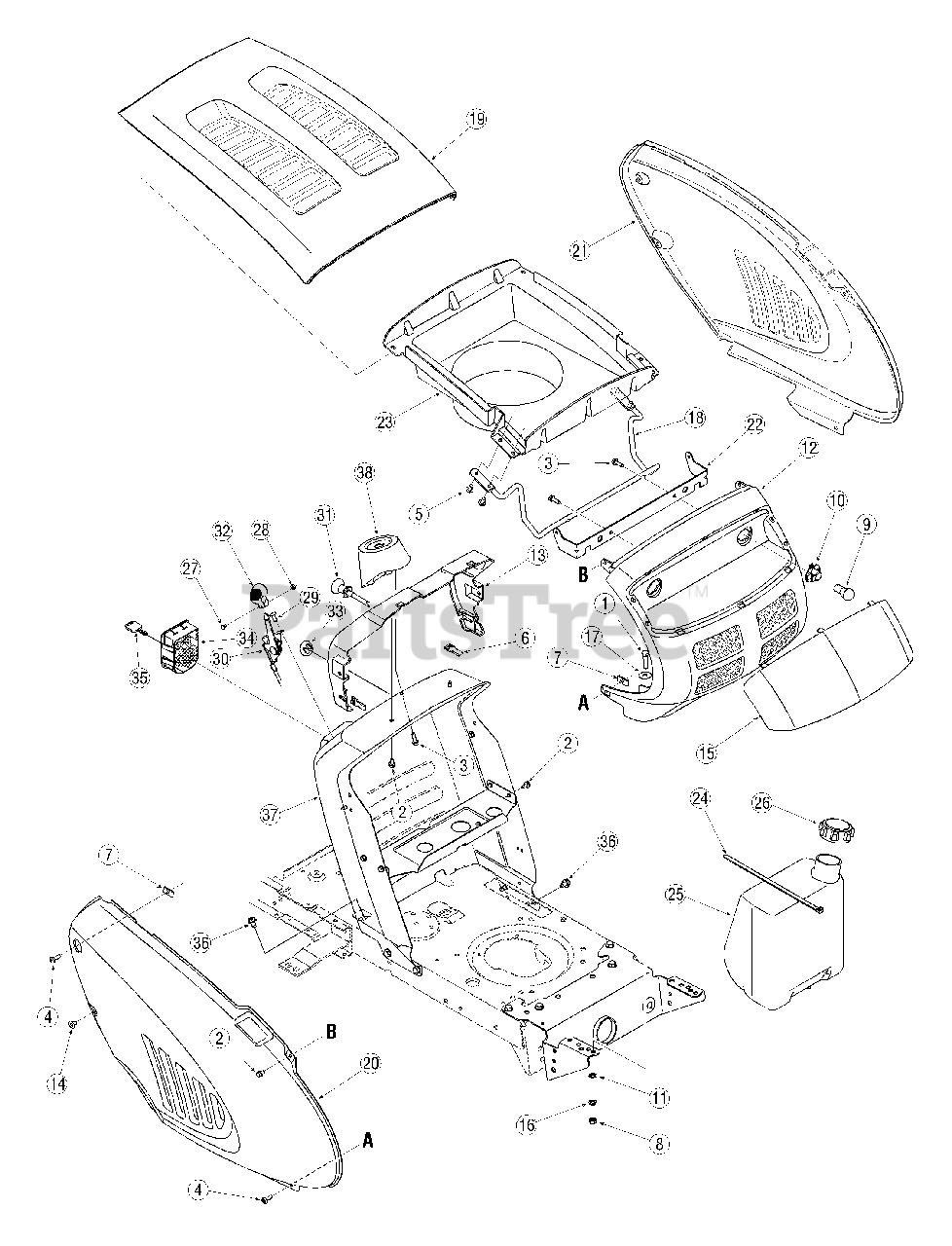

13AN779G766 - Troy-Bilt Pony Lawn Tractor (2005) Hood Assembly Parts Diagram

Pony Lawn Tractor

Hood Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0924

Screw, Machine, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

6

Troy-Bilt 712-0185

Speed Nut, U-type, 1/4-20

$

$

Not available

7

Troy-Bilt 712-0292

Nut, Tinn Clip, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 725-0963

Miniature Lamp 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 725-1649

Lamp Socket, Nylon 1/4-Turn
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 726-0201

Nut, Speed, .3125 ID

$6.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 731-04960

Grill, 9 Style,
(Superseded to 753-0895)

$

$

Not available

12

Troy-Bilt 753-0895

Grill, 9 Style, Service Kit

Note: Replaces 731-04960

$

$

Not available

12

731- 2119A

GRILLE, 9 STYLE

Note: Not Shown, use with 753-0895

$

$

Not available

12

Troy-Bilt 783-1346A

GRILLE, SUPPORT BRACKET
(Superseded to 783-1346A-0637)

Note: Not Shown, use with 753-0895

Variations

Troy-Bilt 783-1346A-0637

Support Bracket, Grill - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 777X40317

LABEL, REFLECTIVE, HEADLIGHT

Note: Not Shown, use with 753-0895

$25.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-2118A

LENS

Note: Not Shown, use with 753-0895

$35.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-0895

SCREW:HL:1/4-15 X .75

Note: Not Shown, use with 753-0895

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-0642

SCREW: TAPPING:1/4-20 X .75

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0528

SCREW:5/16-18 X 1.25": GR5

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-3078

WASHER:FLAT:.344 X 1.0 X .063:HT

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0119

WASHER: SPLIT LOCK: 5/16
(Superseded to 936-0119)

Note: Not Shown, use with 753-0895

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3010

NUT:HEX: 5/16-18: GR5

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-0292

NUT: TINN CLIP:1/4-20

Note: Not Shown, use with 753-0895

$10.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 731-05078

Collar, Dash
(Superseded to 731-05078C)

$18.99

$

In Stock, only 2 left!

0

14

MTD 731-05224

Plug, 0.285 Dia.

$

$

Not available

15

MTD 731-2637

Lens
(Superseded to 931-2637)

Note: use with 731-04960

$

$

Not available

16

Troy-Bilt 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-3078

Washer, Flat, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 747-2138

Rod, Hinge

$

$

Not available

19

Troy-Bilt 783-0783

Hood
(Superseded to 783-0783A)

Variations

Troy-Bilt 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

20

Troy-Bilt 783-0784A

Side Panel, RH

Variations

Troy-Bilt 783-0784A-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0784A-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0784A-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

21

Troy-Bilt 783-0785

Side Panel, LH

Variations

Troy-Bilt 783-0785-0638

PANEL:SD:LH 9 STYLE - MTD/TROY-BILT RED (0638)

$142.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0785-0691

PANEL:SD:LH 9 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0785-0709

PANEL:SD:LH 9 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

22

Troy-Bilt 783-1346

Support Bracket, Grille
(Superseded to 783-1346A-0637)

Note: use with 731-04960

Variations

Troy-Bilt 783-1346-0637

Support Bracket, Grill - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-2269A

Plenum (Single Cylinder Engine)

$

$

Not available

23

Troy-Bilt 731-2270A

Plenum (Twin Cylinder Engine)

$

$

Not available

24

Troy-Bilt 726-0230

Cable Tie, 34.75

$27.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-3217

Screw, Machine, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

28

Troy-Bilt 712-0142

Nut, Hex, #8-32, Gr A

$4.49

$

In Stock, Qty 10

0

29

Troy-Bilt 710-1017

Screw, 1/4-14, .625

$8.49

$

In Stock, Qty 9

0

30

Troy-Bilt 746-1084

Throttle/Choke Control, 25" (Single Cylinder Engine)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 746-1086

Throttle Control, 39" (Twin Cylinder Engine)
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 746-1085A

Choke Control, 37.5"
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 731-1857

Knob, Control

$14.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 731-1999

Plug

$10.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 725-04227

Module, Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 725-1744

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

37

Troy-Bilt 683-04189

Dash Assembly
(Superseded to 753-05614)

Variations

Troy-Bilt 683-04189-0637

Replacement Dash Kit - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-04189-0650

Replacement Dash Kit - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-04189-0665

Replacement Dash Kit - YARDMAN GREEN (0665)

$

$

Not available

$

$

37

Troy-Bilt 783-04584

Bracket Support, Gas Tank
(Superseded to 783-04584B-0637)

Note: Not shown

Variations

Troy-Bilt 783-04584-0637

Support Bracket, Black - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 731-04945

Support, Steering

$18.99

$

In Stock, only 1 left!

0
