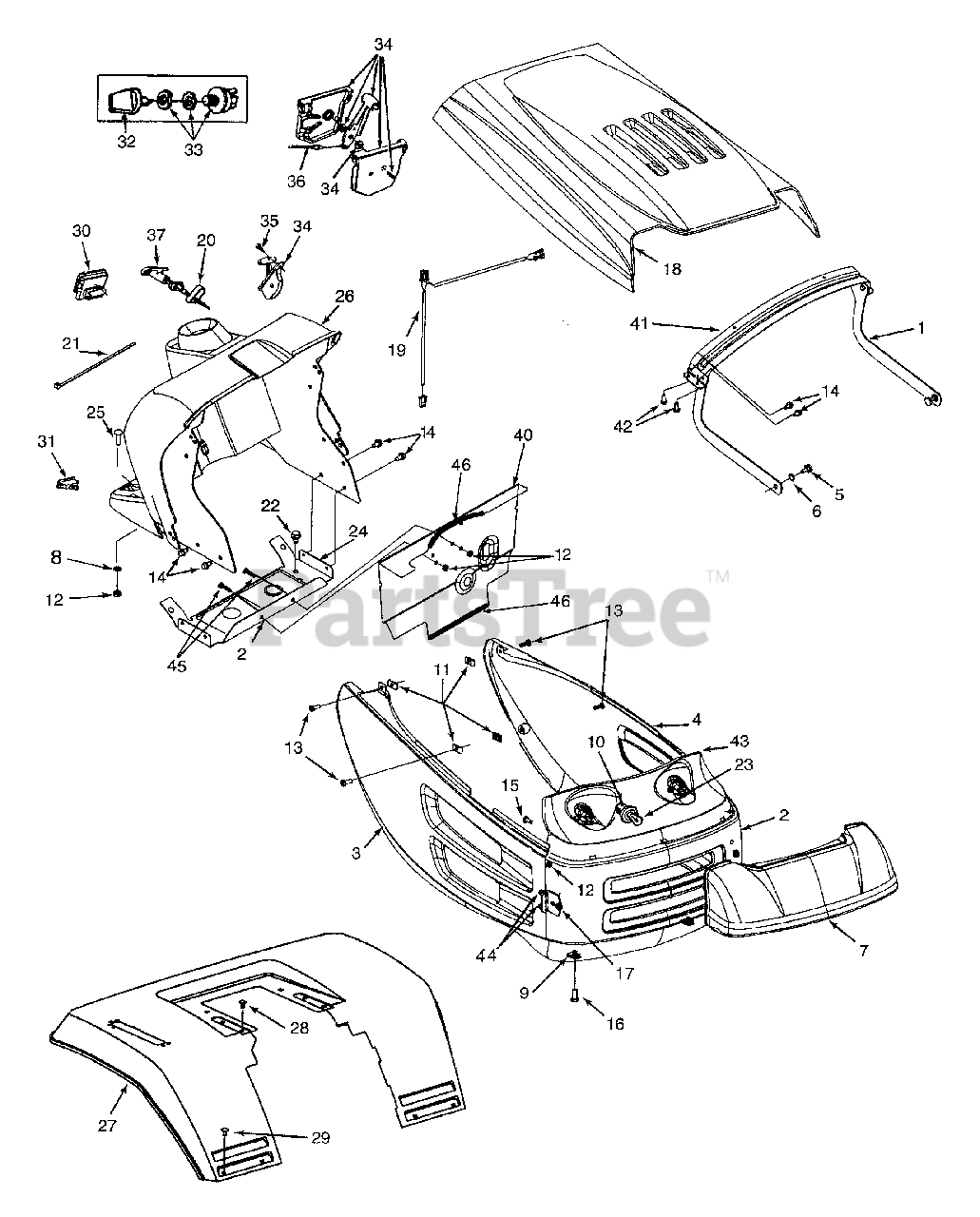

13AN698G033 - MTD Lawn Tractor (2001) (Ace Hardware) Hood Style "8" Parts Diagram

Lawn Tractor

Hood Style "8" Parts Diagram

  • Title

1

MTD 783-0551

Hood Brkt.

Variations

MTD 783-0551-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0551-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0551-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

2

MTD 783-0477A

Grille

Variations

MTD 783-0477A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477A-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477A-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477A-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0477A-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0477A-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0477A-0691

No Longer Available GRILLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0477A-0709

No Longer Available GRILLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0477A-0724

No Longer Available GRILLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0477A-0732

No Longer Available GRILLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

3

MTD 783-0476B

Side Panel -RH

Variations

MTD 783-0476B-0629

PANEL-SIDE RH 8STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0476B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0476B-0724

No Longer Available PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

4

MTD 783-0475A

Side Panel - LH
(Superseded to 783-0475C)

Variations

MTD 783-0475A-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475A-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475A-0662

PANEL-SIDE 8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0475A-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475A-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475A-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0475A-0724

PANEL-SIDE 8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

5

MTD 738-0255

Shld. Bolt .375" Dia.
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

6

MTD 736-0413

Spr. Wash .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

7

MTD 731-1854A

Lens
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

8

MTD 726-0233

Retainer Nut

$4.49

$

In Stock, Qty 20+

0

9

MTD 726-0211

U - Nut 5/16-18 Thd

$4.49

$

Usually ships in 3-6 days

0

10

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

11

MTD 712-0292

Tinn. Nut 1/4-20 Thd.

$10.99

$

In Stock, only 2 left!

0

12

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

13

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0751

Hex Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-0376

Hex Bolt 5/16-18 x .1" Lg. (Gr.5)

$3.99

$

In Stock, Qty 5

0

17

MTD 683-0168

Hood Pivot Brkt. Assembly

Variations

MTD 683-0168-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 783-0478A

Hood
(Superseded to 983-0478B)

Variations

MTD 783-0478A-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478A-0629

No Longer Available HOOD-8 STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0478A-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478A-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478A-0665

HOOD-8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0478A-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0478A-0709

HOOD-8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0478A-0724

No Longer Available HOOD-8 STY - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0478A-0732

HOOD-8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

19

MTD 629-0309

Headlight Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

20

MTD 17782

Choke Retainer

$

$

Not available

21

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

22

MTD 710-0607

Hex Wash. Hd. Tap Scr. 5/16-18 x .5"

$6.99

$

In Stock, Qty 11

0

23

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

24

MTD 17632B

Gas Tank Support Brkt.

Variations

MTD 17632B-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

26

MTD 731-1852

Dash Panel

$

$

Not available

27

MTD 783-0350

Fender

Variations

MTD 783-0350-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0350-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0350-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0350-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0350-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0350-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0350-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0350-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0350-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0350-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0350-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0350-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

28

MTD 710-0726

Hex Wash. Hd. Tap Scr. 5/16 x .75"

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

30

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

31

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

32

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

33

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

34

MTD 831-0823A

Throttle Box Assembly

$32.99

$

In Stock, Qty 20+

0

35

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

36

MTD 746-0776

Throttle Control Wire 18.5" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

MTD 746-0638

Throttle Control Wire 22" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

37

MTD 746-0720

Choke Control 20" Lg.

$

$

Not available

MTD 746-0616A

Choke Control 23" Lg.
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

MTD 746-3021

Choke Control 29" Lg.

$26.99

$

Usually ships in 3-6 days

0

MTD 746-0614A

Choke Control 38" Lg.

$24.99

$

In Stock, only 1 left!

0

40

MTD 16988A

Engine Baffle

Note: B&S Twin Cylinder Engine Only

Variations

MTD 16988A-0637

No Longer Available BAFFLE-ENG - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 783-0553A

Hood Brkt. Support
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 710-0351

Pan Hd. Scr. #10-16 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

43

MTD 726-0293

Retainer Nut

$

$

Not available

44

MTD 710-0896

Hex Wash. AB-Tap Scr. 1/4-14 x .625"

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0166

Pan Hd. Scr. 1/4-20 x 1" Lg.
(Superseded to 710-0166A)

Note: B&S Twin Cylinder Engine Only

$7.49

$

In Stock, only 1 left!

0

46

MTD 731-0511-18

Trim Strip

Note: B&S Twin Cylinder Engine Only

$29.99

$

Usually ships in 3-6 days

0
