13AN698G033 - MTD Lawn Tractor (2000) (Ace Hardware) Deck Assembly "G" Parts Diagram

Lawn Tractor

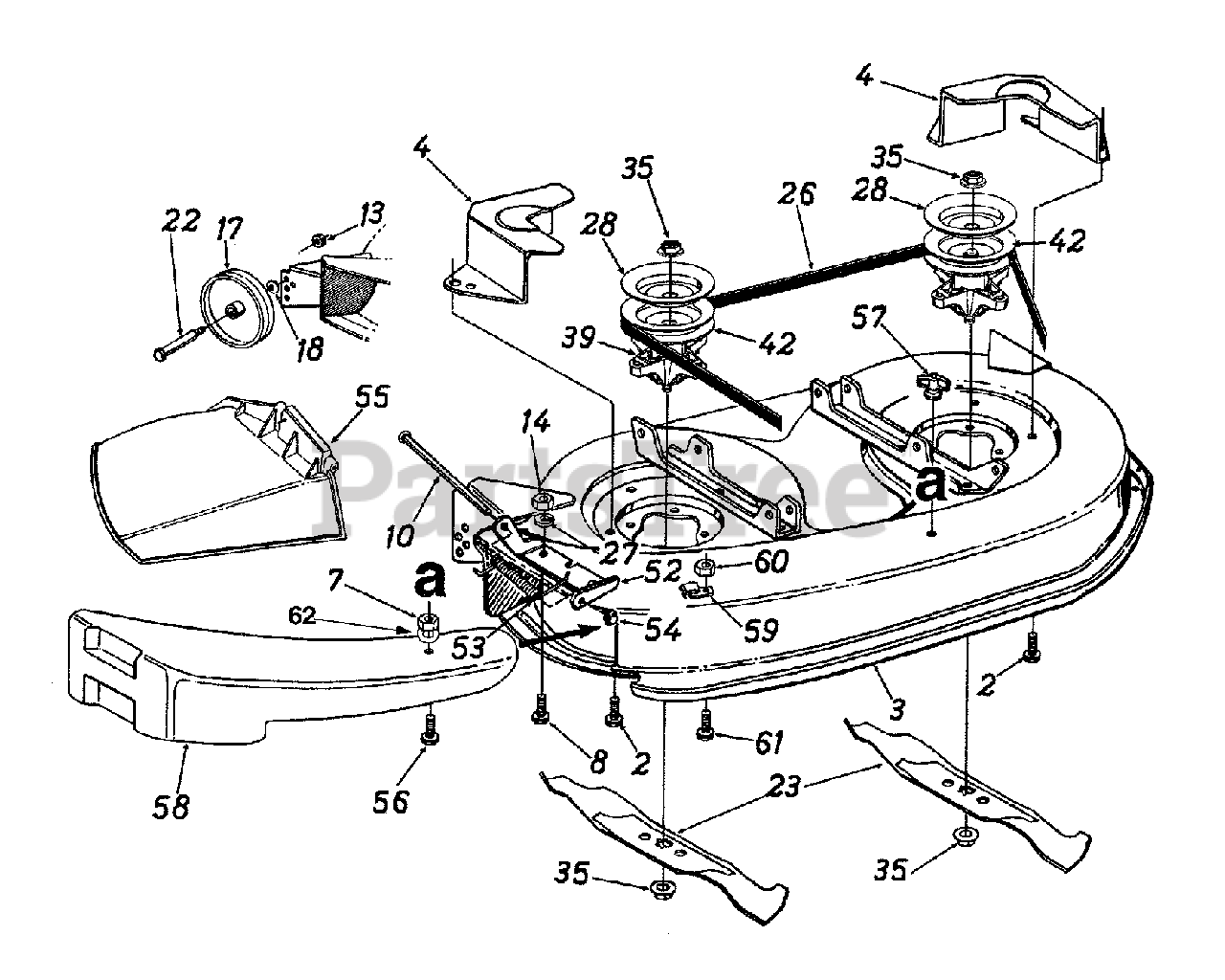

Deck Assembly "G" Parts Diagram

2

MTD 710-1260A

Hex Wash. TT-Tap Scr. 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

3

MTD 683-0141A-0483

USE 983-0141B-0637 DECK ASM- - CHARCOAL GRAY (0483)
(Superseded to 983-0141B)

Variations

$808.99

$

Usually ships in 3-6 days

0

MTD 753-0698-0483

No Longer Available - CHARCOAL GRAY (0483)

Variations

$

$

Not available

4

MTD 783-0149-0637

Belt Guard, G-Deck Black - POWDER BLACK (0637)
(Superseded to 783-0149B)

Variations

$40.99

$

In Stock, only 4 left!

0

7

MTD 712-3006

Hex Lock Nut 1/4-20 Thd.

Note: If equipped

$4.99

$

In Stock, Qty 15

0

8

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

13

MTD 712-0181

Hex Top Lock Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 15

0

17

MTD 734-0973

Deck Wheel- 5"

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

BelLock Washer .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

MTD 742-0616

3 in 1 Blade
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

26

MTD 754-0371A

V-Belt
(Superseded to 954-0371A)

$103.99

$

In Stock, only 1 left!

0

27

MTD 736-0270

Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 783-0342

Brake Disc
(Superseded to 783-0342A)

$

$

Not available

?33

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 13

0

35

MTD 712-0417A

Hex Flange Nut 5/8-18 Thd.

$6.99

$

In Stock, Qty 20+

0

39

MTD 618-0142

Blade Spindle Assembly
(Superseded to 918-0142C)

Note: (Incl. Ref. 28, 35, 42)

$134.99

$

In Stock, Qty 5

0

42

MTD 756-0980

5.75" Dia. Pulley

$

$

Not available

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y.
(Superseded to 631-05229)

Note: (Incl. Ref.10, 52, 53, 54, 55)

$81.99

$

In Stock, Qty 5

0

56

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: If equipped

$3.99

$

In Stock, Qty 13

0

57

MTD 712-3087

Wing Nut 1/4-20 Thd.

Note: If equipped

$3.99

$

In Stock, Qty 20+

0

58

MTD 731-1643A

Mulching Plug
(Superseded to OEM-190-116)

Note: If equipped

$101.99

$

In Stock, only 2 left!

0

59

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 6

0

60

MTD 712-3027

Hex Flg. Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0173

Flat Washer .28 I.D. x .74 O.D.

$4.49

$

In Stock, Qty 20+

0
