13AN67AG016 - Statesman Lawn Tractor (1999) (Southern States) Hood Style A Parts Diagram

Lawn Tractor

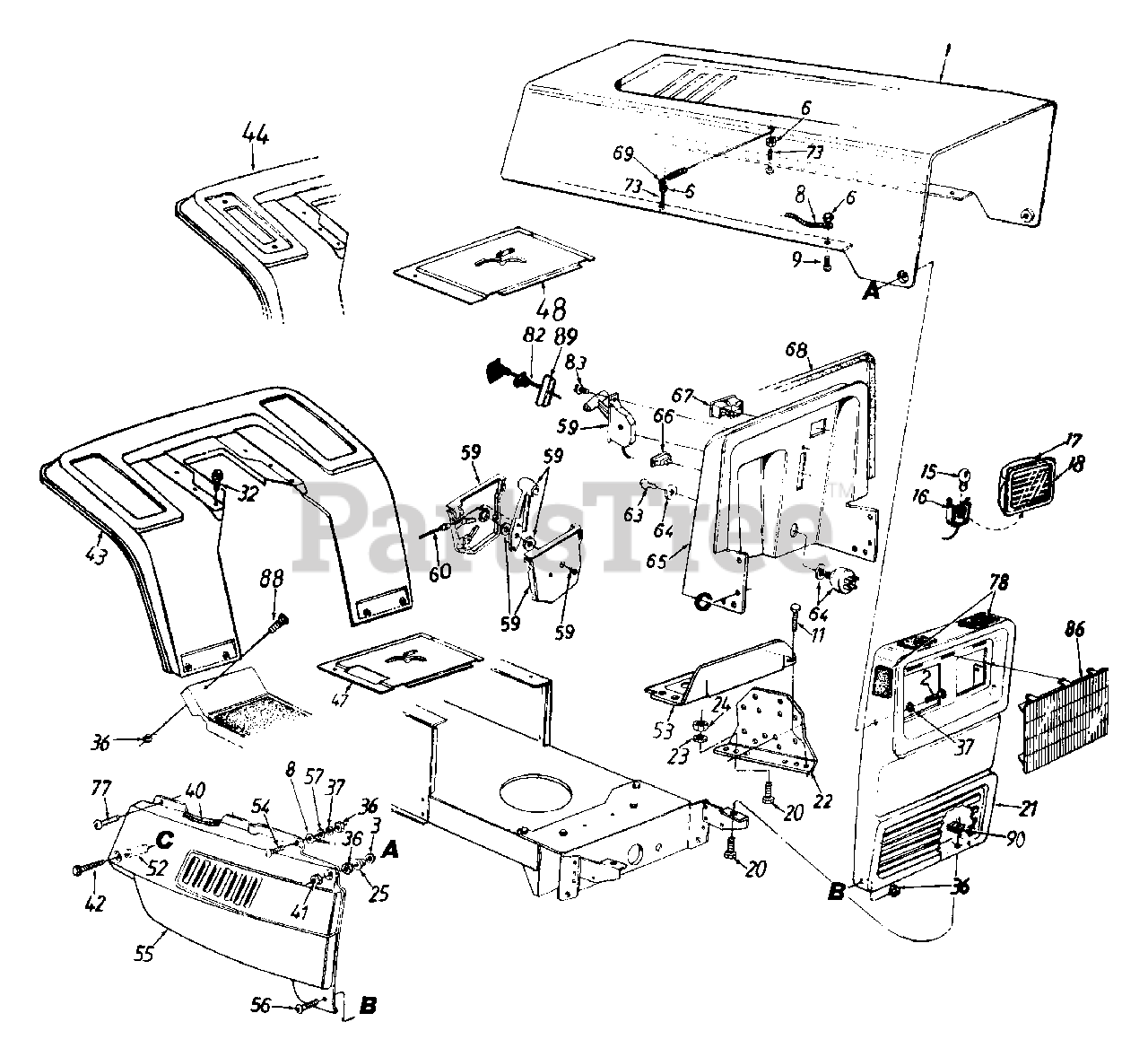

Hood Style A Parts Diagram

  • Title

1

MTD 16787B

Hood

Variations

MTD 16787B-0480

No Longer Available HOOD-W/21 - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16787B-0483

No Longer Available HOOD-W/21 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16787B-0499

No Longer Available HOOD-W/21 - CUB BEIGE (0499)

$

$

Not available

MTD 16787B-0629

No Longer Available HOOD-W/21 - SILVER FLAKE (0629)

$

$

Not available

MTD 16787B-0638

No Longer Available HOOD-W/21 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16787B-0650

No Longer Available HOOD-W/21 - RED METALLIC (0650)

$

$

Not available

MTD 16787B-0660

No Longer Available HOOD-W/21 - TEAL (0660)

$

$

Not available

MTD 16787B-0665

No Longer Available HOOD-W/21 - YARDMAN GREEN (0665)

$

$

Not available

MTD 16787B-0667

No Longer Available HOOD-W/21 - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16787B-0671

No Longer Available HOOD-W/21 - BEAVER GREEN (0671)

$

$

Not available

MTD 16787B-0674

No Longer Available HOOD-W/21 - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16787B-0691

No Longer Available HOOD-W/21 - BLACK JACK (0691)

$

$

Not available

MTD 16787B-0692

No Longer Available HOOD-W/21 - AGWAY BLUE (0692)

$

$

Not available

$

$

2

MTD 710-0206

Hex Bolt 1/4-20 x .88" lg.

$4.49

$

Usually ships in 3-6 days

0

3

MTD 736-0413

Washer .39" I.D. x .62"

$6.99

$

In Stock, only 2 left!

0

5

UNKNOWN

$

$

Not available

6

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

8

MTD 727-0290A

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

9

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2"

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5"

$4.99

$

Usually ships in 3-6 days

0

15

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

16

MTD 725-1650

Twist Lock Bulb Socket
(Superseded to 925-1650)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

18

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 15806B

Grille

Variations

MTD 15806B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15806B-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 15806B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15806B-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15806B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15806B-0665

No Longer Available GRILLE-STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 15806B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

MTD 16456C

Grille Used w/Headlight Bezel

Variations

MTD 16456C-0480

No Longer Available GRILLE-STY - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16456C-0483

No Longer Available GRILLE-STY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16456C-0499

No Longer Available GRILLE-STY - CUB BEIGE (0499)

$

$

Not available

MTD 16456C-0629

No Longer Available GRILLE-STY - SILVER FLAKE (0629)

$

$

Not available

MTD 16456C-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16456C-0640

No Longer Available GRILLE-STY - CO-OP GREEN (0640)

$

$

Not available

MTD 16456C-0650

No Longer Available GRILLE-STY - RED METALLIC (0650)

$

$

Not available

MTD 16456C-0660

No Longer Available GRILLE-STY - TEAL (0660)

$

$

Not available

MTD 16456C-0667

No Longer Available GRILLE-STY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16456C-0677

No Longer Available GRILLE-STY - GRASS GREEN (0677)

$

$

Not available

MTD 16456C-0691

No Longer Available GRILLE-STY - BLACK JACK (0691)

$

$

Not available

MTD 16456C-0692

No Longer Available GRILLE-STY - AGWAY BLUE (0692)

$

$

Not available

$

$

22

MTD 17300D

Dash Support Bracket

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0759

Shld. Spacer

$

$

Currently unavailable

32

UNKNOWN

$

$

Not available

36

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

37

UNKNOWN

$

$

Not available

40

MTD 731-0511-12

Trim Strip 12"

$22.99

$

Usually ships in 3-6 days

0

41

MTD 712-0264

Acorn Nut 1/4-20 Thd,

$3.49

$

Usually ships in 3-6 days

0

42

MTD 710-1026

Hex TT-Tap Scr. 1/4-20 x 1.75"

$6.99

$

In Stock, Qty 13

0

43

MTD 17870A

Rear Fender
(Superseded to 17870C)

Variations

MTD 17870A-0480

FENDER-RR W/FRAME - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17870A-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17870A-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17870A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17870A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17870A-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17870A-0640

No Longer Available FENDER - CO-OP GREEN (0640)

$

$

Not available

MTD 17870A-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17870A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17870A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17870A-0663

No Longer Available FENDER - CAYMEN GREEN (0663)

$

$

Not available

MTD 17870A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17870A-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17870A-0668

No Longer Available FENDER - MOSS GREEN (0668)

$

$

Not available

MTD 17870A-0674

No Longer Available FENDER - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17870A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17870A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17870A-0692

No Longer Available FENDER - AGWAY BLUE (0692)

$

$

Not available

MTD 17870A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

44

MTD 17871B

Rear Fender w/Cutout

Variations

MTD 17871B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17871B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17871B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17871B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17871B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17871B-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17871B-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 17871B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17871B-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 17871B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871B-0667

No Longer Available FENDER-W/C - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17871B-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17871B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17871B-0687

No Longer Available FENDER-RR - PINE GREEN (0687)

$

$

Not available

MTD 17871B-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 17871B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

47

MTD 17954B

Shift Cover w/Cutout
(Superseded to 17954B-0637)

Variations

MTD 17954B-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 17286B

Shift Cover
(Superseded to 17286B-0637)

Variations

MTD 17286B-0637

Shift Cover - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

52

MTD 750-0768

Spacer 1.32" Lg.

$

$

Not available

53

MTD 17633A

Support Brkt.

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

55

MTD 17308B

Side Panel R.H.
(Superseded to 16725)

Variations

MTD 17308B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17308B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17308B-0498

No Longer Available SIDE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17308B-0499

No Longer Available SIDE PA - CUB BEIGE (0499)

$

$

Not available

MTD 17308B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17308B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17308B-0640

PANEL-SIDE RH - CO-OP GREEN (0640)

$

$

Not available

MTD 17308B-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 17308B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17308B-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 17308B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17308B-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17308B-0671

No Longer Available - BEAVER GREEN (0671)

$

$

Not available

MTD 17308B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17308B-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 17308B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 16725

Side Cover R.H. (Tec.)

Variations

MTD 16725-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16725-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16725-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 16725-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 16725-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16725-0640

PANEL-SIDE RH - CO-OP GREEN (0640)

$

$

Not available

MTD 16725-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 16725-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 16725-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 16725-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16725-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 16725-0671

No Longer Available - BEAVER GREEN (0671)

$

$

Not available

MTD 16725-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16725-0686

No Longer Available PANEL-SIDE - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16725-0688

No Longer Available PANEL-SIDE - SPRING GREEN (0688)

$

$

Not available

MTD 16725-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 16725-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 16725-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 17458A

Side Cover w/Foam R.H.
(Superseded to 16725)

Variations

MTD 17458A-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 17458A-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 17309B

Side Panel L.H.

Note: (Not Shown)

Variations

MTD 17309B-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17309B-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17309B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 17309B-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17309B-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17309B-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17309B-0648

No Longer Available PANEL-SIDE - TECH GRAY (0648)

$

$

Not available

MTD 17309B-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 17309B-0660

No Longer Available PANEL-SIDE - TEAL (0660)

$

$

Not available

MTD 17309B-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 17309B-0663

No Longer Available PANEL-SIDE - CAYMEN GREEN (0663)

$

$

Not available

MTD 17309B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17309B-0667

No Longer Available PANEL-SIDE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17309B-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 17309B-0671

No Longer Available PANEL-SIDE - BEAVER GREEN (0671)

$

$

Not available

MTD 17309B-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17309B-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17309B-0687

No Longer Available PANEL-SIDE - PINE GREEN (0687)

$

$

Not available

MTD 17309B-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 17309B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17309B-0692

No Longer Available PANEL-SIDE - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 17459A

Side Cover w/Foam L.H.
(Superseded to 17309B)

Note: (Not Shown)

Variations

MTD 17459A-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17459A-0499

No Longer Available PANEL - CUB BEIGE (0499)

$

$

Not available

MTD 17459A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17459A-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17459A-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17459A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17459A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17459A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17459A-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17459A-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

57

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 1 left!

0

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0776

Throttle Control Wire 18.5" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

65

MTD 17295

Dash Panel

Variations

MTD 17295-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

68

MTD 731-0511-31

Trim Strip 31"

$41.99

$

Usually ships in 3-6 days

0

69

MTD 732-0462

Hood Spring

$

$

Not available

73

MTD 710-0749

Hex Scr. #10-24 x 1.0" L.g.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 722-0157

Foam Strip 3/8 x 1-1/8" x 1-1/2 Lg. (4 Req'd.)

$4.49

$

Usually ships in 3-6 days

0

82

MTD 746-0615A

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

MTD 746-0613A

Choke Control 46" Lg.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

83

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

86

MTD 731-0967

Headlight Bezel

Note: (Optional)

$

$

Not available

88

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

89

MTD 17782

Retainer Clip

$

$

Not available

90

MTD 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

MTD 751-0302

Muffler
(Superseded to 951-0302)

Note: Engine 10.5, 11.5, 12, 12.5 & 13 H.P. B&S

$

$

Not available

MTD 712-0250

Nut

Note: For muffler

$

$

Not available

MTD 629-0309

Headlight Harness
(Superseded to 929-0469B)

Note: (Not Shown)

$55.99

$

Usually ships in 3-6 days

0
