13AN673G131 - Huskee Lawn Tractor (2002) (Tractor Supply) Drive, Controls, Wheels Rear Parts Diagram

Lawn Tractor

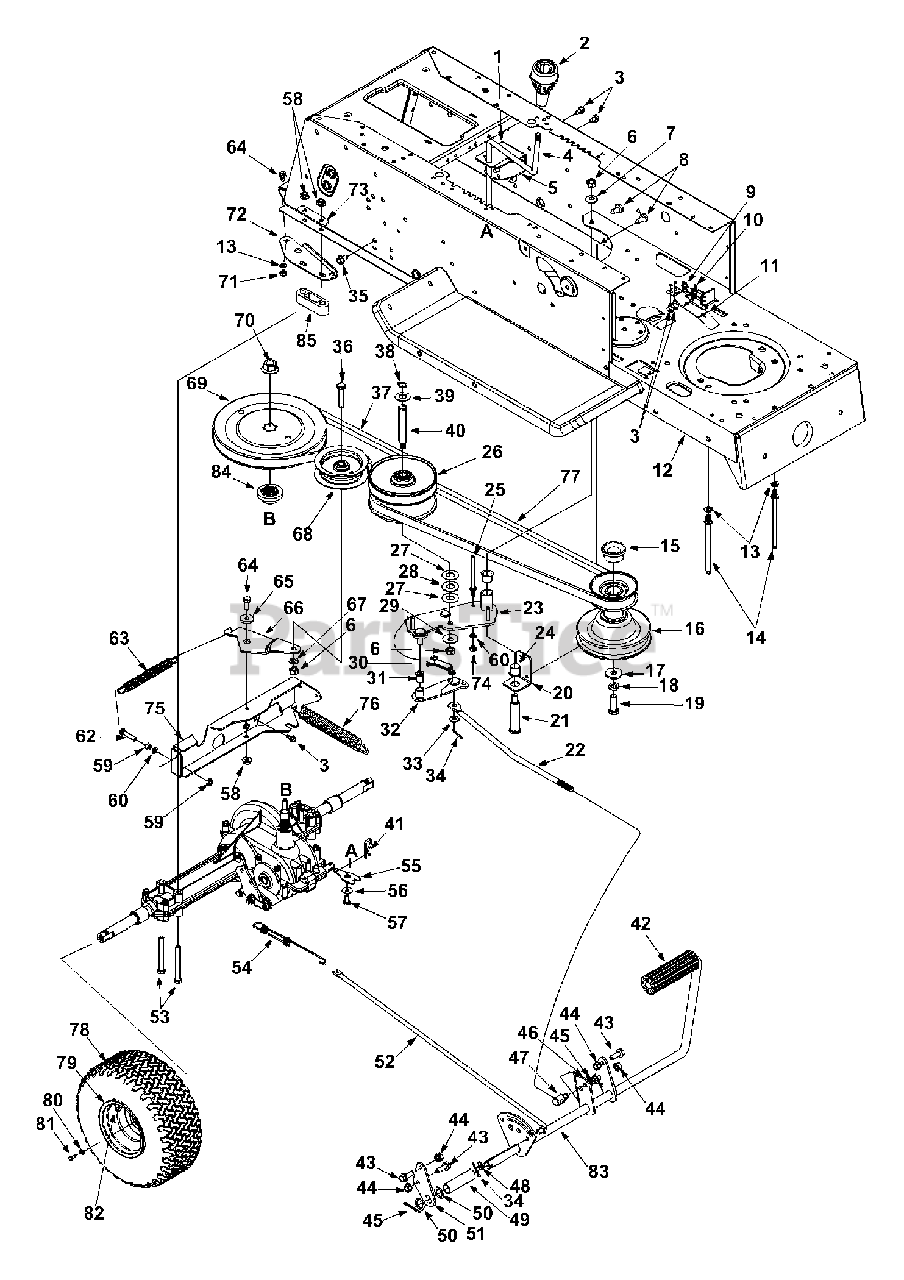

Drive, Controls, Wheels Rear Parts Diagram

  • Title

1

MTD 17630

Shift Lever Bracket
(Superseded to 17630A-0637)

Variations

MTD 17630-0637

Shift Lever Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

2

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

3

MTD 710-0599

Self Tap. Screw 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 17705

Shift Lever Assembly

$

$

Not available

5

MTD 732-0525

Comp. Spring-Clip

$10.99

$

In Stock, only 1 left!

0

6

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

7

MTD 736-0105

Bell Wash. .375" I.D.

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0726

AB-Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0224

AB-Tap Scr. #10-16 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

10

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

11

MTD 732-0750A

Switch Spring Actuator
(Superseded to 932-0750A)

$21.99

$

Usually ships in 3-6 days

0

12

MTD 783-0310E

Lower Frame
(Superseded to 783-0310F)

Variations

MTD 783-0310E-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-0310E-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

MTD 783-0310E-0483

FRAME-LOWER 600 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0310E-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0310E-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0310E-0650

FRAME-LOWER 600 R - RED METALLIC (0650)

$

$

Not available

MTD 783-0310E-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 711-1044

Belt Guard Pin 4.75" Lg.
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 8

0

15

MTD 750-0956

Spacer 1" I.D. x 1.25" Lg.

$19.99

$

In Stock, only 2 left!

0

16

MTD 756-0982B

Engine Pulley

$72.99

$

In Stock, only 1 left!

0

17

MTD 736-0322

Fl. Wash. .450" I.D.

$9.49

$

In Stock, Qty 7

0

18

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

19

MTD 710-3029

Hx Hd. Cap Scr. 7/16-20 x 1.25" Lg.

$4.49

$

In Stock, Qty 12

0

20

MTD 17963

Bearing Shaft Bracket Ass'y

$

$

Not available

21

MTD 738-0755

Shoulder Screw
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

22

MTD 747-0530A

Speed Control Link

$14.99

$

Usually ships in 3-6 days

0

23

MTD 16354B

Variable Speed Brkt. Ass'y

Variations

MTD 16354B-0637

Variable Speed Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 741-0495

Flange Brg. 5/8" I.D. x .88" Lg.

$4.99

$

In Stock, Qty 20+

0

25

MTD 711-1000

Belt Keeper 3" Lg.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

26

MTD 717-0800A

Variable Speed Pulley Ass'y
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

27

MTD 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

28

MTD 741-0405

Thrust Bearing .56" I.D. x 1.25"
(Superseded to 941-0405)

$

$

Not available

29

MTD 736-0331

Bell Wash. .390" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

30

MTD 732-0568

Extension Spring
(Superseded to 932-0568)

$

$

Not available

31

MTD 741-0419

Flange Bearing

$

$

Not available

32

MTD 16554A

Variable Speed Torque Brkt. Ass'y
(Superseded to 16554A-0637)

Variations

MTD 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

33

MTD 736-0275

Fl-Wash. .344" I.D.

$6.99

$

Usually ships in 3-6 days

0

34

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

35

MTD 710-0604A

TT-Tap Scr. 5/16-18 x .625" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 710-0539

Hex Hd. Cap Scr. 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 12

0

37

MTD 754-0370

V-Belt
(Superseded to 954-0370)

$41.99

$

Usually ships in 3-6 days

0

38

MTD 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

39

MTD 736-0414

Fl-Wash. .570" I.D. x .120" Lg.

$4.49

$

In Stock, Qty 13

0

40

MTD 738-0569

Shaft .56" Dia. x 3.79" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

41

MTD 714-0209

Internal Cotter Pin
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

42

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

43

MTD 710-1238

TT-Tap Scr. 5/16-18 x .75"
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-0265

Sems Nut 5/16-18

$3.99

$

Usually ships in 3-6 days

0

45

MTD 714-0470

Cotter Pin 1/8- 1.25

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0140

Fl-Wash .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

47

MTD 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

48

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

49

MTD 750-0802

Spacer

$6.99

$

Usually ships in 3-6 days

0

50

MTD 736-0256

Fl-Wash. .635" I.D. x .930 O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

51

MTD 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 747-0755A

Brake Rod

$

$

Not available

53

MTD 710-0189

Hex Hd. Cap Scr. 5/16-18

$6.49

$

In Stock, Qty 5

0

MTD 710-1266

Hex Bolt 5/16-18 x 3.5"

Note: (Used w/46" Deck Ass'y)

$9.99

$

Usually ships in 3-6 days

0

54

MTD 732-0413

Ext. Spring
(Superseded to 932-0413)

$12.99

$

In Stock, only 4 left!

0

MTD 732-0642

Ext. Spring
(Superseded to 932-0642)

Note: (Used w/46" Deck)

$

$

Not available

55

MTD 17707

Shift Link Assembly

$

$

Not available

56

MTD 736-0270

Bell Wash. .265 x .75

$3.99

$

In Stock, Qty 20+

0

57

MTD 710-0195

Hex Hd. Cap Screw 1/4-28
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

58

MTD 712-3004A

Flange L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

59

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

60

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

62

MTD 710-0428

Hex Hd. Cap Screw 1/4-28

$2.49

$

In Stock, only 1 left!

0

63

MTD 732-0384

Extension Spring
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

64

MTD 710-3008

Hex Hd. Cap Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

65

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

66

MTD 17643

Idler Brkt.
(Superseded to 17643-0637)

Variations

MTD 17643-0637

Idler Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 4 left!

0

$10.99

$

In Stock, only 4 left!

0

MTD 17694

Idler Brkt.
(Superseded to 17694-0637)

Note: (Used w/46" Deck)

Variations

MTD 17694-0637

Idler Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

67

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

68

MTD 756-0643A

Flat Idler Pulley

$40.99

$

In Stock, Qty 15

0

69

MTD 756-0665

V Pulley
(Superseded to 956-0665)

$73.99

$

Usually ships in 3-6 days

0

70

MTD 712-0700

Flange Nut 9/16

$10.99

$

In Stock, only 1 left!

0

71

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

72

MTD 17668

Axle Support Brkt. R.H.
(Superseded to 17668A-0637)

Variations

MTD 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17669

Axle Support Brkt. L.H.
(Superseded to 17669A-0637)

Variations

MTD 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 17840

Transaxle Mounting Brkt.
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

74

MTD 712-3006

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 19

0

75

MTD 17629A

Transaxle Support Brkt.
(Superseded to 17629A-0637)

Variations

MTD 17629A-0637

Trans Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 732-0556

Ext. Spring
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

77

MTD 754-0280A

V-Belt
(Superseded to 954-0280A)

$45.99

$

Usually ships in 3-6 days

0

78

MTD 734-1675

Wheel Ass'y. Comp., 20" x 8.0" (Round Shoulder)

Variations

MTD 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 734-1675-0911

WHEEL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1675-0914

WHEEL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

MTD 734-1675-0931

WHEEL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

MTD 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1675-0944

No Longer Available WHEEL ASM - Cheng Yellow (0944)

$

$

Not available

MTD 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

MTD 734-1675-0985

No Longer Available WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

MTD 634-0104

Wheel Ass'y. Comp., 20" x 8.0" (Square Shoulder)

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

MTD 734-1596

Tire Only, 20" x 8.0" (Round Shoulder)

Variations

MTD 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1596-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

MTD 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

MTD 734-1730

Tire Only, 20" x 8.0" (Square Shoulder)

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

79

MTD 634-0070

Rim Only, 20" x 8.0" (Round Shoulder); 20" x 8.0" (Square Shoulder)
(Superseded to 634-04369)

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

80

MTD 736-0242

Bell Wash. .340 I.D. x .872 O.D.

$4.49

$

In Stock, Qty 20+

0

81

MTD 710-0627

Hex Hd. Cap Scr. 5/16-24

$4.49

$

In Stock, Qty 20+

0

82

MTD 734-0255

Air Valve (Service Only)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

83

MTD 683-0123

Clutch Brake Pedal Ass'y

Variations

MTD 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

MTD 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

MTD 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

MTD 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

84

MTD 718-0758

Pulley Hub Splined
(Superseded to 718-04407)

$12.99

$

In Stock, Qty 20+

0

85

MTD 748-0334

Spacer
(Superseded to 948-0334)

Note: (Used w/46" Deck)

$10.99

$

In Stock, only 1 left!

0
