13AN601H729 - Yard Machines Lawn Tractor (2006) (Home Depot) Hood Assembly Parts Diagram

Lawn Tractor

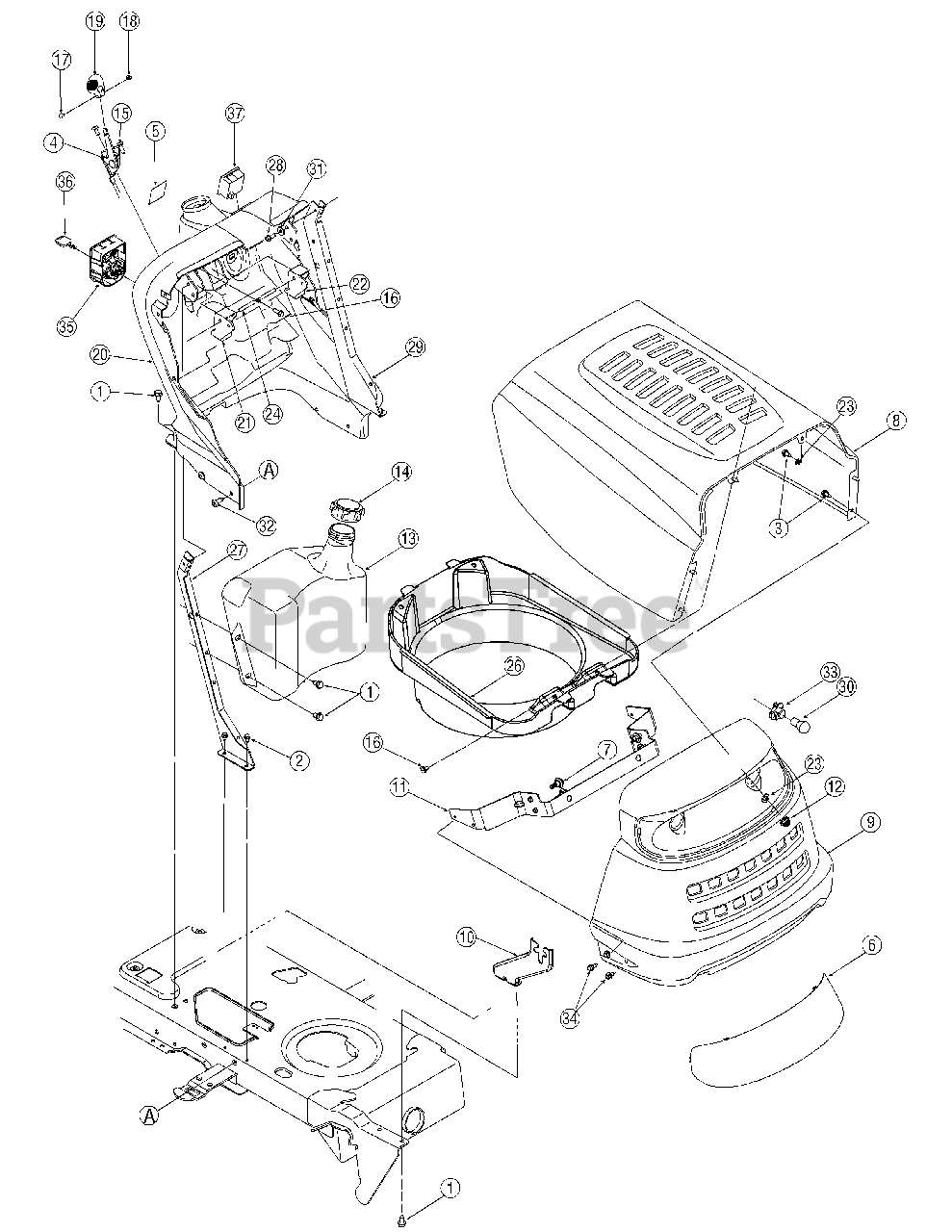

Hood Assembly Parts Diagram

  • Title

1

MTD 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

4

MTD 746-1084

Throttle Control/Cable
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

5

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

6

MTD 731-04949

Headlight Lens
(Superseded to 731-04949A)

$26.99

$

In Stock, only 1 left!

0

7

MTD 738-04091

Shoulder Screw,.43 x.29
(Superseded to 738-04091A)

$3.99

$

Usually ships in 3-6 days

0

8

MTD 783-04551

Hood, 1 Style

Variations

MTD 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04551-0640

No Longer Available HOOD-1 STY - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

MTD 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

9

MTD 783-04552

Grill, 1 Style

Variations

MTD 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04552-0638

GRILL 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

10

MTD 783-04578

Pivot Bracket - RH
(Superseded to 783-04578A-0637)

Variations

MTD 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

10

MTD 783-04577

Pivot Bracket - LH
(Superseded to 783-04577A-0637)

Variations

MTD 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 783-04621

Grill Pivot Bracket

Variations

MTD 783-04621-0637

Grill Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 751-0659C

Fuel Tank, Two Gallon
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

14

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

15

MTD 710-1017

Screw, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

16

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, Qty 5

0

17

MTD 710-3217

Truss Phillips Screw, #8-32 x.375

$6.99

$

In Stock, Qty 7

0

18

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

19

MTD 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

20

MTD 731-05001B

Dash Panel
(Superseded to 731-06167)

$109.99

$

Usually ships in 3-6 days

0

21

MTD 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

22

MTD 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

23

MTD 736-0176

Flat Washer, .265 x .938 x 1.20

$4.99

$

In Stock, Qty 6

0

24

MTD 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

25

MTD 629-04083

Headlight Wire Harness (not shown)
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

26

MTD 731-05147A

Hood Plenum

$49.99

$

Usually ships in 3-6 days

0

27

MTD 783-04285D

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

MTD 783-04285D-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0642

Self-tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

29

MTD 783-04323D

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

MTD 783-04323D-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-04323D-4008

SUPPORT DASH - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

30

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

31

MTD 736-0270

Bell Washer,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-1611B

Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

33

MTD 725-1649

Headlight Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

34

MTD 710-1652

Hex Index Screw, 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

35

MTD 725-04227A

Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

36

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

37

MTD 725-04036B

Systems Ind. Monitor w/ Hr. Meter (if equipped)
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

37

MTD 725-04156

Systems Ind. Monitor w/ Ammeter
(Superseded to 925-04156)

$29.99

$

In Stock, only 1 left!

0

37

MTD 725-04339

Wire Harness (w/Hour Meter) (if equipped)

$

$

Not available

37

MTD 725-04334

Wire Harness (w/Ammeter) (not shown)

$225.99

$

Usually ships in 3-6 days

0
