13AN601H729 - Yard Machines Lawn Tractor (2006) (Home Depot) Deck Assembly Parts Diagram

Lawn Tractor

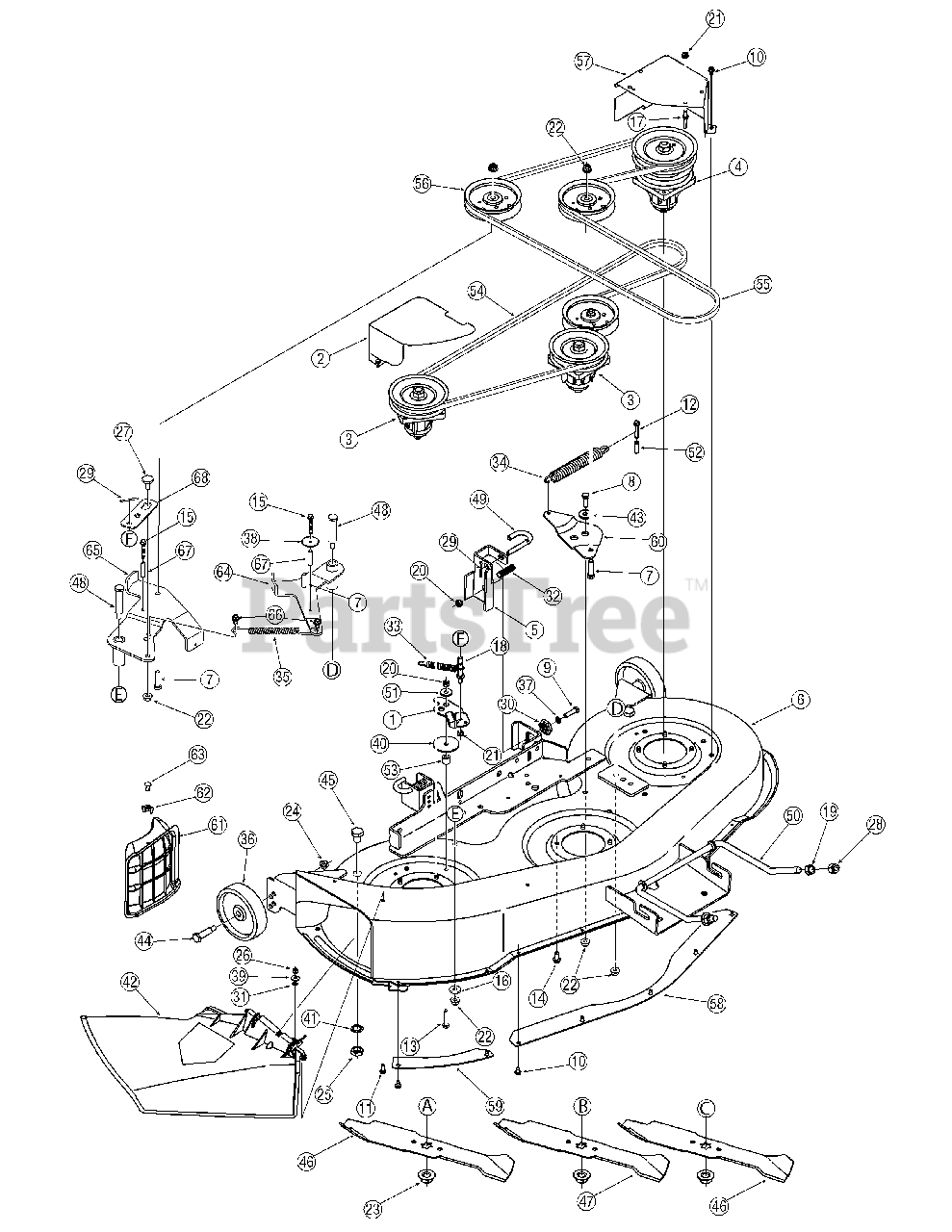

Deck Assembly Parts Diagram

  • Title

1

MTD 17116

Brake Assembly, Deck
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

2

MTD 17258E

RH Belt Cover, Deck 46"

Variations

MTD 17258E-0483

Deck Belt Cover, 46" Gray - CHARCOAL GRAY (0483)

$54.99

$

Usually ships in 3-6 days

0

MTD 17258E-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

MTD 17258E-0650

COVER:BELT:DECK 46 - RED METALLIC (0650)

$54.99

$

In Stock, only 2 left!

0

MTD 17258E-4008

COVER:BELT:DECK 46 - WINE RED (4008)

$54.99

$

In Stock, only 2 left!

0

MTD 17258E-0606

COVER:BELT:DECK 46 - MAJESTIC ORANGE (0606)

$54.99

$

In Stock, only 2 left!

0

MTD 17258E-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 2 left!

0

MTD 17258E-0691

COVER:BELT:DECK 46 - BLACK JACK (0691)

$54.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 618-0240A

Spindle Assembly, 5.00 Dia.
(Superseded to 918-0240C)

Note: If Spindle Housing has grease fitting, please refer to part number 918-0430B

$136.99

$

In Stock, only 3 left!

0

3

MTD 17983

Bearing Shield
(Superseded to 504-01396)

Note: Not shown

$

$

Not available

3

MTD 619-0042A

Spindle Housing
(Superseded to 753-07015)

Note: Not shown

$57.99

$

In Stock, only 1 left!

0

3

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

MTD 738-0927

Spindle Shaft:4.450 LG.

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0

3

MTD 741-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

3

MTD 748-0434

Spacer: .750 X 1.150 X .230 LG

Note: Not shown

$4.49

$

In Stock, Qty 5

0

3

MTD 750-0952

Spacer: .792 X 1.060 X 1.800 LG

Note: Not shown

$7.49

$

In Stock, Qty 6

0

3

MTD 756-1187

Pulley:5.00 Dia

Note: Not shown

$38.99

$

In Stock, only 2 left!

0

4

MTD 918-04134C

Spindle Ass’y, Double Pulley
(Superseded to 918-04134D)

$164.99

$

In Stock, only 1 left!

0

4

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

4

MTD 736-0315

Flat Washer:.760 x 1.5

Note: Not shown

$6.99

$

In Stock, Qty 6

0

4

MTD 938-1128

Spindle Shaft:6.58 LG.

Note: Not shown

$46.99

$

In Stock, Qty 13

0

4

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

4

MTD 750-04440

Spacer: .792 X 1.060 X 1.680 LG

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

4

MTD 750-04936

Spacer: .792 X 1.060 X 1.860 LG

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

4

MTD 750-1304

Spacer: .792 X 1.060 X .400 LG

Note: Not shown

$5.99

$

Usually ships in 3-6 days

0

4

MTD 756-04094

Pulley:5.00 Dia x .80 ID

Note: Not shown

$33.99

$

Usually ships in 3-6 days

0

4

MTD 756-1188

Pulley:5.75 Dia

Note: Not shown

$36.99

$

In Stock, Qty 8

0

5

MTD 683-0254B

Hanger Bracket Assembly

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

6

MTD 683-04254

Deck Weldment
(Superseded to 983-04254)

Variations

MTD 683-04254-0637

DECK ASM:SD:46" W/WHEEL BRKTS - POWDER BLACK (0637)

$1265.99

$

Usually ships in 3-6 days

0

MTD 683-04254-0650

"No Longer Available DECK ASM-SD 46"" W/NOZZLE" - RED METALLIC (0650)

$

$

Not available

MTD 683-04254-0691

DECK ASM-SD 46" W/NOZZLE - BLACK JACK (0691)

$

$

Not available

MTD 683-04254-4008

DECK ASM:SD:46" W/WHEEL BRKTS - WINE RED (4008)

$

$

Not available

$1024.99

$

Usually ships in 3-6 days

0

7

MTD 710-0520

Screw, 3/8-16, 1.50, Gr5

$4.49

$

In Stock, Qty 5

0

8

MTD 710-0514

Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 19

0

10

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3015

Screw, 1/4-20, .75, Gr5

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0805

Screw, 5/16-18, 1.50, Gr5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-1260A

Screw, Ld, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-1026

Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

16

MTD 736-0247

Washer, Flat, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 12

0

17

MTD 711-0993

Belt Guard Pin 1/4 Dia x 1.43
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

18

MTD 711-1554

Pin, 1/4-20, 3/8 x 2.0

$10.99

$

Usually ships in 3-6 days

0

19

MTD 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

MTD 712-0431

Nut, Flange Lock, 3/8-16, GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

25

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

26

MTD 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 17

0

27

MTD 738-0322

Shld, Screw, .625 Dia. x .217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

28

MTD 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-0470

Pin, Cot, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

30

MTD 717-04074

Adjustment Gear, Deck
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

31

MTD 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

32

MTD 732-0306A

Sprg, Compress, .531 OD x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

33

MTD 732-0429A

Spring, Extension, .50 Dia x 3.97
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

34

MTD 732-0594A

Spring, Extension, .91 Dia x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

35

MTD 732-0944

Spring, Extension, .75 OD x 6.75

$10.99

$

In Stock, only 1 left!

0

36

MTD 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

37

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 736-0211

Washer, Flat, .285 x 1.25 x .06

$6.99

$

In Stock, only 3 left!

0

39

MTD 736-0270

Washer, Bell, .265 x.75 x . .062

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0418A

Washer, Flat, .34 x 2.25 x .10

$10.99

$

Usually ships in 3-6 days

0

41

MTD 736-0225

Washer, Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

42

MTD 731-1032B

Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

43

MTD 738-0347

Spacer, Shoulder, .625 ID x .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

44

MTD 738-0373

Spacer, Shoulder, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

45

MTD 738-04146

Plug

$9.49

$

Usually ships in 3-6 days

0

46

MTD 742-0611A

Blade, 16.28", Star 3-in-One
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

47

MTD 742-0612A

Blade, 14.88", Star 3-in-One
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 13

0

48

MTD 738-04216

Shld. Screw, .625 x 2.515 x .875
(Superseded to 738-04216A)

$8.49

$

In Stock, Qty 6

0

49

MTD 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

50

MTD 747-1130B

Rod, Deck Adjustment

$41.99

$

In Stock, only 3 left!

0

51

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

52

MTD 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

53

MTD 750-1320

Spacer, .375 x .63 x .595

$

$

Not available

54

MTD 754-0349

Belt, V-Type, Poly, A x 79.10
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

55

MTD 754-04122

Belt, V-Type, A x 90.24
(Superseded to 954-04122)

$41.99

$

In Stock, Qty 14

0

56

MTD 756-04129

Pulley, Idler, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

57

MTD 783-1348C

Belt Cover, LH
(Superseded to 783-1348D)

Variations

MTD 783-1348C-0483

Belt Cover, LH 46" Gray - CHARCOAL GRAY (0483)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348C-0637

Belt Cover, LH 46" - POWDER BLACK (0637)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348C-0650

Belt Cover, LH 46" - RED METALLIC (0650)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348C-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348C-0691

Belt Cover, LH 46" - BLACK JACK (0691)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348C-4008

COVER-BELT:LH 46" - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

58

MTD 783-0141

Deck Skirt, Center

Variations

MTD 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

59

MTD 783-0142

Deck Skirt, RH
(Superseded to 783-0142-0637)

Variations

MTD 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

60

MTD 783-04641

Bracket, Idler
(Superseded to 783-04641A-0637)

Variations

MTD 783-04641-0637

Idler Bracket, 46" - POWDER BLACK (0637)

$

$

Not available

MTD 783-04641-4008

BRACKET-IDLER:46" - WINE RED (4008)

$

$

Not available

$

$

61

MTD 731-05264

Mulch Plug (if equipped)

$28.99

$

In Stock, only 2 left!

0

62

MTD 712-3087

Wing Nut (if equipped)

$3.99

$

In Stock, Qty 20+

0

63

MTD 710-0134

Carriage Screw, 1/4-20 x .62 (if equipped)

$4.49

$

In Stock, Qty 20+

0

64

MTD 683-04250

Idler Bracket Assembly - LH
(Superseded to 683-04250A)

Variations

MTD 683-04250-0637

Bracket Assembly, 46" LH Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 1 left!

0

MTD 683-04250-4008

Bracket Assembly, 46" LH Red - WINE RED (4008)

$54.99

$

In Stock, only 1 left!

0

$50.99

$

Usually ships in 3-6 days

0

65

MTD 683-04251

Idler Bracket Assembly - RH
(Superseded to 683-04251A)

Variations

MTD 683-04251-0637

Bracket Assembly, 46" RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-04251-4008

BRACKET-ASM:46" RH - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

66

MTD 710-0623

Screw, 3/8-16 x .750

$4.49

$

In Stock, Qty 20+

0

67

MTD 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

68

MTD 783-04991

Brake Bracket
(Superseded to 783-04991A)

Variations

MTD 783-04991-0637

Brake Bracket, 46" - POWDER BLACK (0637)

$

$

Not available

MTD 783-04991-4008

BRACKET:BRAKE:46" - WINE RED (4008)

$

$

Not available

$

$
