13AN475F000 - Yard Machines Lawn Tractor (1998) Hood (Style 5) Parts Diagram

Lawn Tractor

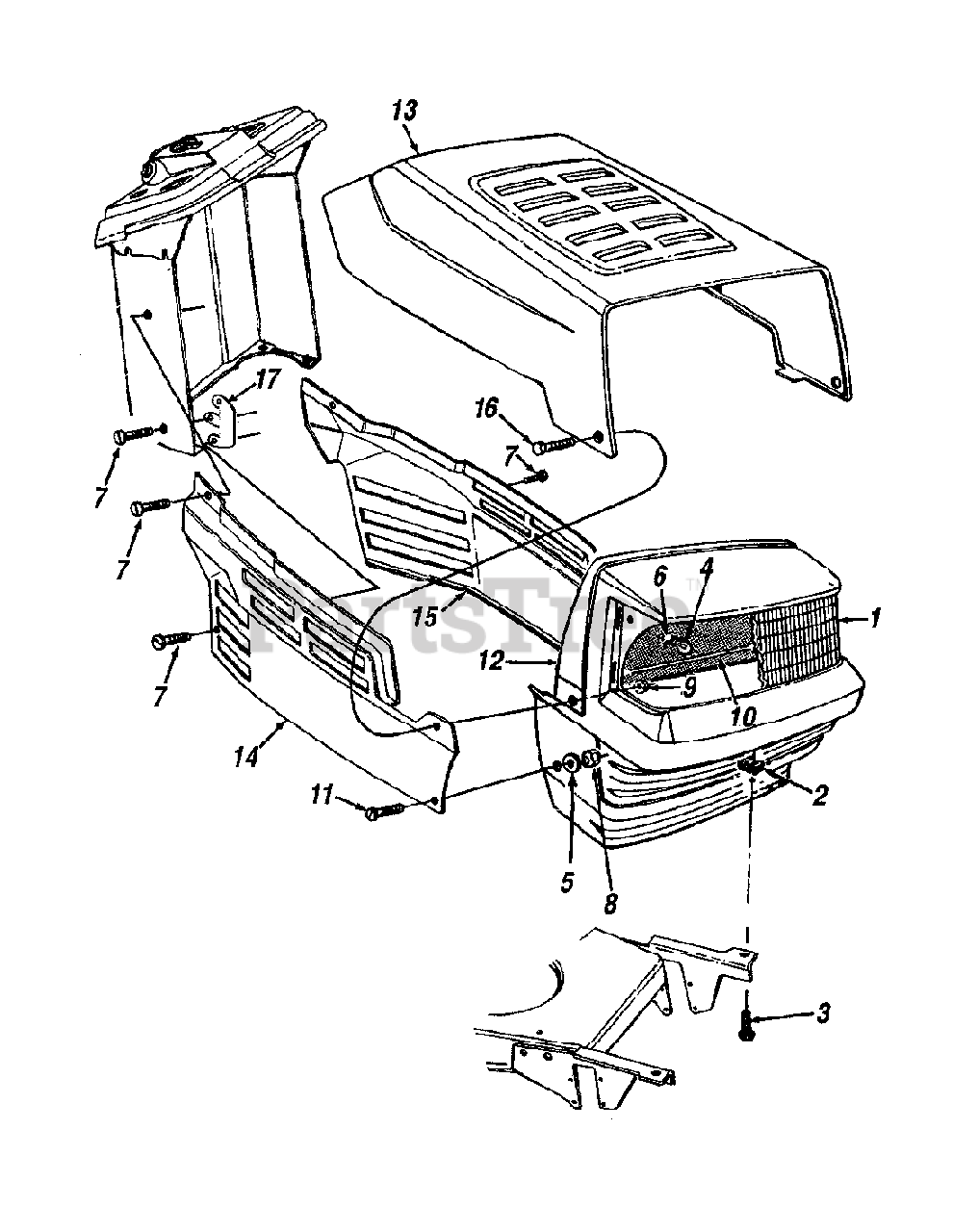

Hood (Style 5) Parts Diagram

  • Title

1

MTD 731-1099A

Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

2

MTD 712-0211

U-Nut 5/16-18 Thd.

$

$

Currently unavailable

3

MTD 710-3008

Hex Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

4

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

5

MTD 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

7

MTD 710-0599

Hex TT-Tap. Screw 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-3006

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 19

0

9

MTD 712-3027

Flange Lock Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

10

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

11

MTD 710-0924

Pan Hd. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

12

MTD 731-1097E

Grille
(Superseded to 931-1097G)

$192.99

$

Usually ships in 3-6 days

0

13

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

14

MTD 783-0150A

Side Panel-R.H.

Variations

MTD 783-0150A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0150A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0150A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0150A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0150A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0150A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0150A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0150A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0150A-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0150A-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0150A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0150A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0150A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0150A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0150A-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0150A-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0150A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0150A-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0150A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0150A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

15

MTD 783-0151

Side Panel-L.H.

Variations

MTD 783-0151-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0151-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0151-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0151-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0151-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0151-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0151-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0151-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0151-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0151-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0151-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0151-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0151-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0151-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

16

MTD 738-0952

Shoulder Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

17

MTD 783-0284

Mounting Bracket

Variations

MTD 783-0284-0637

No Longer Available BRACKET-PA - POWDER BLACK (0637)

$

$

Not available

$

$
