13AM77LS058 - Murray Lawn Tractor (2012) Hood Style 0 Parts Diagram

Lawn Tractor

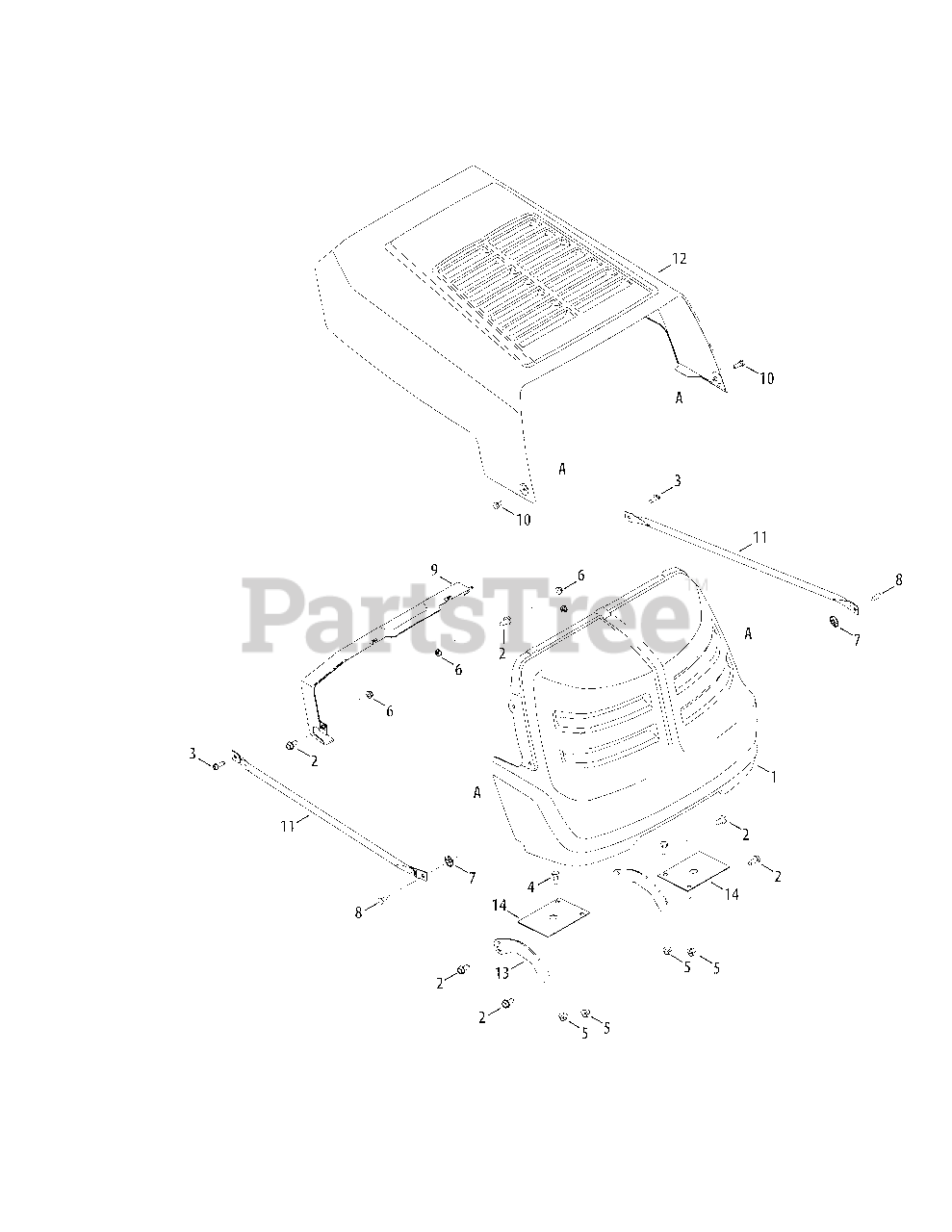

Hood Style 0 Parts Diagram

  • Title

1

MTD 931-04472

Grill Assembly
(Superseded to 931-05028)

$

$

Not available

2

MTD 710-04484

Screw, Tap, 5/16-18x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0642

Screw, Tap, 1/4-20x 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3008

Hex Screw, 5/16-18x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 926-04012

Nut, push-On, .25 Dia
(Superseded to 726-04012)

$

$

Not available

8

MTD 728-0162

Rivet, flat Head 1/4"

$4.99

$

Usually ships in 3-6 days

0

9

MTD 731-05012B

Collar, dash

$17.99

$

Usually ships in 3-6 days

0

10

MTD 938-0952A

Bolt, Shoulder, .375 X .125

$7.49

$

In Stock, Qty 10

0

11

MTD 749-04220-0637

Grill Support Rod

$26.99

$

Usually ships in 3-6 days

0

12

MTD 783-04608-4066

Hood

$255.99

$

Usually ships in 3-6 days

0

13

MTD 783-05027-0637

Front Pivot Support Bracket

$20.99

$

Usually ships in 3-6 days

0

14

MTD 783-06682-0637

Support Bracket

$3.99

$

Usually ships in 3-6 days

0
