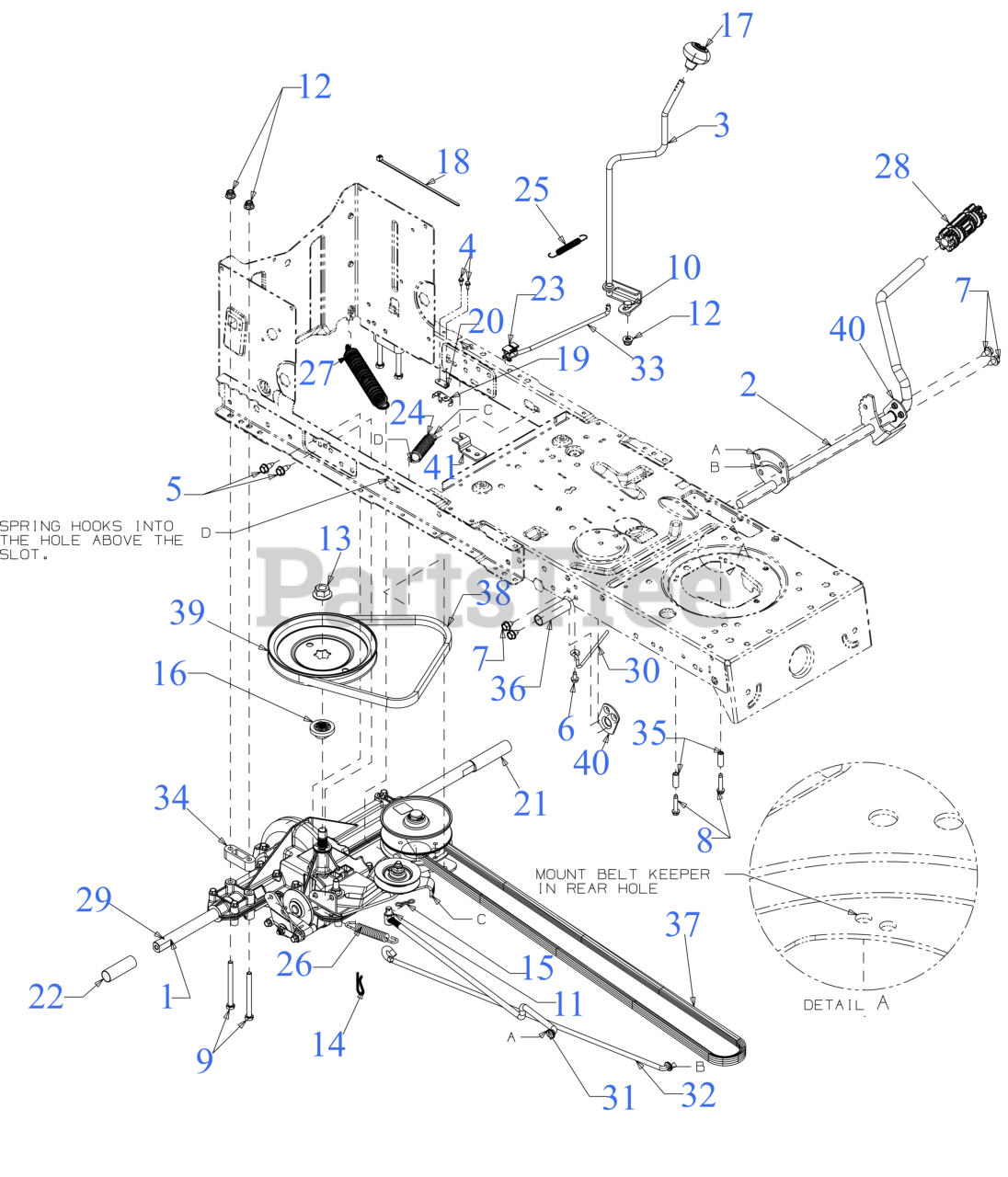

13AM77BSA23 - Troy-Bilt Pony 42" Lawn Tractor (2023) Drive Parts Diagram

Pony 42" Lawn Tractor

Drive Parts Diagram

  • Title
1

Troy-Bilt 618P09815

TRANSAXLE

Note: (See Separate Breakdown)

$453.99

$

Usually ships in 3-6 days

0

1

TRANSMISSION PULLEY

Note: (See Separate Breakdown)

$

$

Not available

1

Troy-Bilt 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 647-04034E

PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 647-04034E-0637

Drive Pedal Assembly, Black - POWDER BLACK (0637)

$86.99

$

In Stock, only 1 left!

0

Troy-Bilt 647-04034E-0606

PEDAL ASSEMBLY (MAJESTIC ORANGE) - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

Troy-Bilt 647-04034E-0638

PEDAL ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$86.99

$

Usually ships in 3-6 days

0

Troy-Bilt 647-04034E-0650

PEDAL ASSEMBLY (RED METALLIC) - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 647-04034E-0665

PEDAL ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 647-04266A

SHIFT LEVER ASSEMBLY

$26.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

9

Troy-Bilt 710-1266

SCREW 5/16-18X3.5 GR5

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 711-06103

FERRULE 3/8-24 x .375

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 914-0209

COTTER PIN

$3.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 718-04407

PULLEY HUB

$12.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 720-04028

SHIFT KNOB

$10.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 725-1644

SAFETY SPRING SWITCH

$9.99

$

In Stock, Qty 11

0

20

Troy-Bilt 926-0320

INSULATOR NUT PLATE

$6.99

$

In Stock, Qty 11

0

$6.49

$

In Stock, only 1 left!

0

$6.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 731-27275

SHIFT ROD BEARING

Note: (3/24/22 & After)

$4.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-06894A

SHIFT ROD BEARING

Note: (3/24/22 & Before)

$5.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 732-04306

EXTENSION SPRING

$10.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04488

EXTENSION SPRING .38 OD x 3.25 LG

$6.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 732-0716D

EXTENSION SPRING

$13.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 732-08186

EXTENSION SPRING 1.08 DIA x 7.37

$9.49

$

In Stock, only 3 left!

0

28

Troy-Bilt 735-05051

BRAKE PEDAL PAD

$11.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 747-04969

BELT KEEPER ROD

$6.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 747-05186

VARIABLE SPEED ROD

$15.99

$

Usually ships in 3-6 days

0

32

$12.99

$

In Stock, only 1 left!

0

33

$11.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 948-0334

TRANSAXLE SPACER

$10.99

$

In Stock, only 1 left!

0

$9.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 750-0802

SPACER-5/8 ID x 2.

$6.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 954-04249A

V-BELT 70.90"

$45.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 954-05040

V-BELT 5L x 35.25

$45.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 956-04002

V-PULLEY W/HUB 7.25 DIA

$27.99

$

In Stock, Qty 19

0

40

Troy-Bilt 783-04536B

PEDAL SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 783-04595A

SHIFT ADJUSTMENT BRACKET

$10.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-06991

LATCH SPEED BRACKET

Variations

Troy-Bilt 783-06991-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0
