13AM772S000 - Yard Machines Lawn Tractor (2012) Engine Accessories B&S Model 28 w Low Muffler Parts Diagram

Lawn Tractor

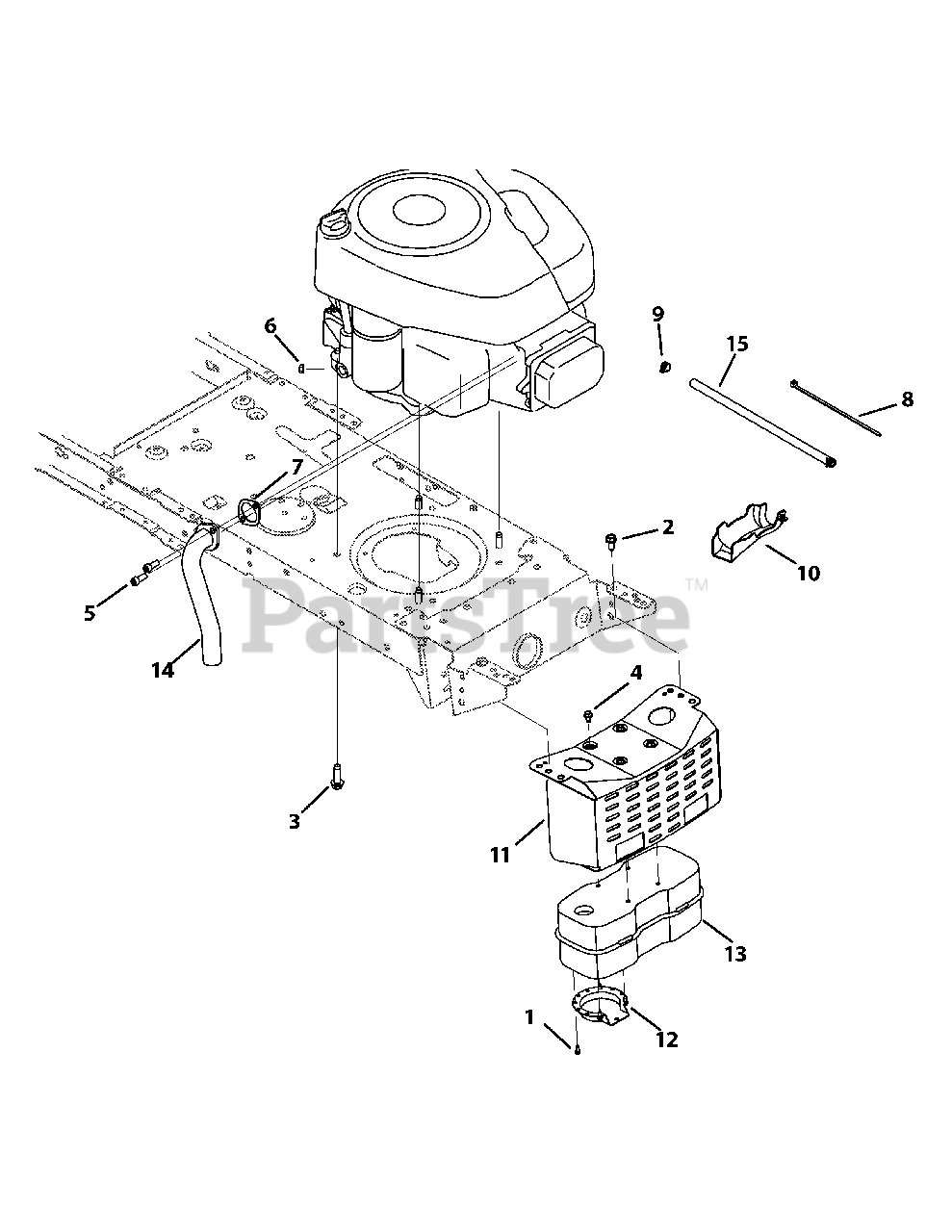

Engine Accessories B&S Model 28 w Low Muffler Parts Diagram

  • Title

1

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-04683

Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

4

MTD 710-0599

Screw, 1/4-20 x 5.00

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

7

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp, .490 Diameter

$3.99

$

In Stock, Qty 18

0

10

MTD 731-05628

Oil Drain Sleeve

$8.49

$

Usually ships in 3-6 days

0

11

MTD 783-0615E

Muffler Bracket

Variations

MTD 783-0615E-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$59.99

$

Usually ships in 3-6 days

0

12

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

13

MTD 751-0617C

Single Inlet Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

14

MTD 751-0619A

Exhaust Pipe, Single Briggs
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

15

MTD 751-10349-28

Fuel Hose, Low Permeation

$41.99

$

In Stock, only 1 left!

0
