13AM762F765 - Bolens Lawn Tractor (2007) Transmission Asssembly Parts Diagram

Lawn Tractor

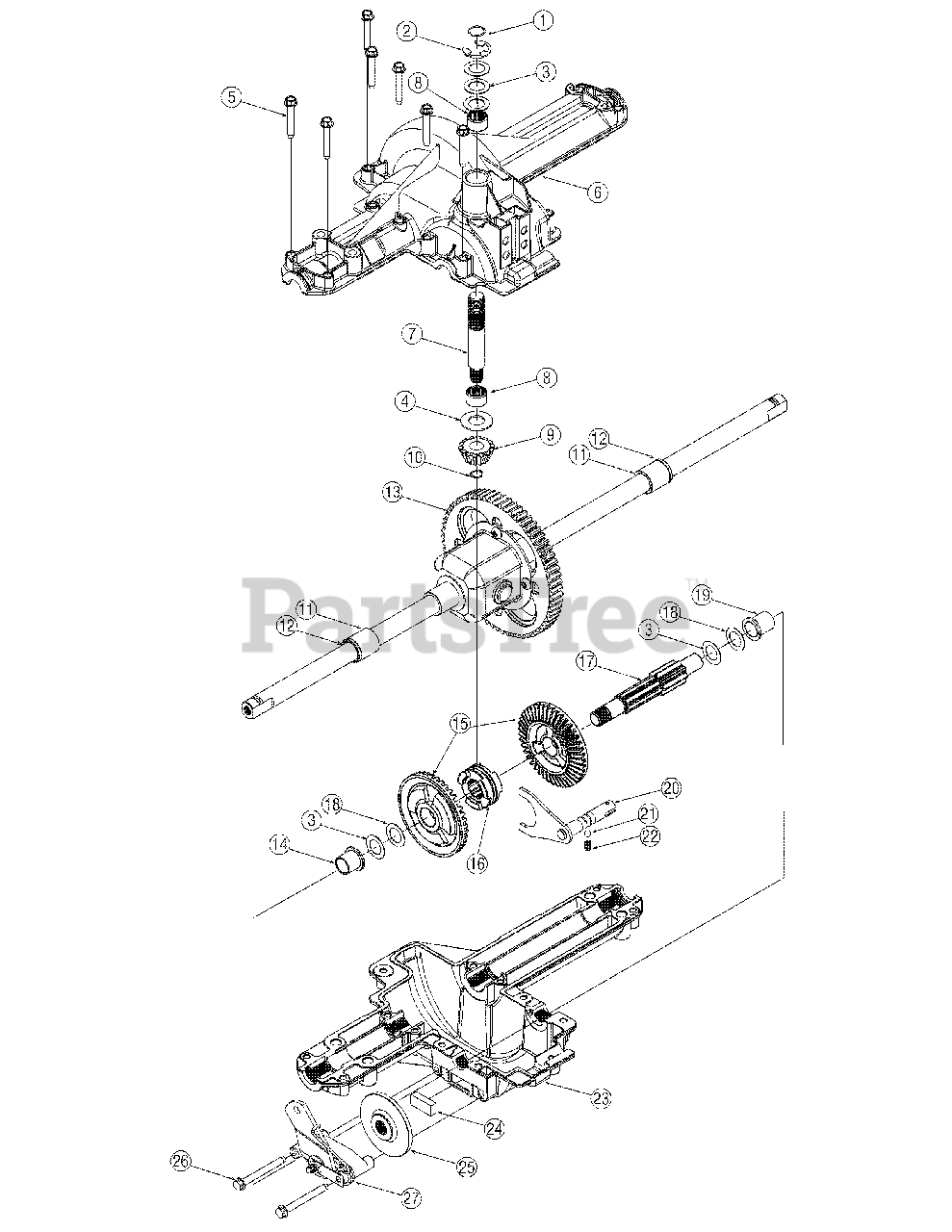

Transmission Asssembly Parts Diagram

  • Title

1

MTD 732-0614

Ring, Wire

$6.49

$

In Stock, only 1 left!

0

2

MTD 716-0231

Ring, E Type,.750

$3.99

$

In Stock, Qty 20+

0

3

MTD 736-0336

Flat Washer, 5/8 x 1.0 x.030
(Superseded to 936-0336)

Note: Use applicable flat washer (ref. #'s 3 or 18) in this application allowing .0150/.0020 in. end-play

$4.49

$

In Stock, Qty 7

0

3

MTD 736-0337

Flat Washer, 5/8 x 1.0 x.040

Note: Use applicable flat washer (ref. #'s 3 or 18) in this application allowing .0150/.0020 in. end-play

$4.49

$

In Stock, Qty 9

0

3

MTD 7360349

FLAT WASHER .630R-
(Superseded to 936-0349)

Note: Use applicable flat washer (ref. #'s 3 or 18) in this application allowing .0150/.0020 in. end-play

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0335

Washer, Thrust.635 x 1.26 x.06

$6.99

$

In Stock, Qty 8

0

5

MTD 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

6

MTD 719-04017

Upper Housing
(Superseded to 918-04168)

$

$

Not available

7

MTD 711-1109

Input Shaft

$37.99

$

In Stock, only 1 left!

0

8

MTD 741-0335

Needle Bearing,.625 x.813 x.495
(Superseded to 941-0335)

$18.99

$

In Stock, only 1 left!

0

9

MTD 717-1464

14-tooth Bevel Pinion

$22.99

$

In Stock, only 2 left!

0

10

MTD 716-0108

Retaining Ring,.437

$5.49

$

Usually ships in 3-6 days

0

11

MTD 741-0340

Sleeve Bearing,.75 x.1.0 x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

12

MTD 721-0338

Seal,.75 x 1.0 x.125
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

13

MTD 618-04041A

Differential Assembly
(Superseded to 918-04096A)

$

$

Not available

14

MTD 741-0336

Flange Bearing, 5/8 x 3/4 x 3/4
(Superseded to 941-0336)

$11.99

$

In Stock, only 1 left!

0

15

MTD 717-04056

42-tooth Bevel Gear
(Superseded to 917-04056)

$36.99

$

In Stock, Qty 20+

0

16

MTD 718-04045

Clutch Collar
(Superseded to 918-04045)

$19.99

$

In Stock, Qty 14

0

17

MTD 711-04134

Drive Shaft
(Superseded to 918-04079)

$127.99

$

In Stock, only 2 left!

0

18

MTD 736-0495

THRUST WASHER

Note: Use applicable flat washer (ref. #'s 3 or 18) in this application allowing .0150/.0020 in. end-play

$4.49

$

In Stock, only 2 left!

0

18

MTD 736-0494

Flat Washer,.632 x 1.00 x.035

Note: Use applicable flat washer (ref. #'s 3 or 18) in this application allowing .0150/.0020 in. end-play

$4.99

$

In Stock, only 4 left!

0

19

MTD 741-0337

Flange Bearing, 5/8 x 3/4 x 15/16
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 5

0

20

MTD 611-0011

Detent Shaft Assembly
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

21

MTD 741-0862

DETENT BALL .250

$4.49

$

In Stock, Qty 20+

0

22

MTD 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

In Stock, only 1 left!

0

23

MTD 719-04018

Lower Housing
(Superseded to 919-04018)

$93.99

$

In Stock, only 2 left!

0

24

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

25

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

26

MTD 710-1206

Self-tapping Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

27

MTD 661-0001

Brake Assembly
(Superseded to 961-0001)

$57.99

$

Usually ships in 3-6 days

0

MTD 737-0148

Grease (19 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
