13AM693G054 - Mastercraft Lawn Tractor (1997) Muffler (Part 3) Parts Diagram

Lawn Tractor

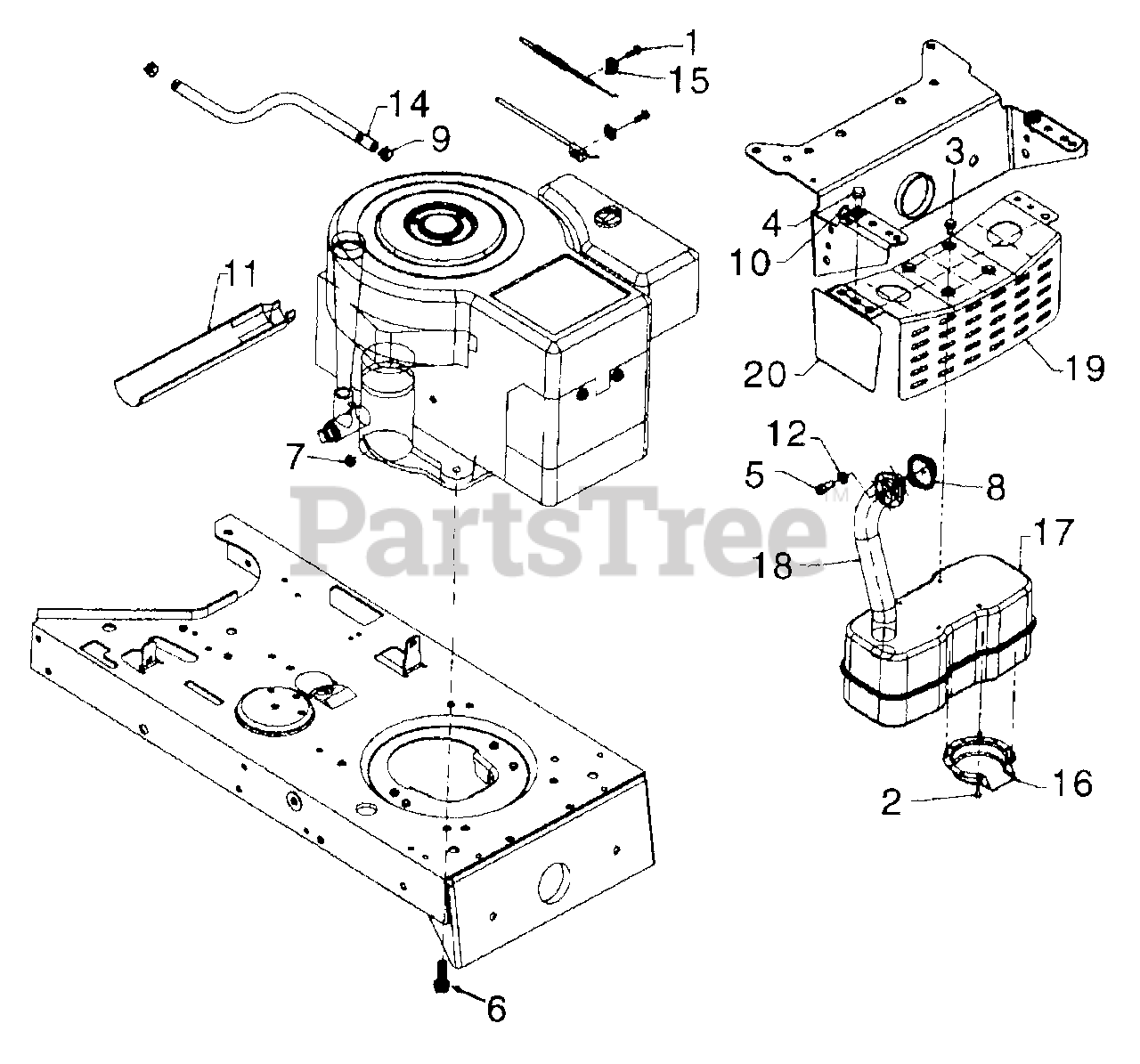

Muffler (Part 3) Parts Diagram

  • Title

1

MTD 710-1237

Hex Wash. Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

2

MTD 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

3

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314

Socket Head Scr. 5/16-18 x .62"
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Hex TT-Tap Scr. 3/8-16 x 1.25"

$4.49

$

In Stock, only 2 left!

0

7

MTD 712-0271

Hex Sems Scr. 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

8

MTD 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

11

MTD 731-1682A

Oil Drain Sleeve

Note: New Part

$7.99

$

In Stock, Qty 6

0

12

MTD 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 751-0535-12

Fuel Line 12" Lg.
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

15

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

16

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

17

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

MTD 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

19

MTD 783-0320A

Muffler Brkt.
(Superseded to 783-0615E-0637)

Note: New Part

Variations

MTD 783-0320A-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

20

MTD 783-0385

Shield Brkt.

$

$

Not available
