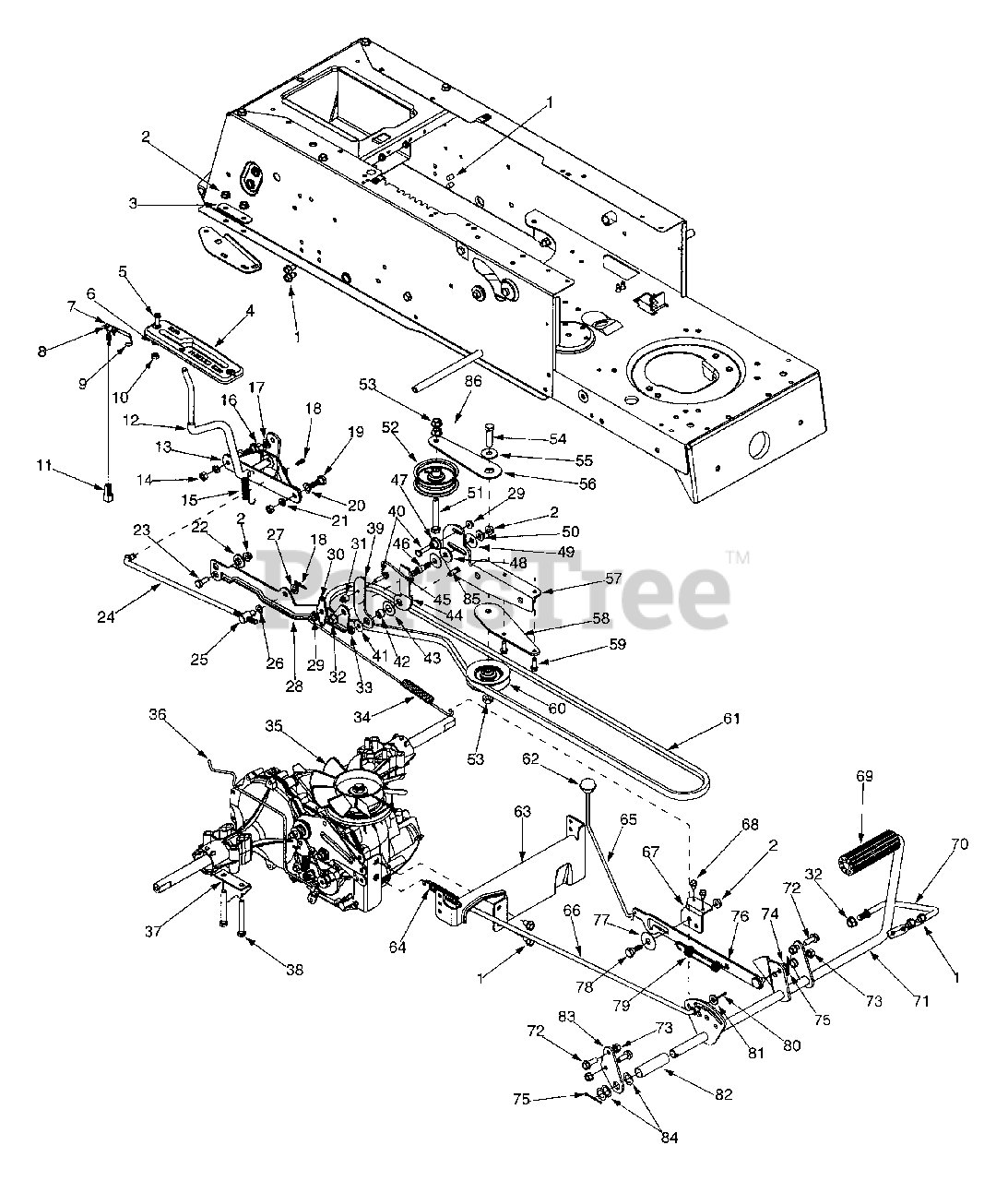

13AM693G026 - Yard Machines Lawn Tractor (2001) (Chase Pitkin) Drive & Controls Parts Diagram

Lawn Tractor

Drive & Controls Parts Diagram

  • Title

1

MTD 710-0604A

Hex Washer Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

4

MTD 731-1734

Hydro Bracket Indicator
(Superseded to 931-1734)

$

$

Not available

5

MTD 710-0924

Machine Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

7

MTD 710-0227

Hex Washer Screw #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

8

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

9

MTD 725-1713

Spring Switch

$12.99

$

Usually ships in 3-6 days

0

10

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

11

MTD 725-1399

Wire Assembly

$

$

Not available

12

MTD 647-0008A

Control Speed Lever Assembly

$

$

Not available

13

MTD 783-0122

Speed Bracket Control

$4.99

$

In Stock, only 1 left!

0

14

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

15

MTD 732-0433

Spring Extension

$

$

Not available

16

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

17

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0141

Spring Washer 7/16 x .740
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

21

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

24

MTD 747-1276

Engage Rod 12.75 Lg

$

$

Not available

25

MTD 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

26

MTD 736-0413

Spring Washer

$6.99

$

In Stock, only 2 left!

0

27

MTD 736-0185

Flat Washer .375 ID x .738 OD

$3.99

$

In Stock, Qty 20+

0

28

MTD 783-1314

Return Neutral Bracket

Variations

MTD 783-1314-0637

No Longer Available BRKT-NEUTR - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

30

MTD 783-0096

Neutral Return Lever

$

$

Not available

31

MTD 748-0368

Shoulder Spacer

$

$

Not available

32

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

33

MTD 712-0273

Hex Lock Nut 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

34

MTD 732-0727

Neutral Return Spring
(Superseded to 932-0727)

$10.99

$

In Stock, only 1 left!

0

35

MTD 731-1449A

Blade Fan
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

36

MTD 747-1277

Hydro Bypass Rod
(Superseded to 747-1277B)

$

$

Not available

37

MTD 17994

Transaxle Spring Retainer Bracket
(Superseded to 17994-0637)

Variations

MTD 17994-0637

BRACKET-TRANS RETA - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-0176

Hex Cap Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

39

MTD 783-0092

Flat Scissor

$

$

Not available

40

MTD 710-0299

Hex Cap Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

41

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

42

MTD 750-0808

Spacer .340 ID x .560 OD

$

$

Not available

43

MTD 736-0414

Flat Washer .570 ID x 1.20 OD

$4.49

$

In Stock, only 4 left!

0

44

MTD 783-0093

Offset Scissors

$

$

Not available

45

MTD 747-0887

Neutral Return Rod

$

$

Not available

46

MTD 738-1170

Friction Stud

$

$

Not available

47

MTD 750-0918

Spacer

$

$

Not available

48

MTD 761-0196

Friction Washer .385 ID x 1.13 OD
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

49

MTD 736-0219

Bell Washer .39 ID x 1.13 OD
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

50

MTD 736-3008

Flat Washer .344 ID x .750 OD
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

51

MTD 710-0859

Hex Cap Screw 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

52

MTD 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

53

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

54

MTD 710-0520

Hex Cap Screw 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

55

MTD 738-0347

Shoulder Spacer .625 OD
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

56

MTD 783-1313

Flat Idler Bracket
(Superseded to 783-1313-0637)

Variations

MTD 783-1313-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 783-0095

Return Neutral Mounting Bracket

$

$

Not available

58

MTD 783-1315

Idler Bracket

Variations

MTD 783-1315-0637

Idler Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

60

MTD 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

MTD 756-04011

Engine Pulley
(Superseded to 756-0983B)

Note: (Not Shown)

$83.99

$

Usually ships in 3-6 days

0

61

MTD 754-0338

Belt
(Superseded to 954-0338)

$61.99

$

In Stock, only 1 left!

0

62

MTD 720-0166

Ball Knob

$

$

Not available

63

MTD 783-1312

Hydro Trans Bracket
(Superseded to 783-1312-0637)

Variations

MTD 783-1312-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 732-0716

Extension Spring .59 OD x 4.0
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

65

MTD 747-0608A

Lockout Brake Rod

$

$

Not available

66

MTD 747-1274

Brake Rod 22.25 Lg

$

$

Not available

67

MTD 17755A

Hydro Bracket

$

$

Not available

68

MTD 710-0599

Hex Washer Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

69

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

70

MTD 747-1216

Stop Rod 3/8

$

$

Not available

71

MTD 683-0123

Brake Clutch Pedal Assembly

Variations

MTD 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

MTD 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

MTD 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

MTD 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

72

MTD 710-1238

Hex Washer Screw 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

73

MTD 712-0265

Nut 5/16-18

$3.99

$

Usually ships in 3-6 days

0

74

MTD 736-0140

Flat Washer .385 ID x .62 OD

$7.49

$

In Stock, Qty 7

0

75

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

76

MTD 683-0049

Lockout Bracket Assembly
(Superseded to 683-0049-0637)

Variations

MTD 683-0049-0637

Brake Lock Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 736-0406

Flat Washer .442 ID x 1.38 OD
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

78

MTD 738-0296

Shoulder Screw .437 x .286 Lg

$4.49

$

In Stock, Qty 20+

0

79

MTD 732-0728

Extension Spring 4.31 Lg

$11.99

$

Usually ships in 3-6 days

0

80

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

81

MTD 736-3008

Flat Washer .344 ID x .750 OD
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

82

MTD 750-0802

Spacer .640 ID x .760 OD

$6.99

$

Usually ships in 3-6 days

0

83

MTD 17860

Pedal Mounting Bracket
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

84

MTD 736-0256

Flat Washer .635 ID x .930 OD
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

85

MTD 710-1012

Bolt 5/16-24

$4.49

$

Usually ships in 3-6 days

0

86

MTD 732-0384

Extension Spring .62 Dia x 6.12 Lg
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0
