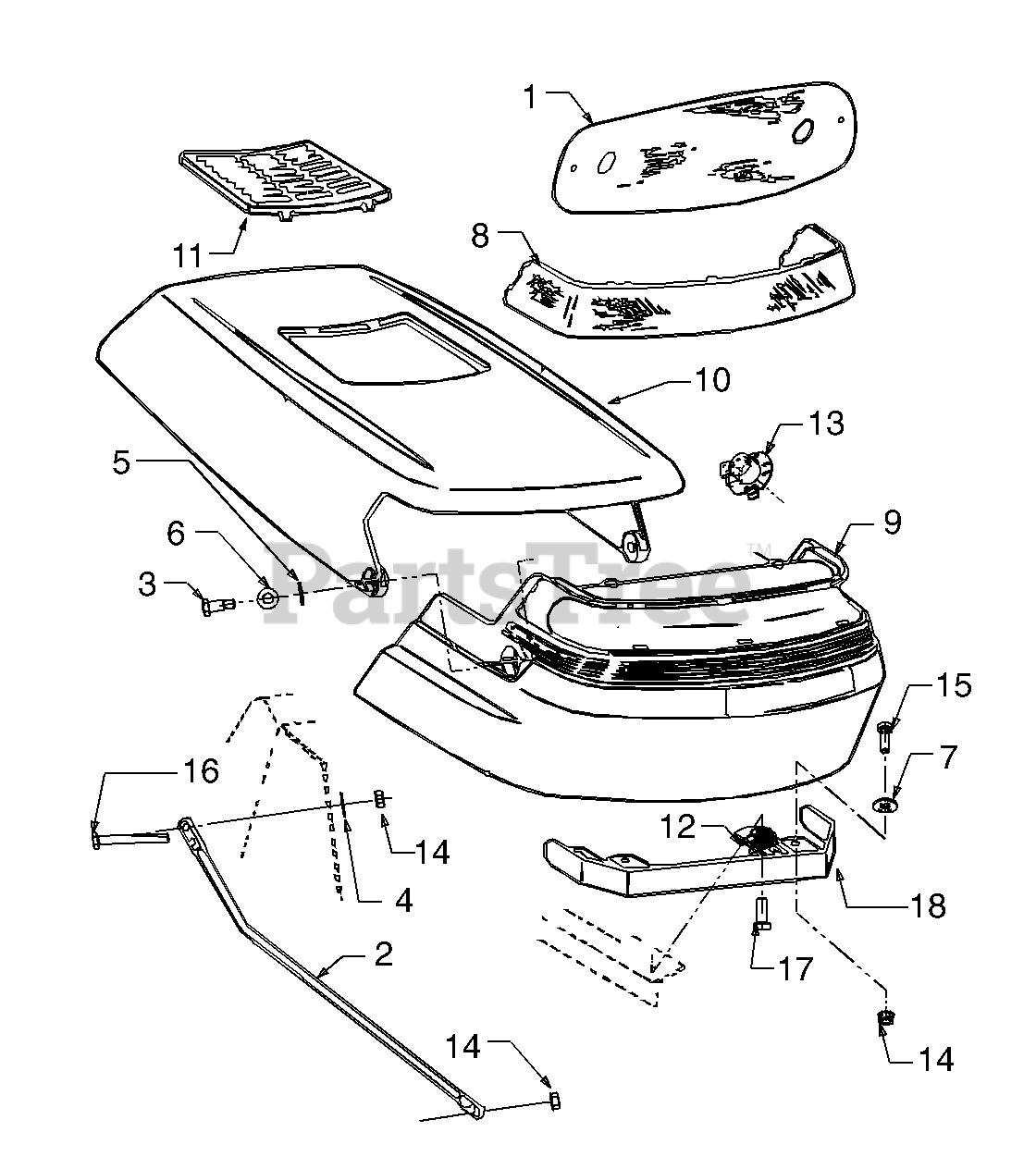

13AM47GF062 - Yard Machines Lawn Tractor (1998) (Lowes) Hood (Style G) Parts Diagram

Lawn Tractor

Hood (Style G) Parts Diagram

  • Title

1

MTD 777-5309

Label

$

$

Currently unavailable

2

MTD 749-0997A

Rod
(Superseded to 749-0997A-0637)

Variations

MTD 749-0997A-0637

ROD-GRILLE "G" STY - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 738-0973

Shoulder Screw .312 x .450: 1/4-20

$

$

Not available

4

MTD 736-0342

Flat Washer .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

5

MTD 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

6

MTD 736-0271

Spring Washer .317 x .625 O.D. x .099
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

7

MTD 736-0173

Flat Washer .28 I.D. x .74 O.D.

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-1897

Lens: G Style

$

$

Not available

9

MTD 731-1896

Grille: G Style
(Superseded to 931-1896)

$

$

Not available

10

MTD 731-1895

Hood: G Style (MTD Red)
(Superseded to 931-1895)

$

$

Not available

11

MTD 731-1894

Louver Plate

$

$

Not available

12

MTD 726-0211

U Nut

$4.49

$

In Stock, only 1 left!

0

13

MTD 725-1649

Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

14

MTD 712-0271

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3015

Hex Bolt: 1/4-20 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-0751

Hex Bolt 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-3008

Hex Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

18

MTD 683-0169

Grille Support Assembly

$

$

Not available
