13ALA9BTA66 (46 I) - Troy-Bilt Super Bronco XP 46" Lawn Tractor (2023) Engine Accessories Parts Diagram

Super Bronco XP 46" Lawn Tractor

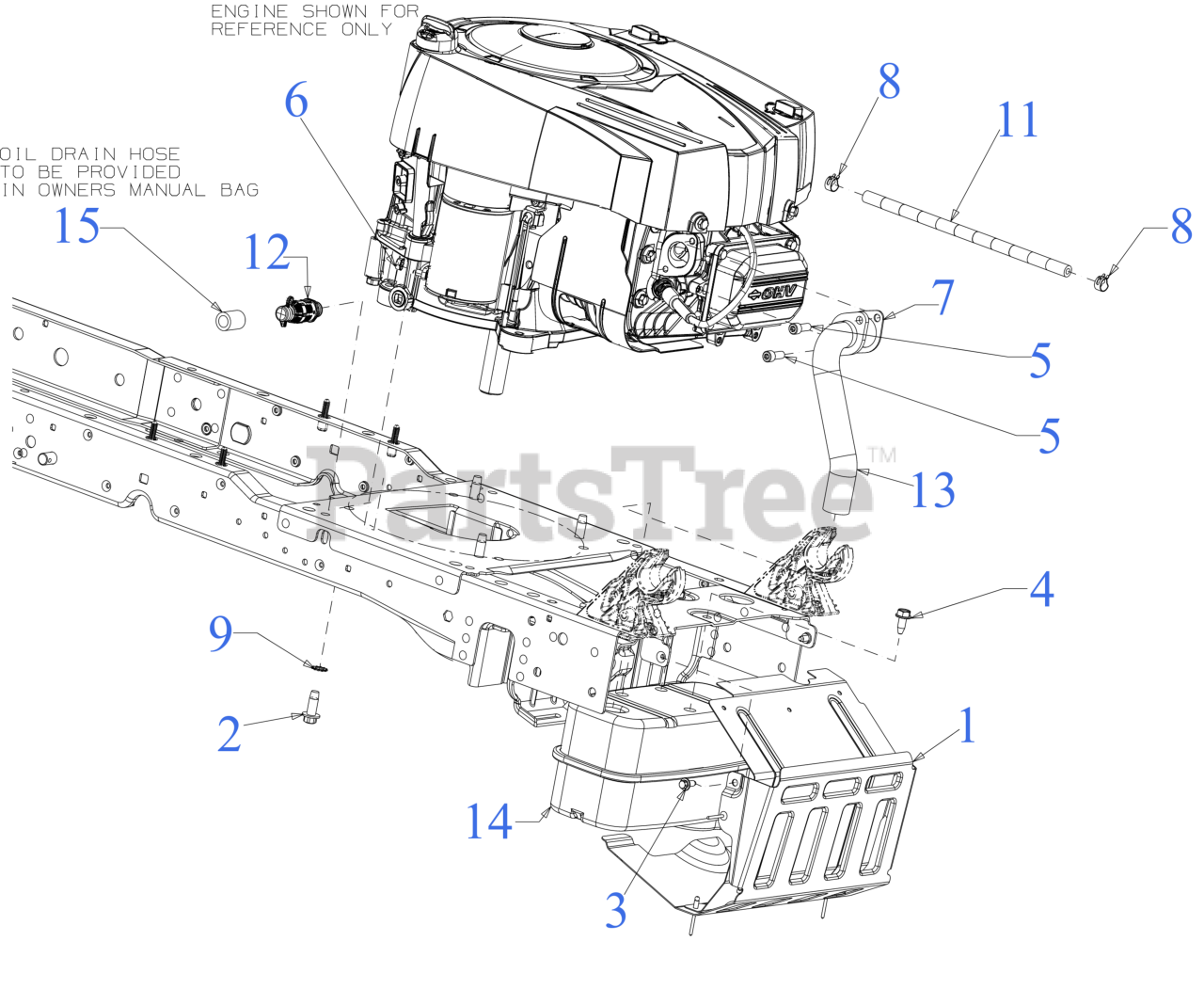

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 983-05142A

MUFFLER SHIELD ASSEMBLY

$81.99

$

In Stock, Qty 5

0

2

Troy-Bilt 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

4

Troy-Bilt 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1314A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

7

Troy-Bilt BS-692236

EXHAUST GASKET

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 751-10349-16

FUEL HOSE LOW PERMEATION 16"

$19.99

$

In Stock, Qty 11

0

12

Troy-Bilt 951-10517A

OIL DRAIN VALVE

$24.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 751-14477

EXHAUST PIPE (B&S) (SINGLE)

$50.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 951-14504D

EXHAUST MUFFLER (SINGLE)

$74.99

$

In Stock, Qty 8

0

15

Troy-Bilt 751-3141-14

DRAIN HOSE 14''

$11.99

$

In Stock, Qty 7

0

Troy-Bilt 490-000-C059

Cub Cadet 5W30 Engine Oil 20OZ

$9.99

$

In Stock, only 1 left!

0
