13AL795T057 - Brute Lawn Tractor (2010) (Walmart) Hood, Grille & Dash Parts Diagram

Lawn Tractor

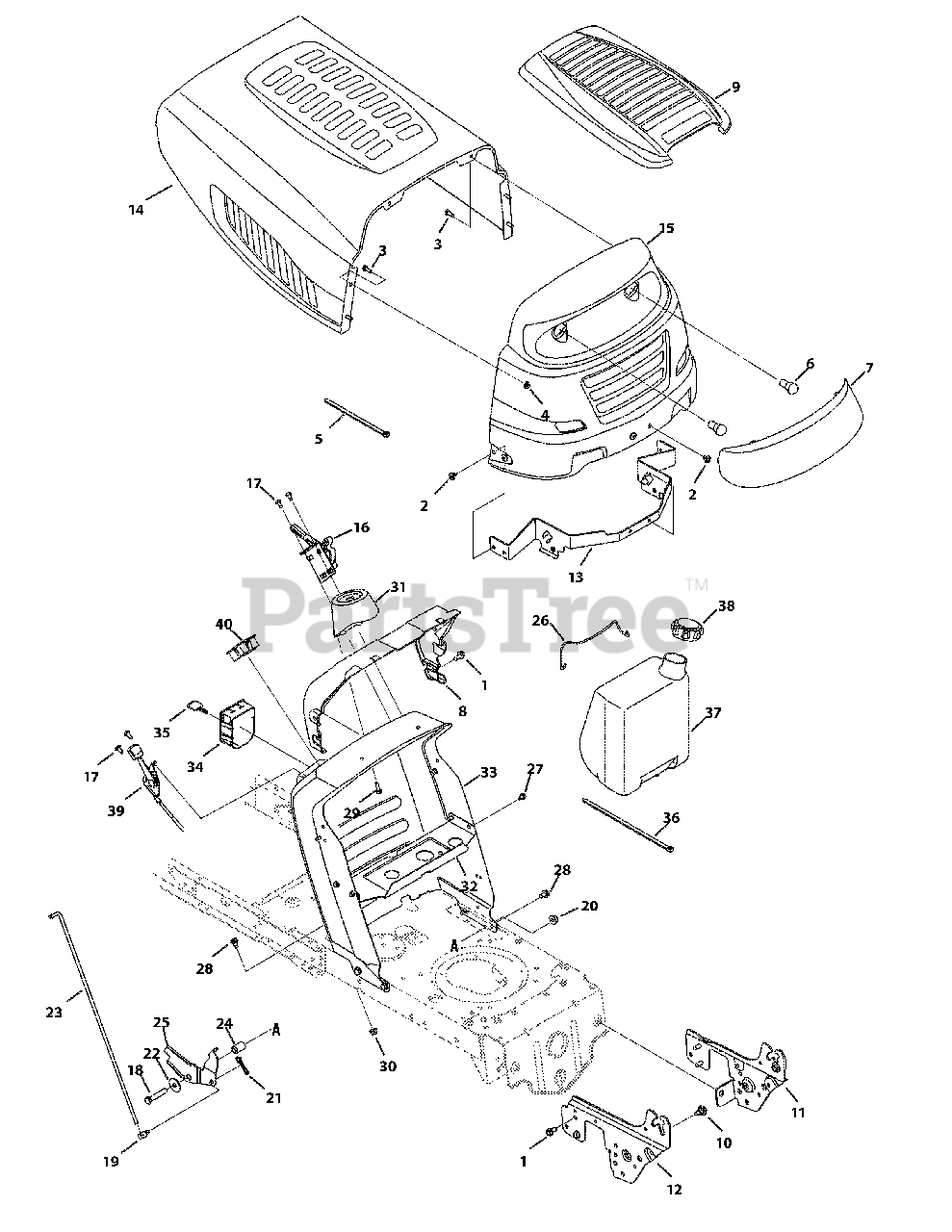

Hood, Grille & Dash Parts Diagram

  • Title

1

MTD 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Hex Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flanglock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-0963

Miniature lamp 12V socket

$7.49

$

In Stock, only 3 left!

0

7

MTD 731-04949A

Grill Lens

$26.99

$

In Stock, only 1 left!

0

8

MTD 731-05078C

Dash Collar

$18.99

$

In Stock, only 2 left!

0

9

MTD 731-05522A

Hood cover

Note: If Equipped

$49.99

$

Usually ships in 3-6 days

0

10

MTD 738-04091A

Shoulder Screw .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0637

Suppport Bracket LH

$40.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0637

Suppport Bracket RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 783-05454-0637

Hood pivot bracket

$31.99

$

Usually ships in 3-6 days

0

14

MTD 783-05683-0662

Hood - 5 Style - Grey

$171.99

$

Usually ships in 3-6 days

0

14

MTD 783-05683-0691

Hood - 5 Style - Black Jack

$159.99

$

Usually ships in 3-6 days

0

14

MTD 783-05684-0638

Hood - 1 Style - Red

$

$

Not available

15

MTD 783-05685-0662

Grill - Grey
(Superseded to 783-05685A-0662)

$140.99

$

Usually ships in 3-6 days

0

15

MTD 783-05685-0691

Grill - Black Jack
(Superseded to 783-05685A-0691)

$130.99

$

In Stock, only 1 left!

0

15

MTD 783-05685-0638

Grill - Red
(Superseded to 783-05685A-0638)

$140.99

$

Usually ships in 3-6 days

0

16

MTD 983-04226

Hydro Control Assembly

$21.99

$

Usually ships in 3-6 days

0

17

MTD 710-04483

Screw 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

18

MTD 710-3144

Hex Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0736

Ferrule Adjust

$13.99

$

In Stock, only 2 left!

0

20

MTD 712-04065

Flang lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

22

MTD 936-0133

Flat Washer .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

23

MTD 747-04430

Control Rod, Speed Selector

$21.99

$

Usually ships in 3-6 days

0

24

MTD 750-04465

Flang Spacer .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

25

MTD 783-04862

Transmission Speed Latch

$

$

Not available

26

MTD 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 14

0

27

MTD 710-0599

Hex Screw Washer 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0895

Hex Screw 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

30

MTD 712-04063

Flanglock Nut 5/16-18

$3.99

$

In Stock, only 4 left!

0

31

MTD 731-04945

Support Shaft

$18.99

$

In Stock, only 1 left!

0

32

MTD 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

33

MTD 783-04892B-0691

Dash, RMC - Black Jack

$

$

Not available

33

MTD 783-04892B-0637

Dash, RMC - Powder Black

$139.99

$

Usually ships in 3-6 days

0

33

MTD 983-04889B-0637

Dash, RMC/Amp Meter/Choke
(Superseded to 983-04889C-0637)

$103.99

$

Usually ships in 3-6 days

0

34

MTD 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

MTD 925-1745

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

37

MTD 751-0555B

Fuel Tank, 1.5 Gallons
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

38

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

39

MTD 746-04364

Throttle/Choke Control Cable

$48.99

$

In Stock, only 3 left!

0

40

MTD 925-04156

Ammeter Monitor Indicator

Note: If Equipped

$29.99

$

In Stock, only 1 left!

0

MTD 925-04432D

Harness, LT-5, RMC,Dual
(Superseded to 925-04432M)

Note: Not Shown

$143.99

$

Usually ships in 3-6 days

0

MTD 725-04479D

Harness, LT-5, Mn Ammeter., RMC, Kohler
(Superseded to 925-04432K)

Note: Not Shown

$143.99

$

Usually ships in 3-6 days

0

MTD 725-04469

Harness, Jmpr., Ammeter

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0
