13AL795S004 - MTD Gold Lawn Tractor (2016) Hood & Grill Parts Diagram

Gold Lawn Tractor

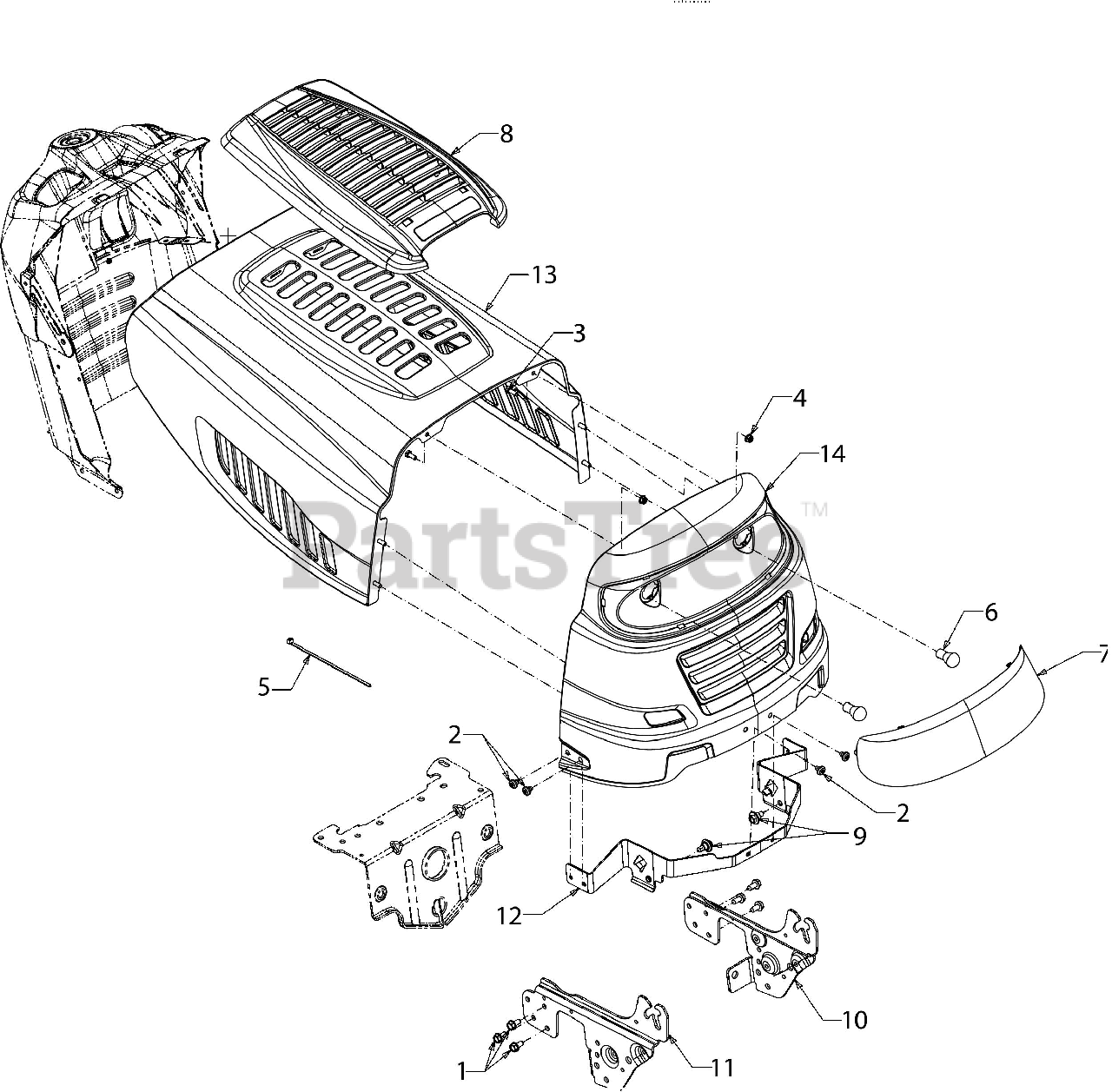

Hood & Grill Parts Diagram

  • Title
1

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

SCREW 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, Qty 5

0

7

MTD 731-04949A

GRILL LENS

$26.99

$

In Stock, only 3 left!

0

8

MTD 731-05522A

HOOD COVER

$49.99

$

Usually ships in 3-6 days

0

9

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

10

MTD 783-05327B-0691

SUPPORT BRACKET (LH)
(Superseded to 783-05327B-0637)

$40.99

$

Usually ships in 3-6 days

0

11

MTD 783-05328A-0691

SUPPORT BRACKET (RH)
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

12

MTD 783-05454-0637

HOOD PIVOT BRACKET

$31.99

$

Usually ships in 3-6 days

0

13

MTD 783-05683-0662

HOOD-5-STYLE

$171.99

$

Usually ships in 3-6 days

0

14

MTD 783-05685A-0662

GRILLE-1 STYLE

$140.99

$

Usually ships in 3-6 days

0
