13AL795S004 - MTD Gold Lawn Tractor (2015) Hood Parts Diagram

Gold Lawn Tractor

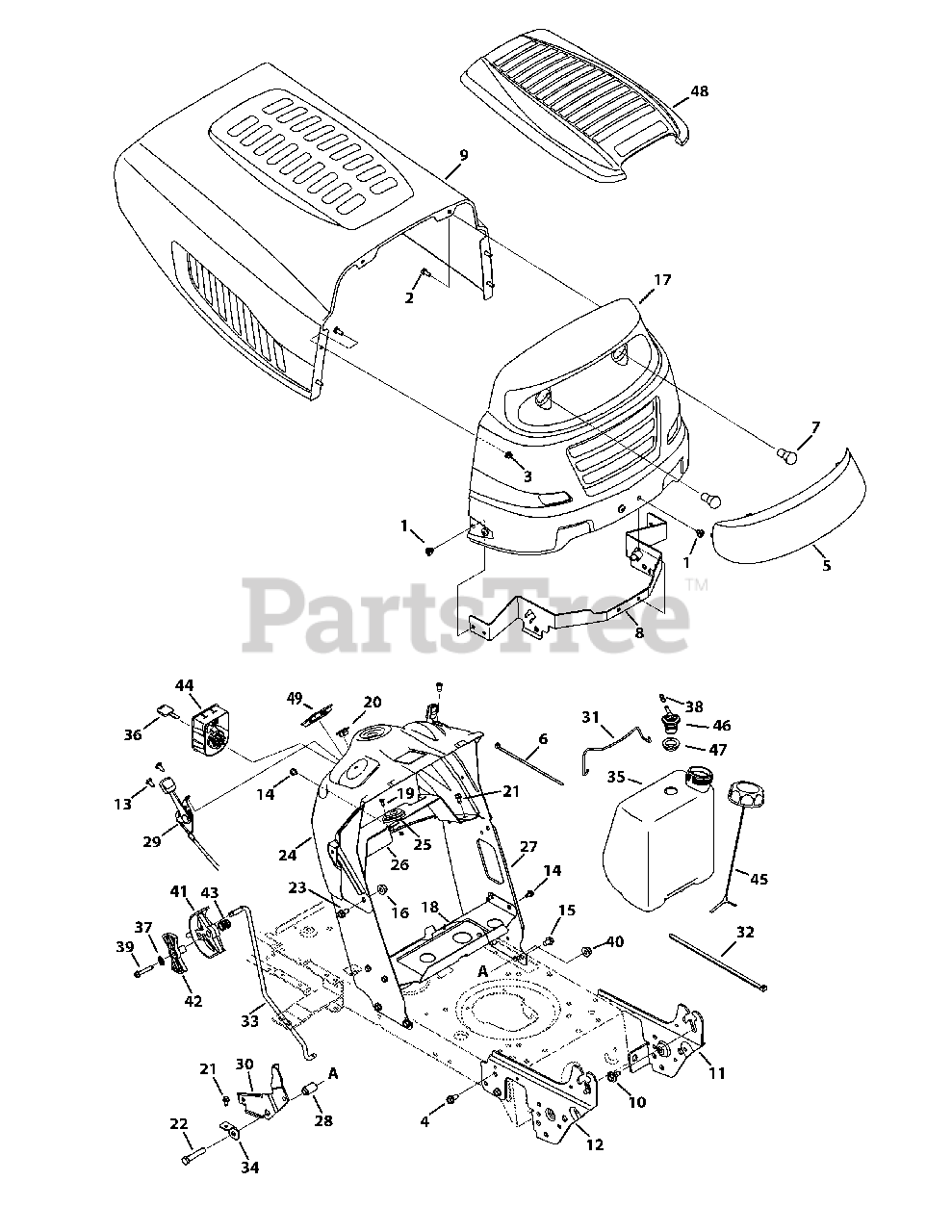

Hood Parts Diagram

  • Title

1

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

2

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-04949A

Grill Lens

$26.99

$

Usually ships in 3-6 days

0

6

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-0963

Lamp

$7.49

$

In Stock, only 1 left!

0

8

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

9

MTD 783-05683-0662

Hood

$171.99

$

Usually ships in 3-6 days

0

10

MTD 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0691

Left Support Pivot Bracket
(Superseded to 783-05327B-0637)

$40.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0691

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

14

MTD 710-05070A

Screw, 1/4-20 x .500

$6.99

$

In Stock, Qty 7

0

15

MTD 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 783-05685A-0662

Grill

$140.99

$

Usually ships in 3-6 days

0

18

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

19

MTD 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

20

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

21

MTD 710-1652

Tap Screw, 1/4-20, 0.625

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

24

MTD 931-07770A

Dash, Upper

$45.99

$

Usually ships in 3-6 days

0

25

MTD 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 9

0

26

MTD 783-06785C-0691

Bracket, Steering Support

$8.99

$

Usually ships in 3-6 days

0

27

MTD 783-06811D-0691

Dash, Lower
(Superseded to 783-06811F-0637)

$53.99

$

Usually ships in 3-6 days

0

28

MTD 750-04465C

Flange Spacer, .390 x .671 x 1.095

$4.49

$

Usually ships in 3-6 days

0

29

MTD 746-04367

Throttle/Choke Cable
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

30

MTD 683-04766-0637

Transmission Speed Latch, RMC

$12.99

$

Usually ships in 3-6 days

0

31

MTD 683-04448-0637

Battery Assembly Rod

$10.99

$

In Stock, Qty 14

0

32

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

33

MTD 747-05398

Speed Control Rod

$11.99

$

In Stock, only 1 left!

0

34

MTD 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

35

MTD 951-04304

1.36 Gallon Fuel Tank
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

36

MTD 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

37

MTD 736-3006

Lock Washer, 1/4

$6.49

$

Usually ships in 3-6 days

0

38

MTD 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

39

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

40

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

MTD 731-07885B

Shift Lever

$11.99

$

In Stock, only 3 left!

0

42

MTD 731-07966A

Index Control

$6.49

$

In Stock, only 1 left!

0

43

MTD 732-04877

Compr. Spring, .72 OD x .78

$4.49

$

In Stock, only 2 left!

0

44

MTD 925-06119A

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

45

MTD 951-12179B

Fuel Cap, 2.25"
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

46

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

47

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0

48

MTD 731-05522A

Hood cover

$49.99

$

Usually ships in 3-6 days

0

49

MTD 731-05232

Ammeter Plug

$8.49

$

In Stock, only 2 left!

0

MTD 925-04432H

Harness, LT-5, RMC,Dual
(Superseded to 925-04432M)

Note: (not shown)

$143.99

$

Usually ships in 3-6 days

0

RMC® (Reverse Mowing Control)

$

$

Not available
