13AL78BSA23 - Troy-Bilt Bronco 42" Lawn Tractor, Auto (2023) Controls Parts Diagram

Bronco 42" Lawn Tractor, Auto

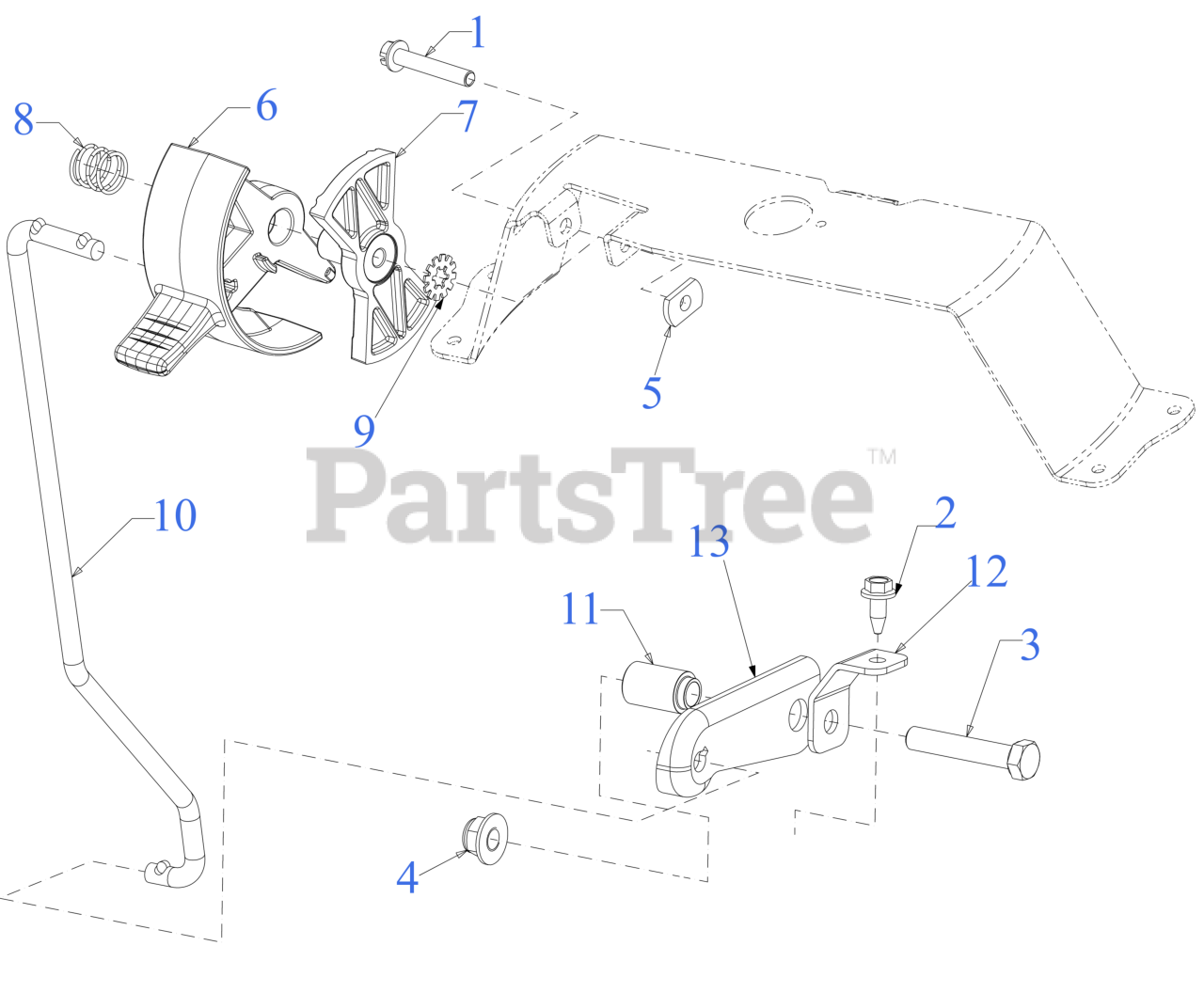

Controls Parts Diagram

  • Title

1

Troy-Bilt 710-04860C

HEX FLANGE BOLT 1/4-20 x 1.5

$3.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-3144

SCREW 3/8-16 x 2.0 GR5

Note: (8/81/23 & Before)

$4.49

$

In Stock, Qty 15

0

2

Troy-Bilt 710-1652

SCREW 1/4-20X.625

Note: (8/81/23 & After)

$4.49

$

In Stock, Qty 17

0

3

Troy-Bilt 710-3184A

SCREW 3/8-16 x 2 GR5

$6.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-0414

FLAT NUT

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 731-07885B

SHIFT LEVER

$11.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 731-07966A

PARK INDEX CONTROL

$6.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 732-04877

COMPRESSION SPRING

$4.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 736-3006

WASHER

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 747-05398

SPEED CONTROL ROD

$11.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 750-04465C

FLANGE SPACER

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-06823

SPEED LATCH TAB

$17.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 783-06991-0637

LATCH SPEED BRACKET

$9.49

$

In Stock, only 1 left!

0
