13AL771T004 - MTD Gold Lawn Tractor (2010) Mower Deck 46-Inch Parts Diagram

Gold Lawn Tractor

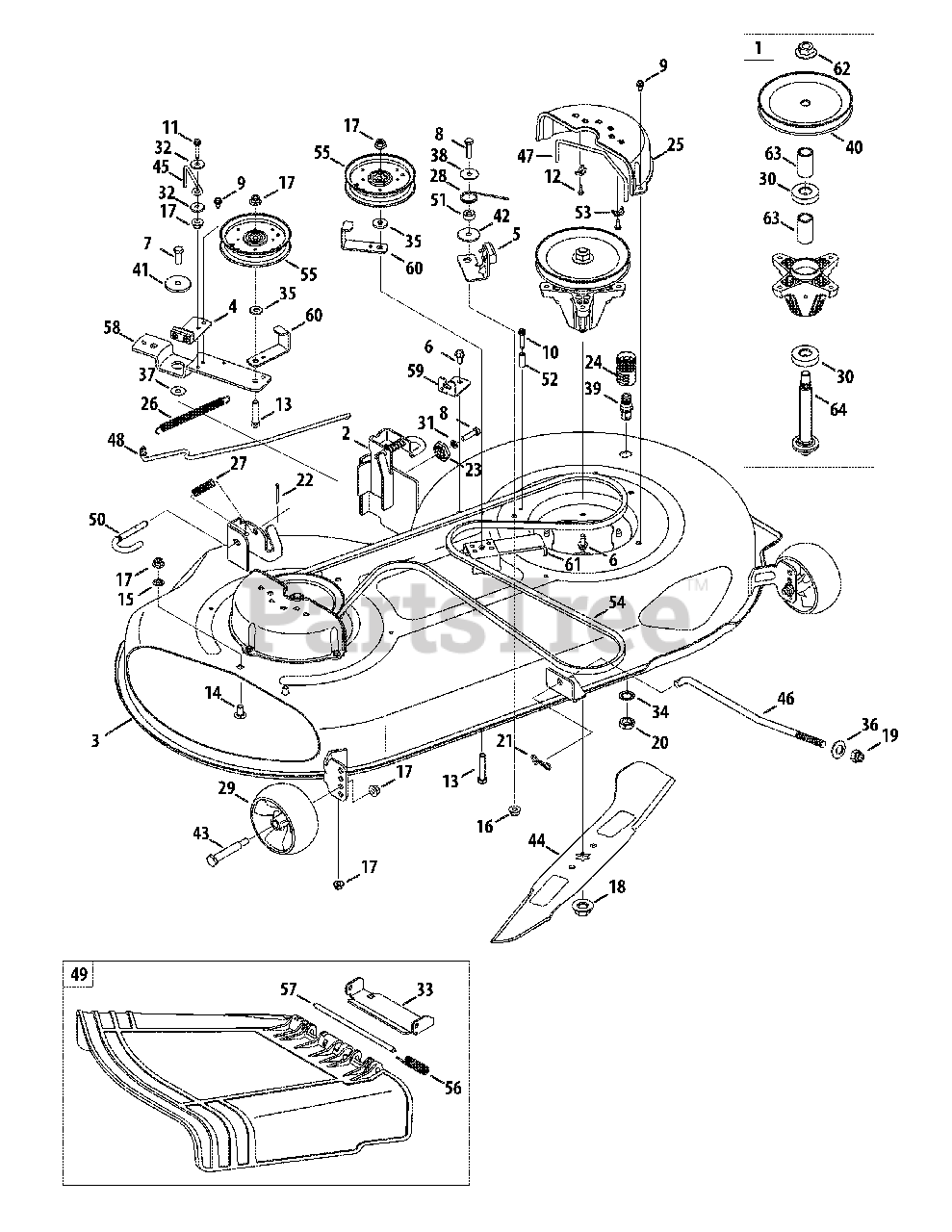

Mower Deck 46-Inch Parts Diagram

  • Title

1

MTD 918-04636A

Spindle Assembly, Pul 6.93 Dia
(Superseded to 918-04865A)

$147.99

$

In Stock, only 2 left!

0

2

MTD 683-0254B-0691

Bracket Assembly, Deck Hanger, LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 683-04578-0691

Deck Assembly, Offset, 46"
(Superseded to 983-04578B)

$410.99

$

Usually ships in 3-6 days

0

4

MTD 983-04511

Brake Assembly, Deck, 42/46

$63.99

$

In Stock, Qty 20+

0

5

MTD 983-04525

Brake Assembly, Deck, 46"

$45.99

$

In Stock, Qty 20+

0

6

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0778

Screw, Self-tapping, 1/4-20, 1.500

$4.49

$

In Stock, only 3 left!

0

11

MTD 710-0809

Screw, Self-tapping, 1/4-20, 1.250

$6.99

$

In Stock, Qty 19

0

12

MTD 710-1003

Screw, B, #10-16, 0.625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

13

MTD 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 7

0

14

MTD 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

Nut, Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

MTD 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

MTD 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

22

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

23

MTD 917-04074

Gear, Deck Adjustment

$13.99

$

In Stock, Qty 20+

0

24

MTD 921-04041

Adapter, Water Port

$23.99

$

In Stock, Qty 20+

0

25

MTD 731-06496

Belt Cover, Universal

$23.99

$

In Stock, Qty 20+

0

26

MTD 932-0384

Spring, Extension, .62 x 6.12

$14.99

$

In Stock, only 4 left!

0

27

MTD 732-04652

Spring, Compression, .535 x 1.751

$6.99

$

In Stock, only 3 left!

0

28

MTD 732-04727

Spring, Torsion, .992 ID x 1.17 OD

$3.99

$

Usually ships in 3-6 days

0

29

MTD 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

30

MTD 941-0919

Bearing, Ball, .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

31

MTD 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

32

MTD 936-0176

Washer, Flat, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

33

MTD 783-06074

Bracket, Chute, 46
(Superseded to 783-06074A)

$32.99

$

In Stock, only 1 left!

0

34

MTD 736-0225

Washer, Lock, 5/8, Int Tooth

$4.49

$

In Stock, only 2 left!

0

35

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

36

MTD 748-04069

Deck Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

37

MTD 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

38

MTD 736-0362

Washer, Flat, .330 x 1.25 x .06, Ht

$4.49

$

In Stock, Qty 9

0

39

MTD 737-04003D

Deck Port, Water

$23.99

$

In Stock, Qty 6

0

40

MTD 756-04356

Pulley, Deck, 6.93 Dia

$37.99

$

In Stock, only 1 left!

0

41

MTD 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

42

MTD 738-04166

Spacer, Shoulder, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

43

MTD 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

44

MTD 942-04290

Blade, Cut, 23.25" 2-In-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

45

MTD 747-04530

Rod, Belt Keepr, 42 Idler

$7.49

$

In Stock, Qty 20+

0

46

MTD 747-05141A

Rod, Lift, Deck
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 17

0

47

MTD 747-05011

Rod, Keeper, Belt

$10.99

$

In Stock, Qty 20+

0

48

MTD 747-05052

Rod, Control, Brake 46"
(Superseded to 747-05052A)

$16.99

$

In Stock, Qty 16

0

49

MTD 631-04288

Chute Assembly, 46" Offset
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

50

MTD 747-1116

Rod, Deck Release

$12.99

$

Usually ships in 3-6 days

0

51

MTD 750-0258

Spacer, .315 x .750 x .375

$11.99

$

In Stock, only 1 left!

0

52

MTD 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

53

MTD 751B221535

Clamp, Casing

$10.99

$

In Stock, Qty 10

0

54

MTD 954-04219

Belt, V-Type, A-Sec

$50.99

$

In Stock, Qty 20+

0

55

MTD 756-04129B

Pulley, Idler, 4.25"Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

56

MTD 732-04372

Spring, Torsion, .44 I.D. x 2.0

$10.99

$

In Stock, Qty 9

0

57

MTD 711-04847A

Pin, Hinge, 7.96
(Superseded to 711-04847B)

$8.99

$

In Stock, Qty 8

0

58

MTD 783-05946

Bracket, Idler, Pivot, 46

$38.99

$

In Stock, Qty 13

0

59

MTD 783-06243-0637

Bracket, Cable, Deck Engagement

$10.99

$

In Stock, only 2 left!

0

60

MTD 783-06368-0637

Bracket, Guard, Belt, 4.25 Pulley
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

61

MTD 783-06643-0637

Bracket, Support, Deck Idler

$9.49

$

In Stock, only 1 left!

0

62

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

63

MTD 750-04936

Spacer, .792 x 1.060 x 1.860 Lg

$6.99

$

In Stock, Qty 20+

0

64

MTD 738-1186A

Shaft, Spindle, 6.11 Lg.

$49.99

$

In Stock, Qty 14
