13AL60RG544 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008) CYLINDER ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

Lawn Tractor

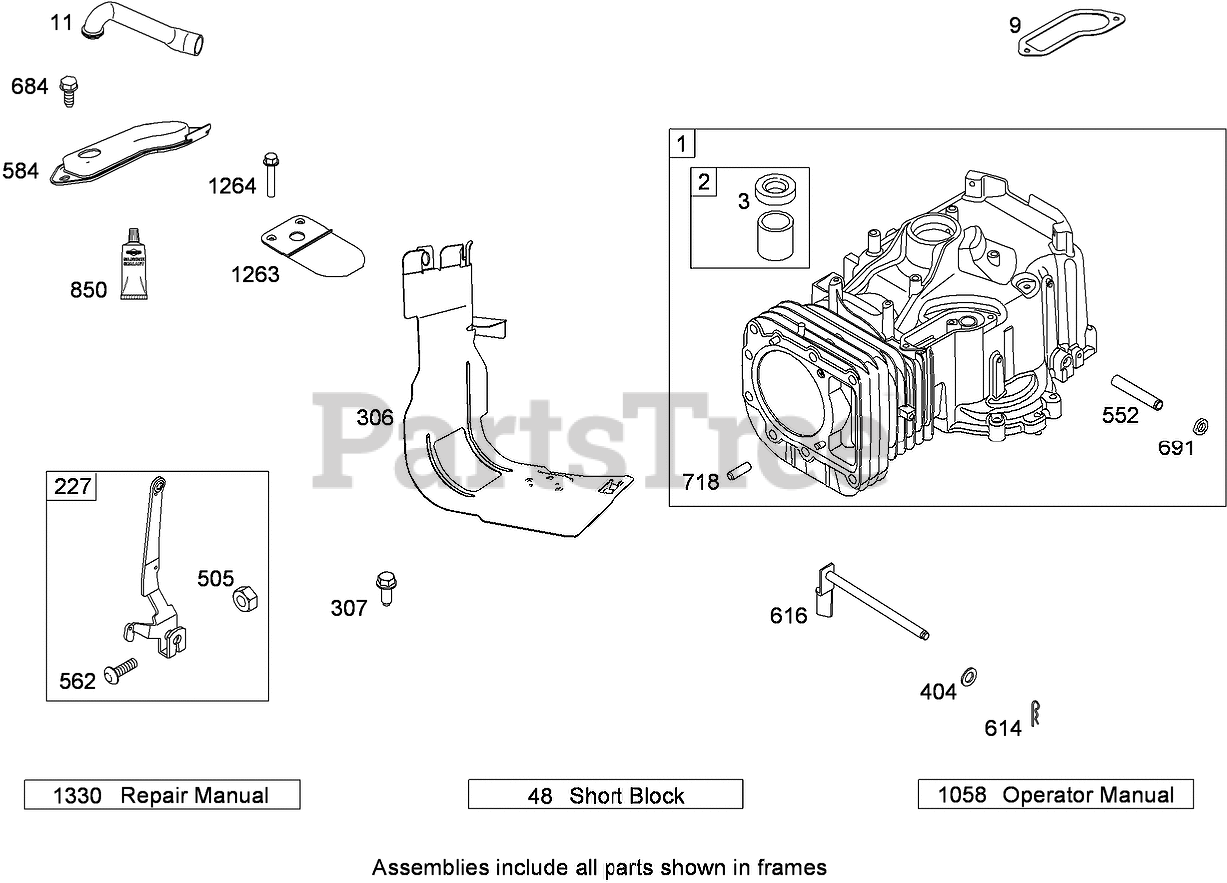

CYLINDER ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

  • Title

1

Briggs & Stratton 794128

Cylinder Assembly
(Superseded to 591465)

Note: Obtain parts from www.briggsandstratton.com

$677.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit (Magneto Side)
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, Qty 7

0

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

9

Briggs & Stratton 697109

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 794683

Tube-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 795446

Short Block

Note: Obtain parts from www.briggsandstratton.com

$675.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691374

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 2 left!

0

306

Briggs & Stratton 794953

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw (Cylinder Shield)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

404

Briggs & Stratton 691691

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

552

Briggs & Stratton 697144

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

584

Briggs & Stratton 794682

Cover-Passage, Breather (Use With Liquid Sealant, Ref 850)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 6

0

614

Briggs & Stratton 691620

Pin-Cotter

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

684

Briggs & Stratton 697157

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 7

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.99

$

In Stock, Qty 7

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

Sealant-Liquid

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, Qty 20+

0

1058

Briggs & Stratton 276352

Operator Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1263

Briggs & Stratton 697124

Reed-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

Screw (Breather Reed)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 273521

Repair Manual

Note: Obtain parts from www.briggsandstratton.com

$34.99

$

In Stock, only 1 left!
