13AL60RG048 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008) CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

Lawn Tractor

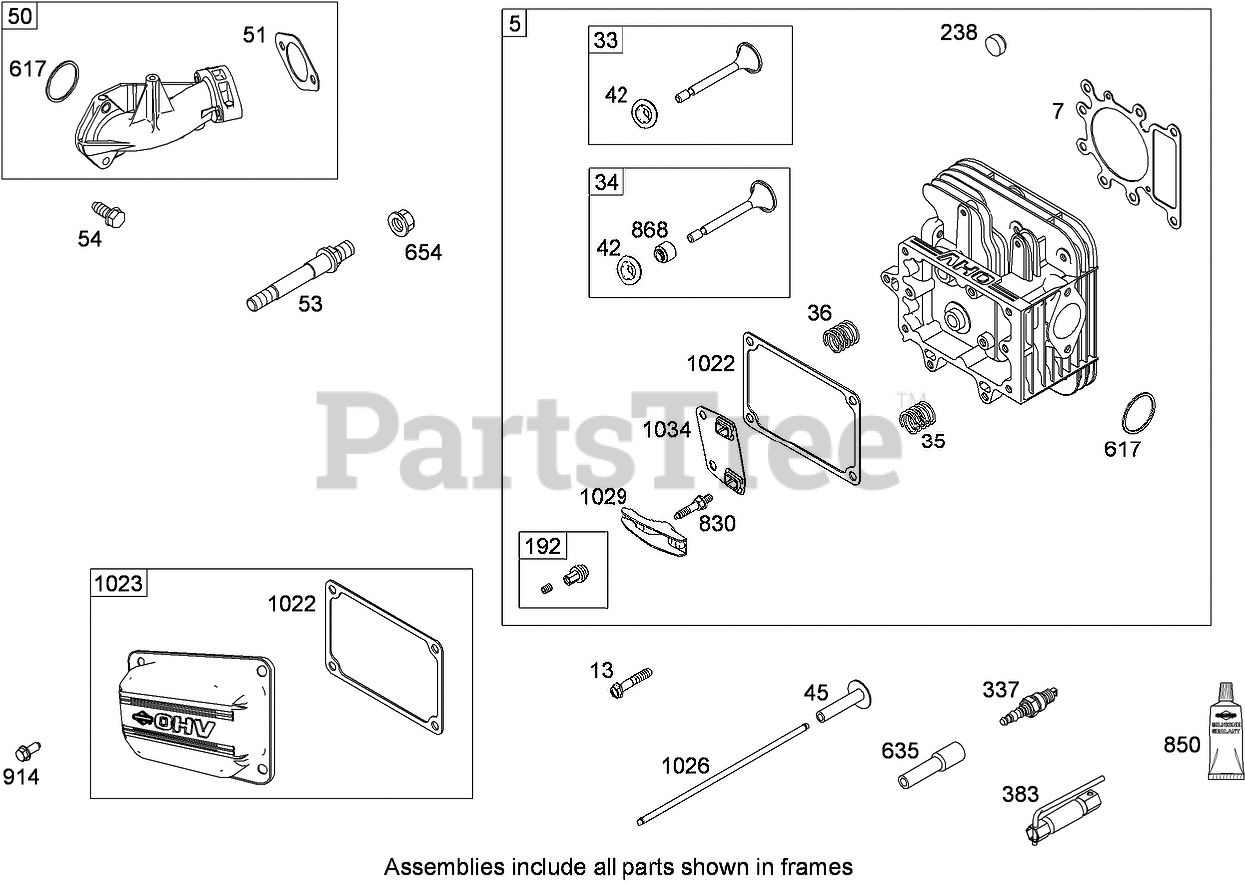

CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

  • Title

5

Briggs & Stratton 796005

Head-Cylinder
(Superseded to 796026)

Note: Obtain parts from www.briggsandstratton.com

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 794114

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 794114

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$20.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 794114

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$20.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 793988

Screw (Cylinder Head)
(Superseded to 592244)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

33

Toro 792688

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

34

Briggs & Stratton 791935

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691279

Spring-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 10

0

36

Briggs & Stratton 691279

Spring-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 10

0

42

Briggs & Stratton 499586

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 690193

Manifold-Intake
(Superseded to 592842)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 690227

Stud (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

54

Briggs & Stratton 691148

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 691986

Adjustor-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 691843

Cap-Valve

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

337

Toro 491055s

Plug-Spark

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Toro 89838s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold) (Red)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold) (Red)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold) (Red)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, Qty 18

0

635

Briggs & Stratton 691909

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

654

Briggs & Stratton 690958

Nut (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

830

Briggs & Stratton 691095

Stud-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

850

Briggs & Stratton 100106

Sealant-Liquid (Use To Install Rocker Cover)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$10.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 697551

Screw (Rocker Cover)
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

1022

Toro 272475s

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1022

Toro 272475s

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

1022

Toro 272475s

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1023

Briggs & Stratton 791079

Cover-Rocker (Use With Liquid Sealant, Ref 850)
(Superseded to 797421)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 692003

Rod-Push (Intake)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 692011

Rod-Push (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 691751

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 690822

Guide-Rod, Push

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 2 left!

0
