13AL60RG048 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008) CRANKSHAFT AND PISTON/RING ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

Lawn Tractor

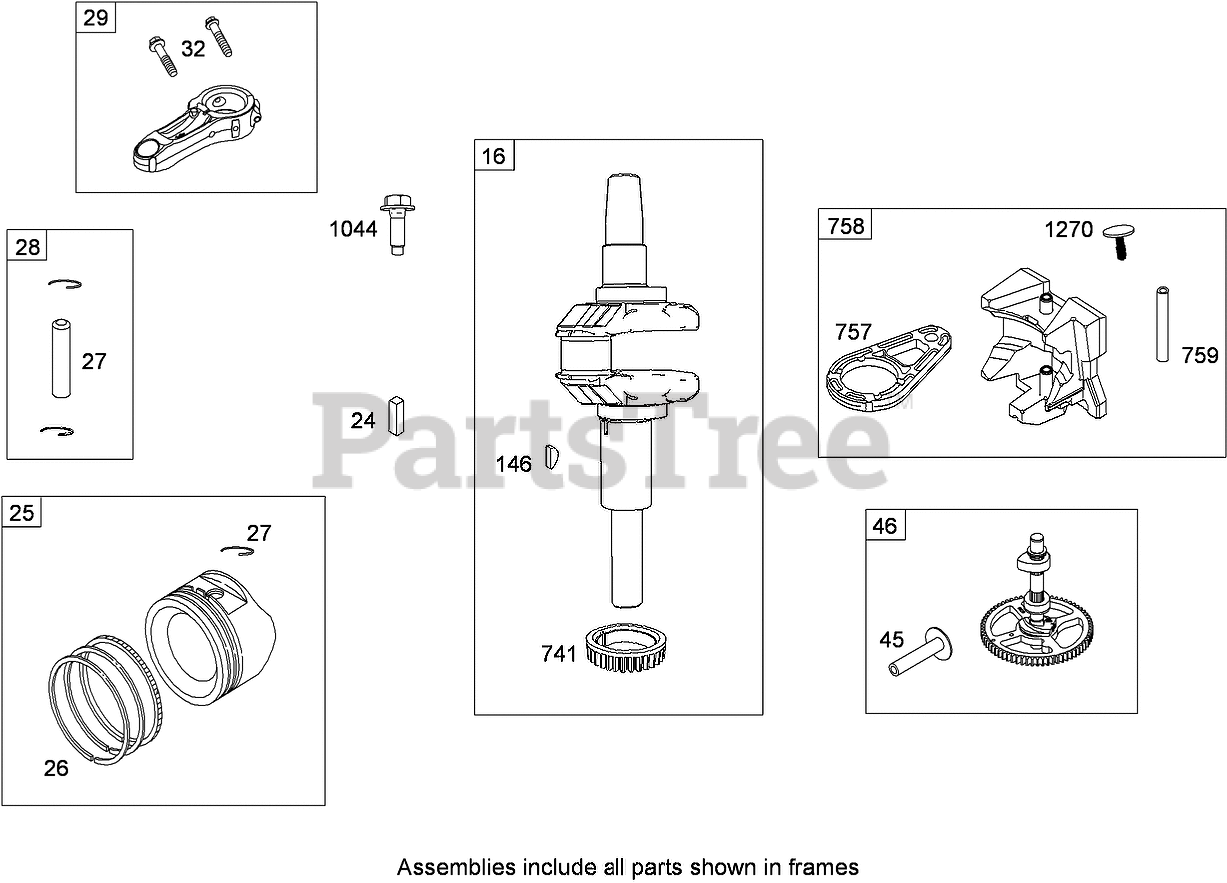

CRANKSHAFT AND PISTON/RING ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

  • Title

16

Briggs & Stratton 697127

Crankshaft
(Superseded to 595339)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 794124

Piston Asm (Standard)
(Superseded to 795858)

Note: Obtain parts from www.briggsandstratton.com

$112.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 794125

Piston Asm (.020 Oversize)
(Superseded to 795877)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

26

Briggs & Stratton 794126

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$52.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 794127

Ring Set (.020 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$71.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 794143

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 794122

Rod-Connecting

Note: Obtain parts from www.briggsandstratton.com

$78.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 791118

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

45

Briggs & Stratton 690564

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 793880

Camshaft
(Superseded to 84005207)

Note: Obtain parts from www.briggsandstratton.com

$96.99

$

In Stock, Qty 20+

0

146

Briggs & Stratton 691639

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 697128

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 793242

Link-Counterweight

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 4 left!

0

758

Briggs & Stratton 793763

Counterweight

Note: Obtain parts from www.briggsandstratton.com

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

Pin-Counterweight

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 698139

Screw (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

1270

Briggs & Stratton 793243

Plug-Counterweight, A V S

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0
