13AL60RG048 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008) CRANKCASE COVER/SUMP ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

Lawn Tractor

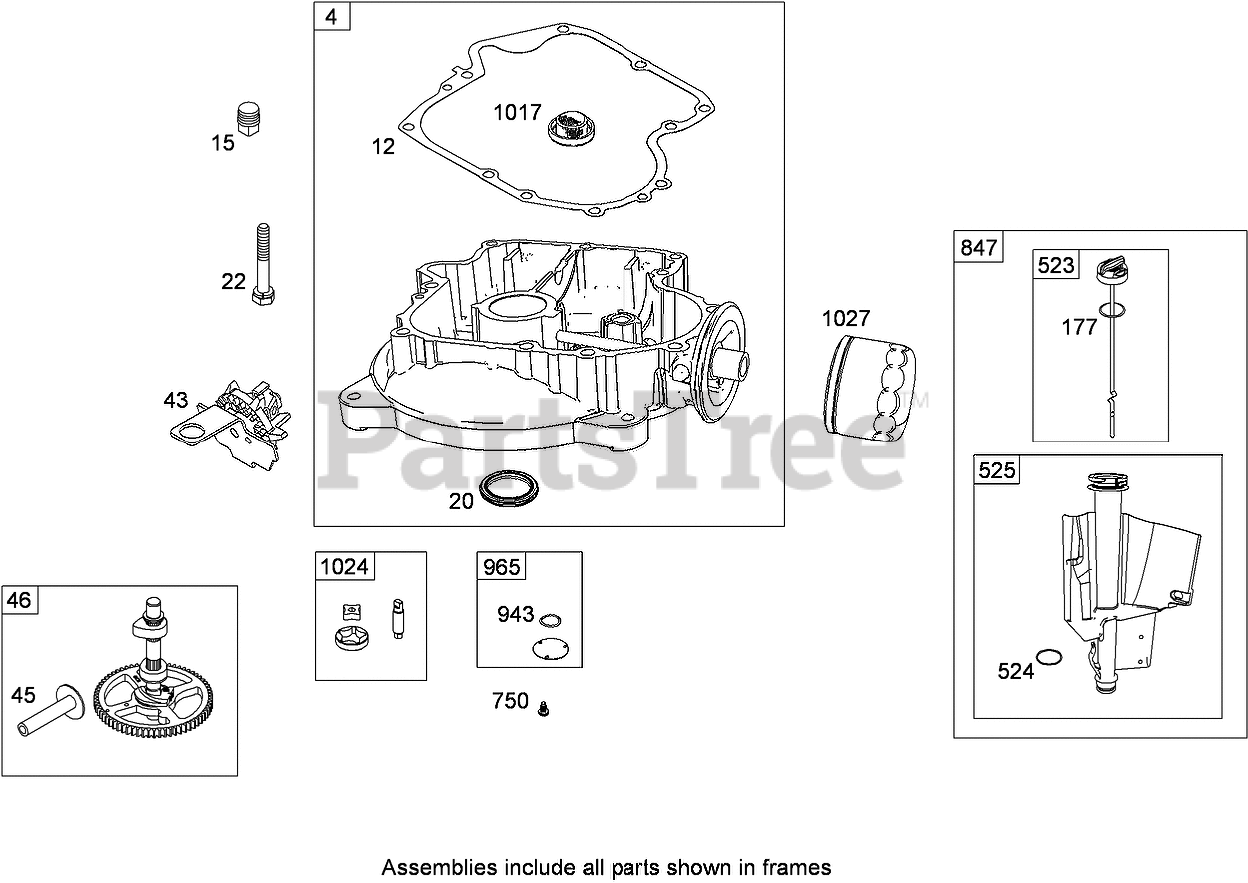

CRANKCASE COVER/SUMP ASSEMBLY BRIGGS AND STRATTON 331777-0946-B2 Parts Diagram

  • Title

4

Briggs & Stratton 795993

Sump-Engine
(Superseded to 592849)

Note: Obtain parts from www.briggsandstratton.com

$250.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 795387

Seal-Oil (PTO Side)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 795387

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw (Crankcase/Cover/Sump)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 691968

Slinger-Governor, Oil

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 793880

Camshaft
(Superseded to 84005207)

Note: Obtain parts from www.briggsandstratton.com

$96.99

$

In Stock, Qty 20+

0

177

Briggs & Stratton 691031

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

177

Briggs & Stratton 691031

Seal-O Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 20+

0

523

Briggs & Stratton 699908

Dipstick

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 691032

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

Seal-O Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 697184

Tube-Dipstick

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 790832

Screw (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

847

Briggs & Stratton 790442

Dipstick and Tube ASM

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

In Stock, only 1 left!

0

943

Briggs & Stratton 690589

Seal-O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring (Oil Pump Cover)

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 9

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1024

Briggs & Stratton 794644

Pump-Oil

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

1027

Toro 492932s

Filter-Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
