13AL606G730 - Huskee Lawn Tractor (2005) (Tractor Supply) Engine Accessories Parts Diagram

Lawn Tractor

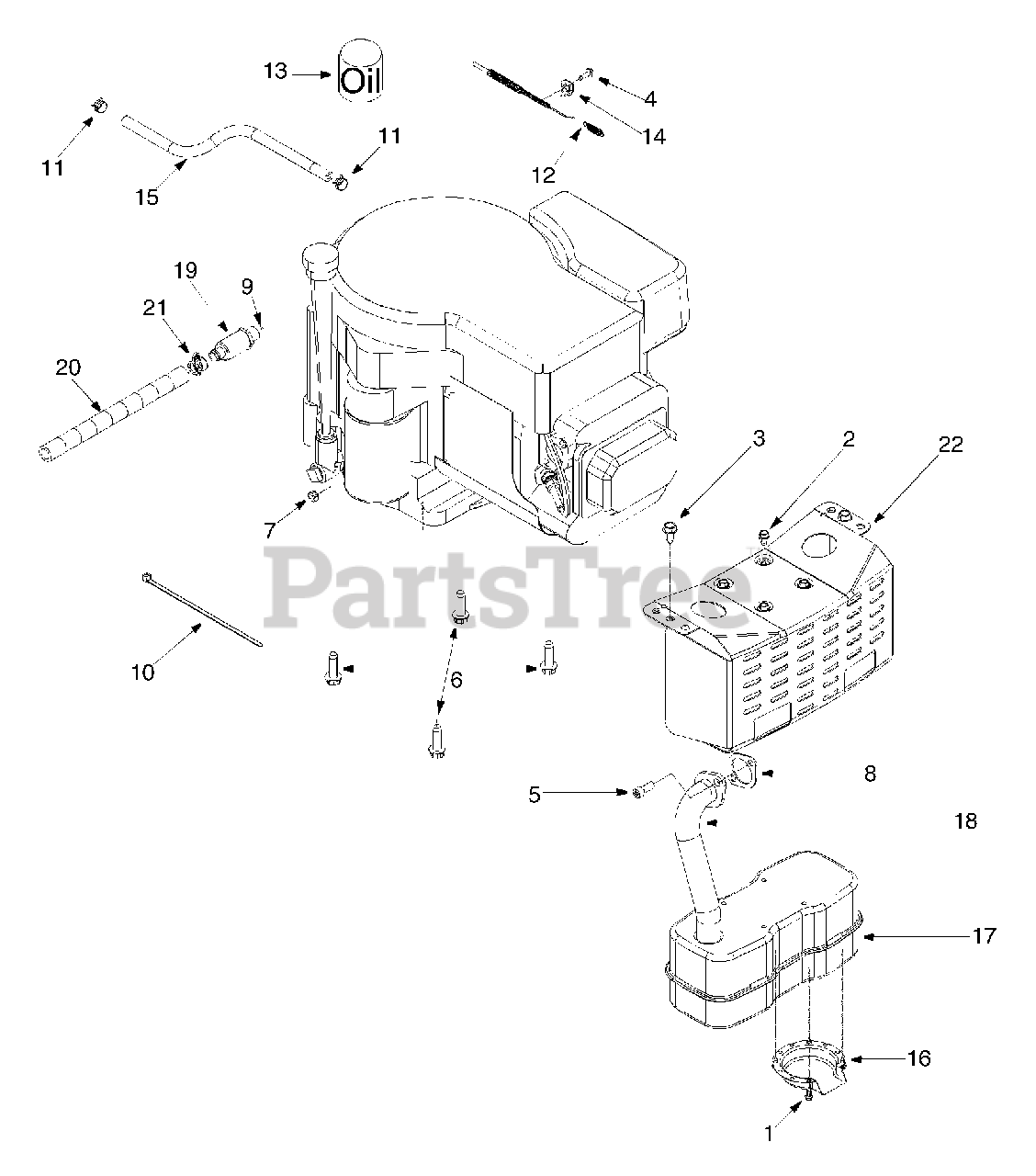

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

AB Screw 5/16-12 x 0.5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

T screw #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Hd Scr. 5/16-18 x.750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0271

Sems Nut

$4.49

$

In Stock, Qty 19

0

8

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

9

MTD 721-0331

Sealant: Loctite(TM)

$

$

Currently unavailable

10

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

12

MTD 732-0966

Extension Spring

$

$

Not available

13

MTD 737-0169

SAE 30W Oil

$

$

Currently unavailable

14

MTD 751B213146

Throttle Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

15

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

16

MTD 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

17

MTD 751-0617A

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

MTD 751-0619A

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

19

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

20

MTD 751-3141

OIl Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 6

0

21

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 13

0

22

MTD 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
